Page 9
800
AIR FILTER ACCESS
800
SERVICE ACCESS
TO ELECTRIC BOX
WATER CONNECTIONS
FILTER ACCESS PANEL
SERVICE
PANEL
CONSOLE
POSITION
ALTERNATIVE
CONSOLE
POSITION
AIR ON
AIR OFF
CONTROL PANEL
CONNECTION POINT
RED LAMP 12V
REMOTE CONTROL
PANEL LIVE
INDICATION

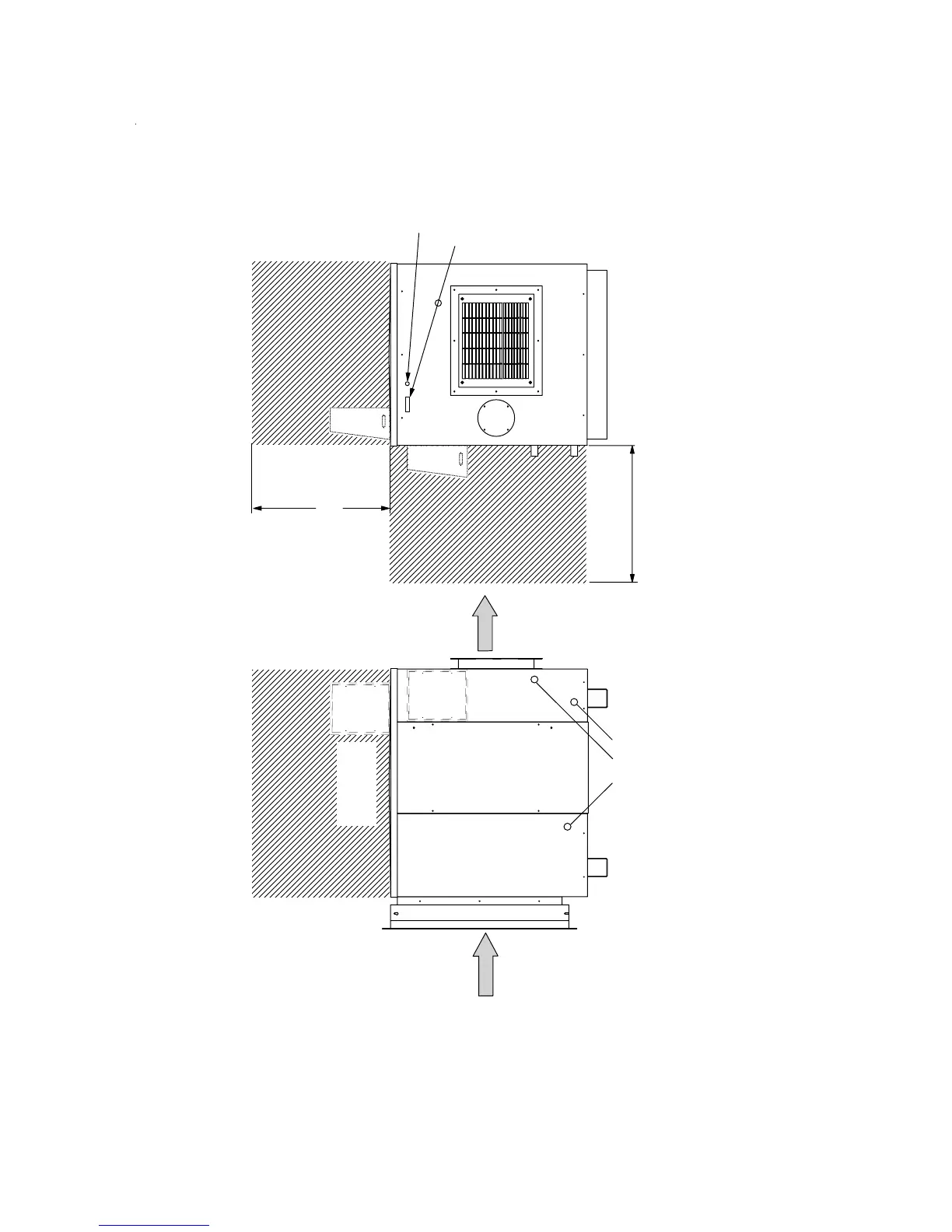

SITING, MACHINE LOCATION
NOTE:
If the optional flexible ducting flange is not used, due consideration to resonant noise through the duct work must
be made.
If little or no ducting is fitted it is possible to lower the top speed of the fan. With the machine isolated move the
white/black wire connected to terminal 18 to terminal 17 in the electric box. See diagram section 2.5.
