Page 10

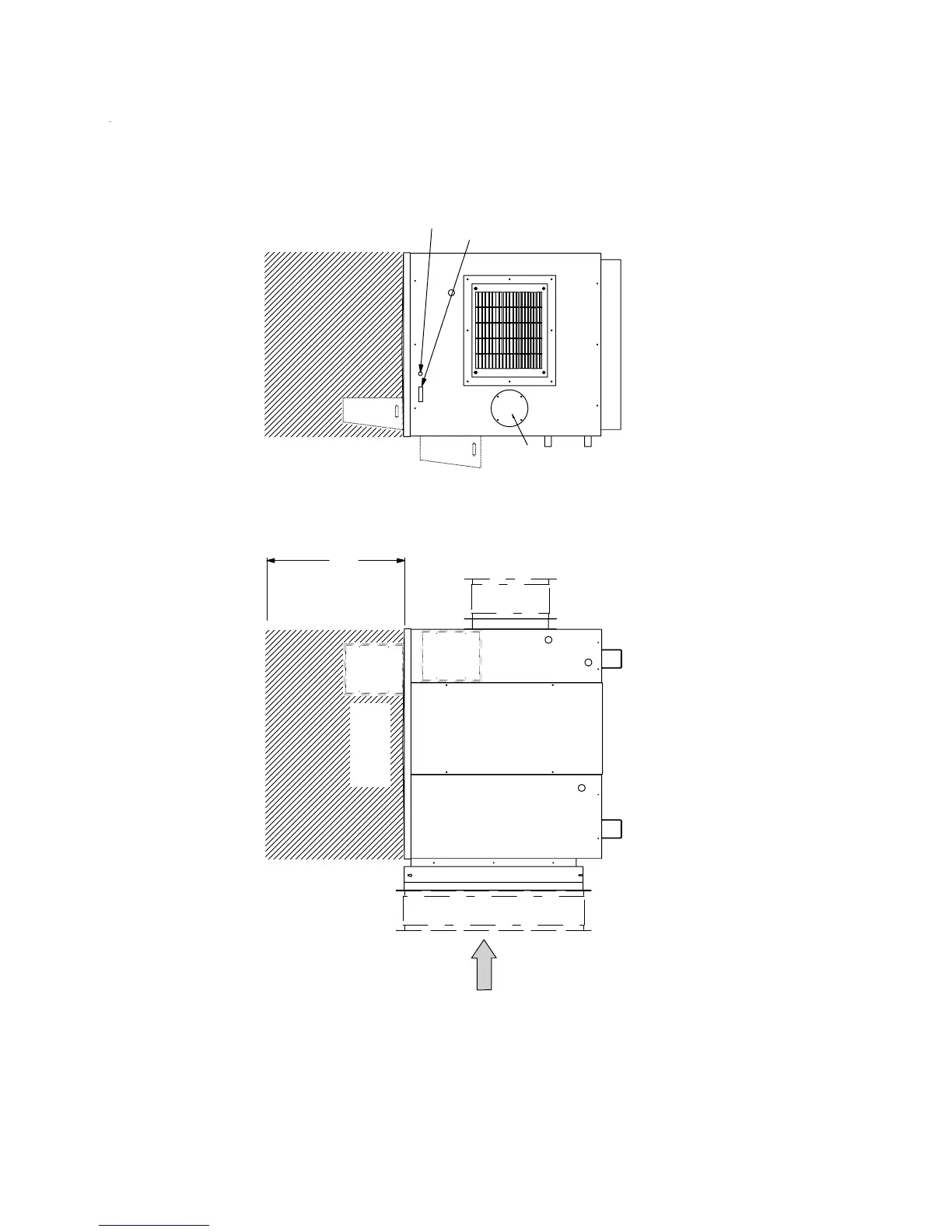

INSTALLATION WITH OPTIONAL FEATURES
OPTIONAL FLEXIBLE
DUCTING FLANGE
FILTER ACCESS PANEL
OPTIONAL FLEXIBLE
DUCTING FLANGE
SERVICE
PANEL
CONSOLE
POSITION
ALTERNATIVE
CONSOLE
POSITION
SERVICE
ACCESS TO ELECTRIC BOX
800
AIR ON
BLANKING PLATE
FOR OPTIONAL
FRESH AIR GRILLE
4 HOLES DIA 6 ON
125mm DIA.
CONTROL PANEL
CONNECTION POINT
RED LAMP 12V
REMOTE CONTROL
PANEL ON
INDICATION
Ensure duct work pressure drop does not exceed resistance given in data sheet.
If little or no ducting is fitted it is possible to lower the top speed of the fan. With the machine isolated move the
white/black wire connected to terminal 18 to terminal 17 in the electric box. See diagram section 2.5.
If unit is located in a plant room at pool hall air temperatures, any ambient air ducting must be heavily insulated.
Recommend fresh air/spring return dampers to be fitted to Fresh air ductwork for sub zero ambient applications in
case of power failure.
