Calorex aa300 - 3 Controls

Page 23
%
1 Power on
2 Power off
3 Power symbol
Power lamp Indicates presence of 12V electricity supply to the
console.
4 Fault lamp Check that the pool hall air and water flow through
the unit are within specified limits.
Check M.C.B.’s & pressure switches see note a
(also soft start overload if fitted) and push all to
reset.
Call for a service check if fault lamp stays on.
5 Defrost lamp Unit is temporarily defrosting evaporator machine
will automatically reset.
6 Dehumidification lamp Indicates that there is a demand for the unit to
dehumidify.

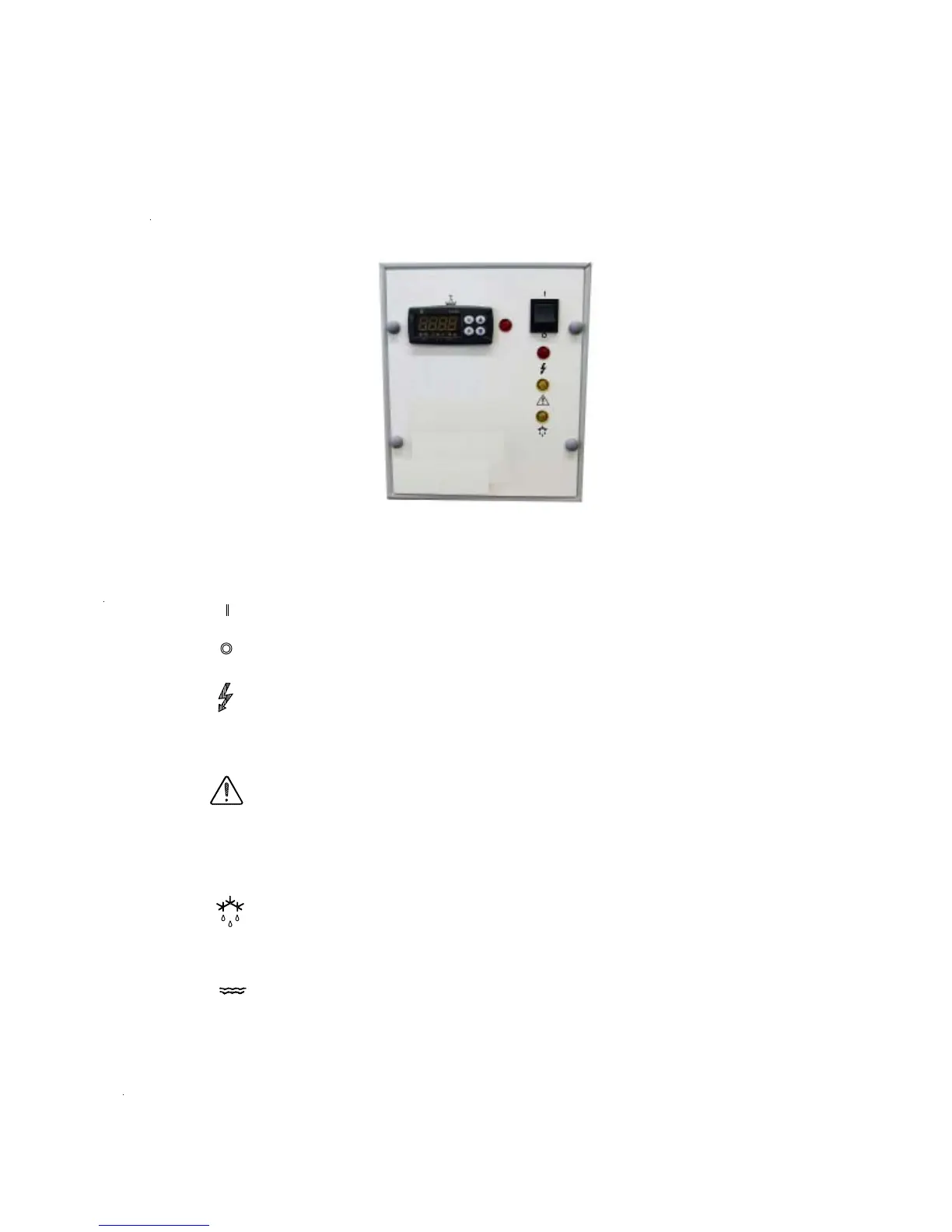

3.0 CONTROLS
STANDARD CONTROL PANEL MODULE (12V)
%
CONSOLE AA300
HUMIDITY DISPLAY
AND 6. DEHUMIDIFICATION
LAMP
1.
POWER ON/OFF SWITCH
2.
POWER LAMP
3.
4. FAULT LAMP
5. DEFROST LAMP
High & low pressure switches are mounted on a cross bracket fitted inside the fridge box
assemblies. Push the red button on each switch to reset.
Note A
