Interlock
All units have interlock circuit incorporated in control circuit, brought out
to two terminals. These terminals are shorted out for factory testing.
The interlock may be used to control e heat pump from a remote
location or a built in flow switch.
On site shorting loop is to be removed and two wires taken to pair of
volt free contacts in water pump starter/contactor/relay or flow switch
so at e heat pump cannot operate unless water pump is operating
(see figs 5 and 6).
RECOMMENDED ELECTRICAL INSTALLATION FOR CALOREX HEAT PUMP WITH SINGLE
PHASE WATER PUMP
Fig. 5
L
N
WATER PUMP MORE THAN
¾ HP SINGLE PHASE
SINGLE PHASE
SUPPLY TO SUIT
CAPACITY OF WATER
PUMP
L N
L N
L
N L
4 POLE N/O STARTER WITH
OVERLOAD AND 230V 50Hz COIL
RATED TO SUIT WATER PUMP
N
L1
L2 L3 N
5
CALOREX HEAT PUMP
THREE PHASE
INTERLOCK
1
2
3
4
6
SWITCHED FUSE ISOLATOR
WITHIN 2m OF HEAT PUMP AND
SIZED IN ACCORDANCE WITH
DATASHEET
7 9
8
11
10

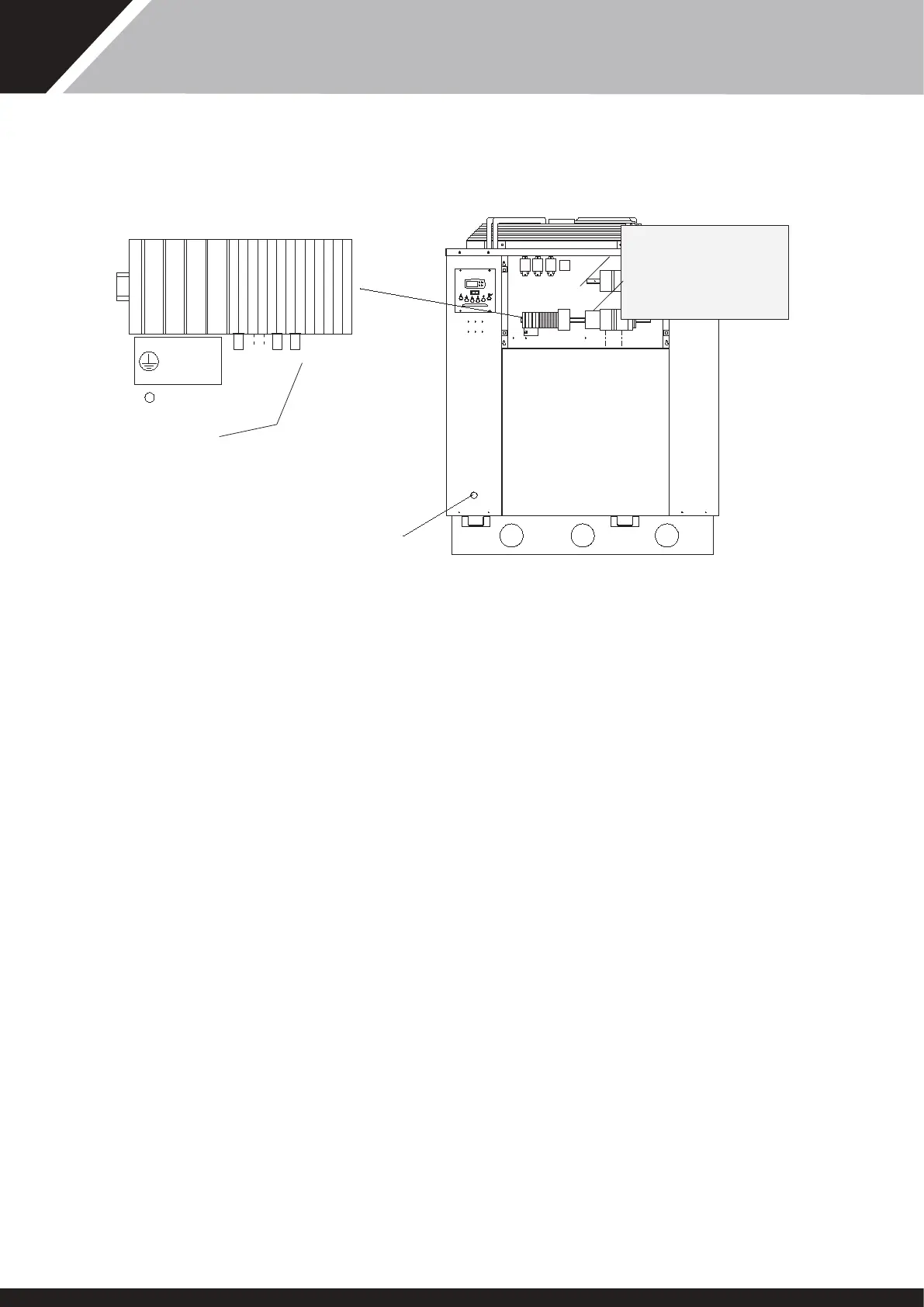

Fig. 4
LOCATION OF MAINS INPUT AND EXTERNAL INTERLOCK TERMINALS
N L1 L2 L3
D209450 ISS 1
REMOVE SERVICE PANEL
(1/4 TURN FASTENERS)
MAINS SUPPLY IN
21
0 1
N L1 L2 L3
D209450 ISS 1
1 2 3 4 5 6 7 8 9
10
11
12
13
14
15
16
17
SOFT
START
SMART
CLOCK
FLOW
SWITCH
18
*OUTSIDE FAULT CIRCUIT
(ONLY ON Y MACHINES
WITHOUT TITANIUM
CONDENSERS)
*INTER
LOCK
13
SD566252 ISSUE 51
