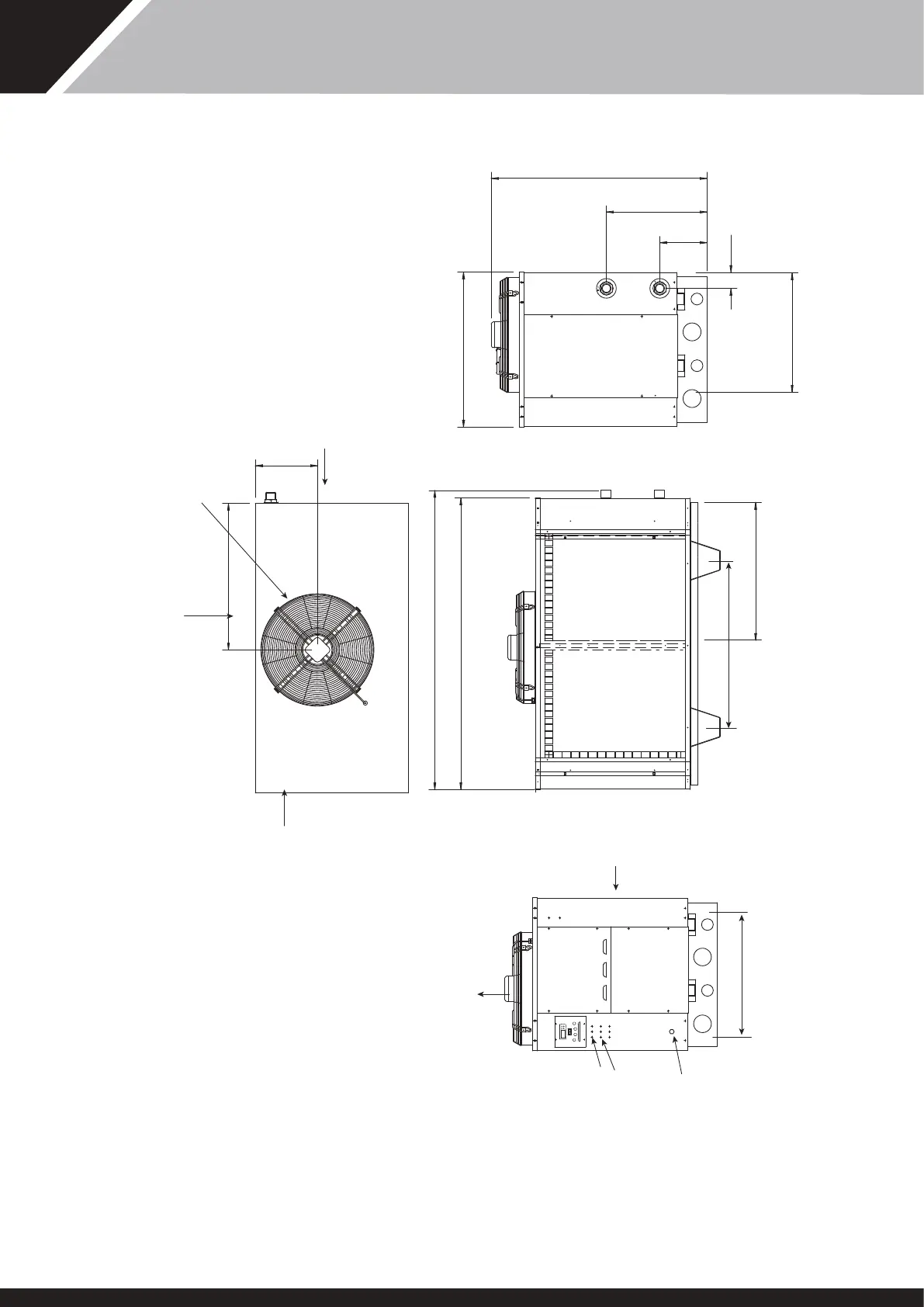

10.0 INSTALLATION DRAWINGS
Pro-Pac 30M/MY
DIMENSIONS IN mm ISSUE 1 ALLOW 500mm FOR ACCESS TO SERVICE PANELS
WATER CONNECTIONS 1.5" BSPM CONDENSATE 1.5"
NOMINAL FAN
DIAMETER 500
SERVICE
PANEL
SERVICE
PANEL
SERVICE
PANEL
316
752
1486
1555
EEE
C
D
D
E
WATER
OUT
WATER
IN
713
CONDENSATE OUT
POSITION IN BASE
*880
CONSOLE
HP SWITCH
LP SWITCH
(AUTO RESET LP
SWITCH ON Y
MACHINES)
AIR IN
MAINS IN
AIR OUT
SERVICE
PANEL
SERVICE PANEL
ELECTRIC BOX
ACCESS
IO
*683
*FIXING CENTRES TO SECURE MACHINE
SERVICE
PANEL
609
CONDENSATE OUT
POSITION IN BASE
790
1080
235
502
80
37
SD566252 ISSUE 51
