Pro-Pac 70

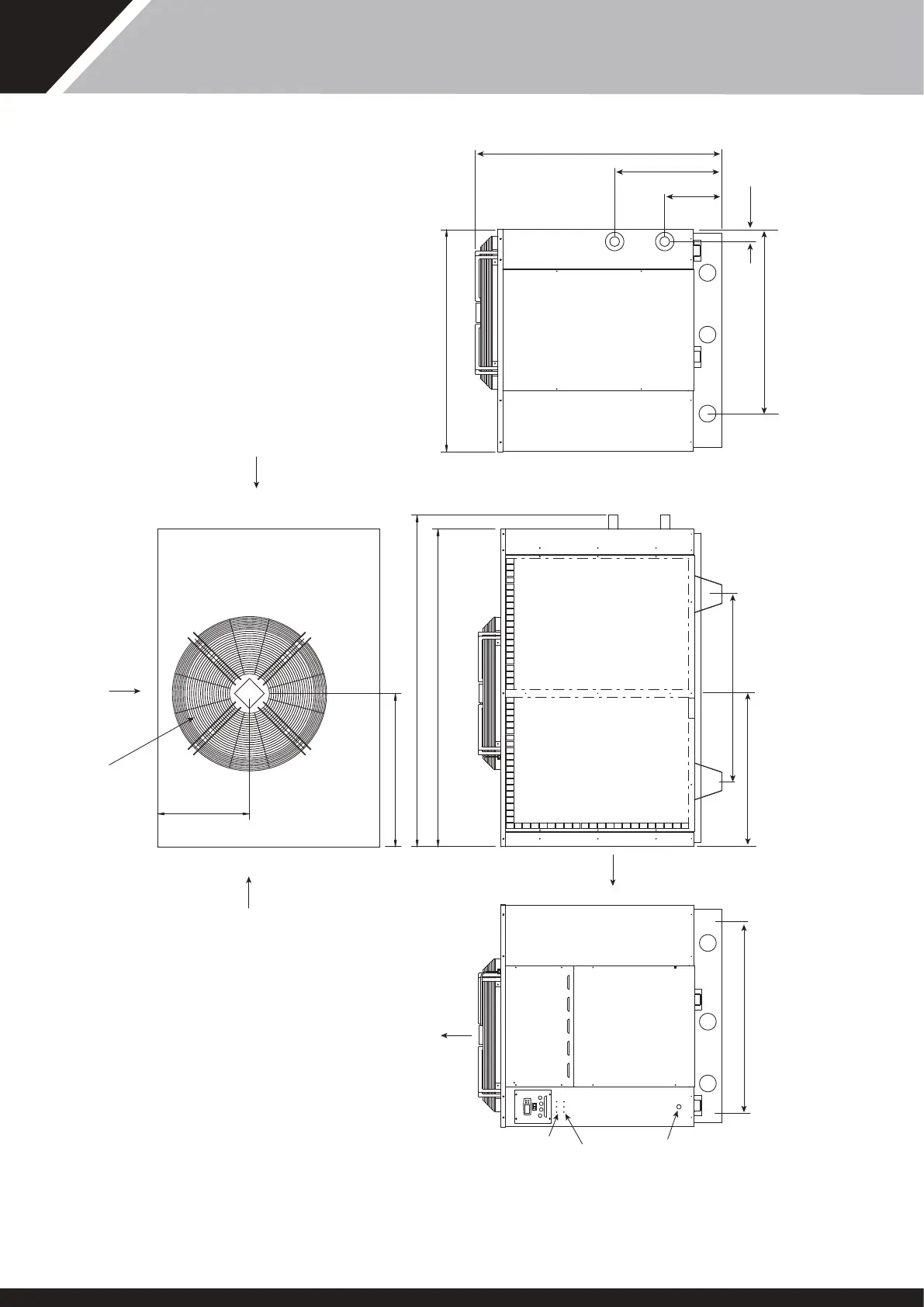

DIMENSIONS IN mm
ISSUE 1
ALLOW 500mm FOR ACCESS TO SERVICE PANELS
WATER CONNECTIONS 1½" BSPM CONDENSATE 1½" BSPM
AIR OUT
446
837
SERVICE
PANEL
SERVICE PANEL
NOMINAL FAN
DIAMETER 815
SERVICE PANEL
1736
1810
WATER
OUT
WATER
IN
AIR IN
866
CONDENSATE OUT
POSITION IN BASE
SERVICE
PANEL
SERVICE PANEL
ELECTRIC BOX
ACCESS
CONSOLE
HP
SWITCH
LP
SWITCH
MAINS
IN
0 1
*1110
*1000
*FIXING CENTRES TO SECURE MACHINE
1190
1310
936
CONDENSATE OUT
POSITION IN BASE
SERVICE
PANEL
302.50
569.50
65
41
