Calpeda NG User Manual

54 / 64 NG,NGL,NGX Rev. 7

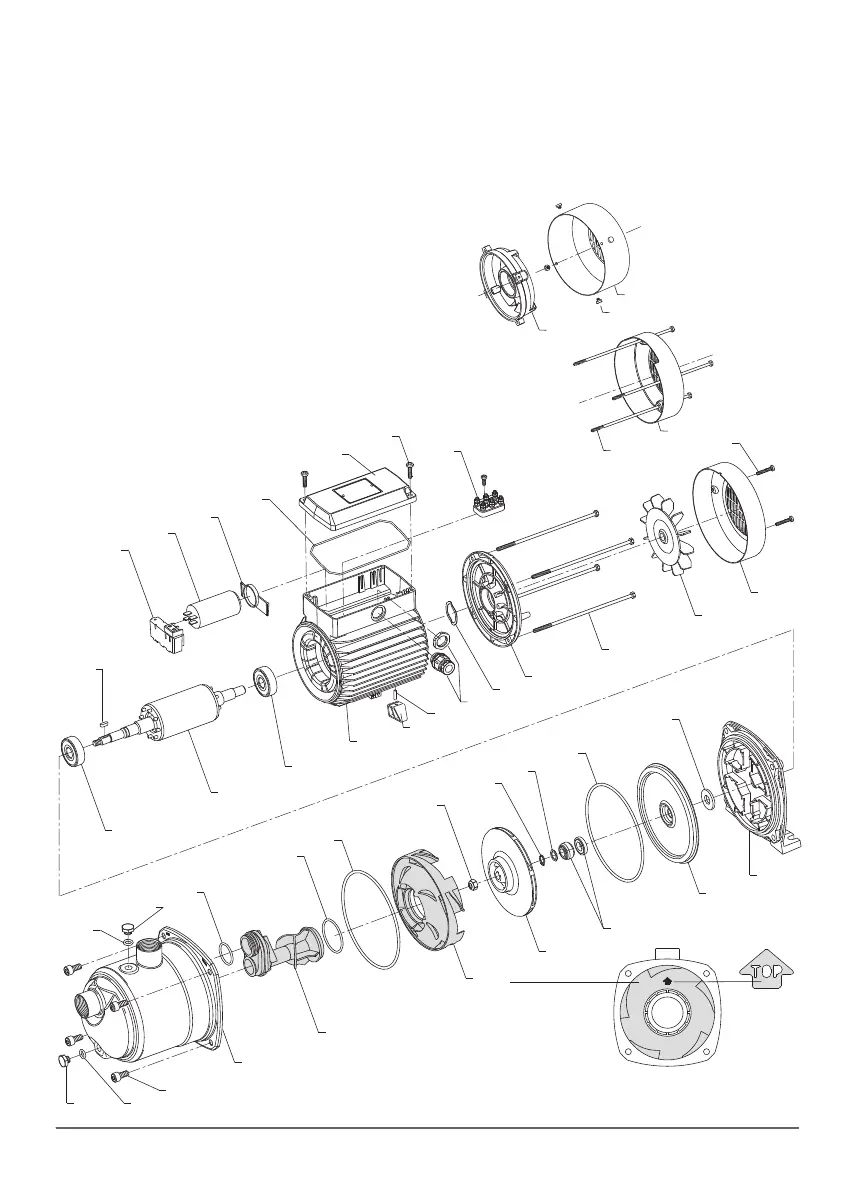

12.2. Disegno per lo smontaggio ed il rimontaggio
Drawing for dismantling and assembly
Zeichnung für Demontage und Montage
Dessin pour démontage et montage
Dibujo para desmontaje y montaje
Ritning för demontering och montering
Onderdelentekening
óÂÚÂÊ ‰Îfl ‰ÂÏÓÌڇʇ Ë Ò·ÓÍË
组装与分解图
NGX
76.04
76.00
90.04
76.54
98.04
98.00
98.08
*
N
GX
N
GXM
94.02
94.00
76.54
28.20
1)
90.00
88.00
92.00
82.00
82.00
76.20 *
76.16
82.04
81.00
78.00
73.00
14.04
14.06
22.12
22.16
28.04
28.12
**
36.52 **
14.20
26.06
*
46.00
70.00
34.00
36.00
28.00
26.00
22.00
14.00
14.24
14.1614.12
4.94.029
90.00
90.00
92.00
90.04
NGX
2
NGX
5,6
(1) Non presente NGX 2/80
Not supplied NGX 3/100
NGX 4/110
* NGX 5,6
** NGX 2/80,3/100,4/110
