in-temp Heat Pump System in-temp Heat Pump System
For some spas equipped with Gecko control systems, your dealer may oer an add on heat pump option
for your spa before ordering. Heat pumps are very ecient at heating up spas, and have the added benet
of being able to cool down spa water as well. This allows you to use your spa both for therapeutic hot water,
and to cool o in the hotter months of the year, all controlled from your spa controller.
The in.temp heat pump system will include thor-
ough instructions to help your dealer install the
system to your spa. This section of the manual is
for quick reference of the heat pump system.
Note: This is only able to be installed onto a 240 volt
system, with Gecko Ye-3 or Ye-5 control packs.
Installation of the Heat Pump after the spa has been
manufactured is not possible. As special plumbing
components & software must be installed onto the
spa during the manufacturing process.
8
Box content - USA Model
• in.temp
• Quick Reference Card - 9919-101638
• Accessory kit Including rubber feet and fittings for 1.5 in piping
• 9920-401527 Heat pump communication cable 5 meter (16 feet) - pre-installed
• 9920-401532 Heat pump power cord n-a 14/3 AWG 5 meter (16 feet) - pre-installed
Optional / sold separately
• 9920-401528 Heat pump communication cable 10 meter (33 feet)
• 9920-401531 Heat pump power cord n-a 14/3 AWG 10 meter (33 feet)
• 9920-201308 Option for in.ye-V3 control systems / ASSY PCB EXT-COM-RS485

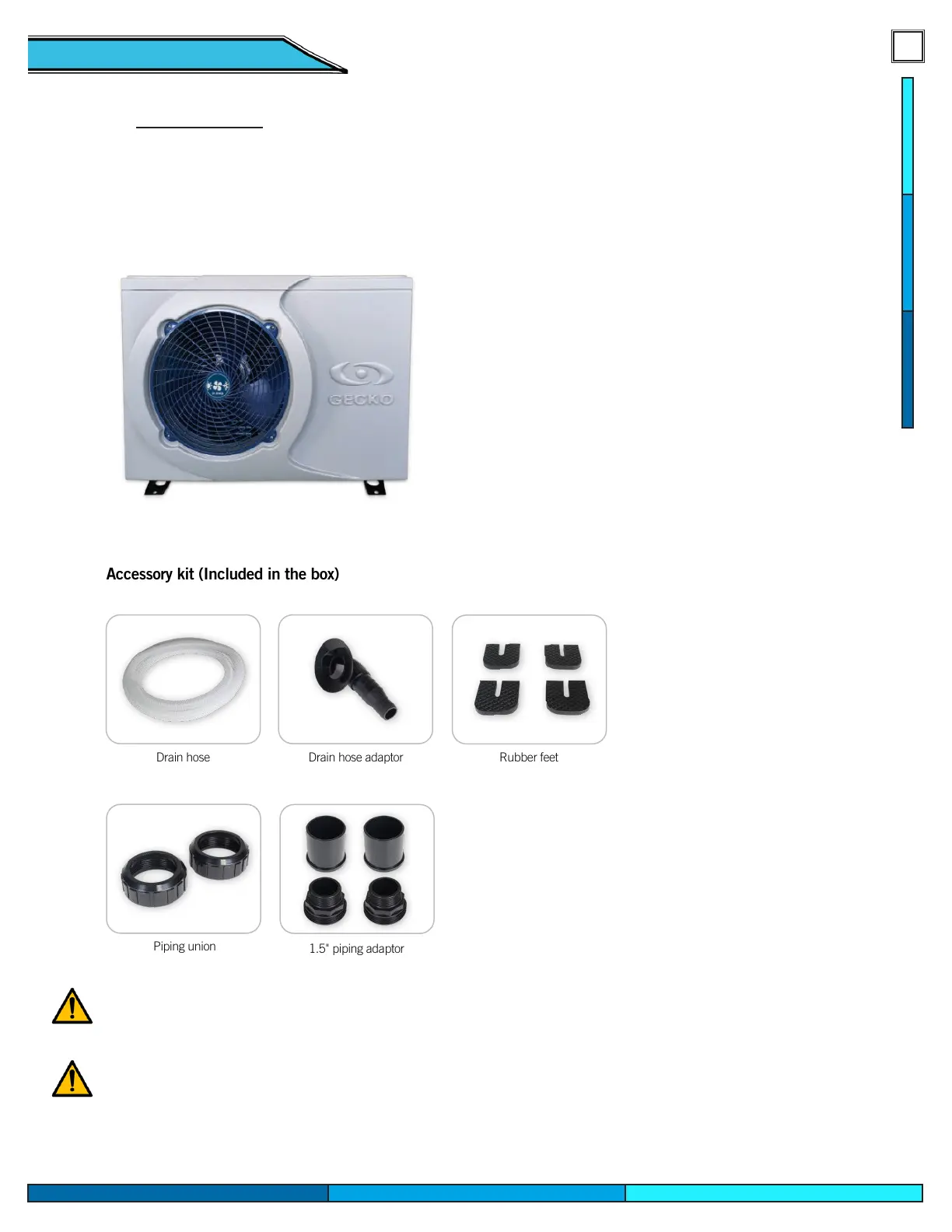

Overview
Accessory kit (Included in the box)
Drain hose Drain hose adaptor
Piping union
1.5" piping adaptor
Rubber feet
Additional parts will be
required to complete the
installation process.
Your spa dealer may have
a several genuine Cal Spas
plumbing parts in stock to
provide. You may also order
parts through your dealer or
on our website
www.quickspaparts.com
The in.temp must be NOT be installed in an air tight or conned space, such as a garage or basement with poor
ventilation. In order for the heat pump to operate properly, it must properly dissipate heat generated by the
in.temp when cooling, and dissipate cold air when heating.
• Do not install the unit where ammable gas leaks can occur.
• All plumbing connections should be carried out as per the instructions provided in the in.temp manual.
• Avoid physical contact with the fan when the unit is operating, it can cause serious injury if hair, clothing,
ngers, and jewelery get caught in the moving fan.
• Ensure the in.temp is correctly grounded to earth with the power cable.
