Using the Variable Speed Swim PumpUsing the Variable Speed Swim Pump
17
+
Variable speed pump
If the pump status is currently closed, pressing the
associated icon will activate it at the last known speed or at
maximum speed upon initial activation� If the pump was
active, it would shut off�
Additionally, the variable speed pump adjustment mode
will be displayed at the bottom of the menu�
In standard operation adjustment mode of the variable
speed pump, you can roughly vary the rotation speed in
increments of 25% by pressing one of the four rectangles,
or fine-tune in 5% increments using the arrows on each
side�
The colored part of the gauge on the icon and rectangles
represents the current rotation speed of the pump�
Display of variable speed pump errors
Communication Error
When the option for a variable speed pump is activated
and the control system does not detect the pump, a
communication error message with the pump number will
be displayed in the messages section at the bottom of the
main page� Additionally, the pump rotation speed will be
forced to 15%�
Other Errors
All variable speed pump errors other than communication
issues are associated with specific codes� In case of an
error, the code will be displayed in the messages section
at the bottom of the main page� This error code will assist
the technician in troubleshooting�
Keypad functions
17
+
Variable speed pump
If the pump status is currently closed, pressing the
associated icon will activate it at the last known speed or at
maximum speed upon initial activation� If the pump was
active, it would shut off�
Additionally, the variable speed pump adjustment mode
will be displayed at the bottom of the menu�
In standard operation adjustment mode of the variable
speed pump, you can roughly vary the rotation speed in
increments of 25% by pressing one of the four rectangles,
or fine-tune in 5% increments using the arrows on each
side�
The colored part of the gauge on the icon and rectangles
represents the current rotation speed of the pump�
Display of variable speed pump errors
Communication Error
When the option for a variable speed pump is activated
and the control system does not detect the pump, a
communication error message with the pump number will
be displayed in the messages section at the bottom of the
main page� Additionally, the pump rotation speed will be
forced to 15%�
Other Errors
All variable speed pump errors other than communication
issues are associated with specific codes� In case of an
error, the code will be displayed in the messages section
at the bottom of the main page� This error code will assist
the technician in troubleshooting�
Keypad functions

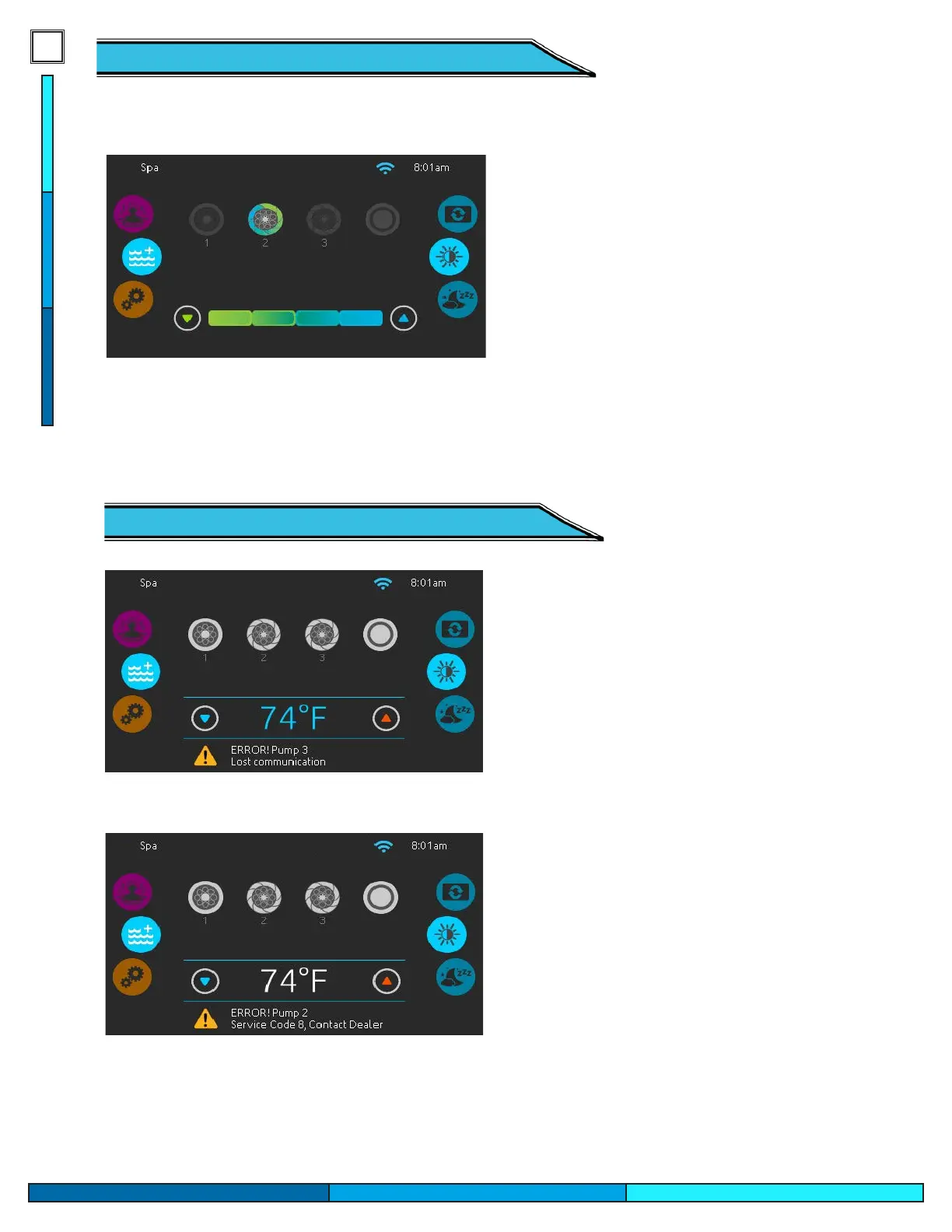

Variable Speed Pump Error MessagesVariable Speed Pump Error Messages
Variable Speed Swim Pump Operation
If the pump status is currently closed, pressing the
pump icon will activate it on the last set speed. A
visible bar will appear on the screen showing the
intensity of the spas swim pump(s).
To adjust the ow of your variable speed pump, you
may use the up and down arrows on opposite ends
of the gauge bar. Pressing the buttons allows you
to ne tune the intensity by increments of 5%. You
may also slide your nger across the bar to adjust
the intensity of the pump(s). Each rectangle in the
bar increases the force of the pump by 25%
The colored part of the gauge bar represents the
rotation speed (intensity) of the pump.
Communication Error
When the option for a variable speed pump is
activated and the control system does not detect a
variable speed pump, a error message will appear,
labeled as a communication error. The pump num-
ber will also be displayed. If the pump does activate
when this error message appears, the force of the
pump will be locked at 15%. You may shut down
the power going to the spa and restart the unit to
reboot the system. If the same error message ap-
pears, contact your dealer for spa service.
Other Error Messages
All variable speed pump errors other than commu-
nication related errors are associated with specic
codes. These codes help technicians troubleshoot
and nd the source of whats causing the error. Call
your spa dealer for service.
17
+
Variable speed pump
If the pump status is currently closed, pressing the
associated icon will activate it at the last known speed or at
maximum speed upon initial activation� If the pump was
active, it would shut off�
Additionally, the variable speed pump adjustment mode
will be displayed at the bottom of the menu�
In standard operation adjustment mode of the variable
speed pump, you can roughly vary the rotation speed in
increments of 25% by pressing one of the four rectangles,
or fine-tune in 5% increments using the arrows on each
side�
The colored part of the gauge on the icon and rectangles
represents the current rotation speed of the pump�
Display of variable speed pump errors
Communication Error
When the option for a variable speed pump is activated
and the control system does not detect the pump, a
communication error message with the pump number will
be displayed in the messages section at the bottom of the
main page� Additionally, the pump rotation speed will be
forced to 15%�
Other Errors
All variable speed pump errors other than communication
issues are associated with specific codes� In case of an
error, the code will be displayed in the messages section
at the bottom of the main page� This error code will assist
the technician in troubleshooting�
Keypad functions
