Cambium Networks PTP 820C Installation Guide

Chapter 6: Installation Procedures per Configuration Type
MultiCore 2+0 Dual Polarization Remote Mount
phn-3962 004v000
Page 6-6
Required Tools
• Metric offset hexagon key set
• Metric wrench key set
• Phillips #1, #2 screwdriver
• Insertion Loss
Insertion Loss
Table 27 Insertion loss for MultiCore 2+0 Dual Polarization Remote Mount
Mediation
Devices
Signal
Path/Remarks
Insertion Loss [dB]
6-8 GHz
11 GHz
1315
GHz
18 GHz
23-26
GHz
28-38
GHz
OMT and
two WGs
Each PTP 820C
antenna port to
Mediation device
antenna port
0.8
0.8
1.5
1.5
1.7
2.0
Common Installation
86B1

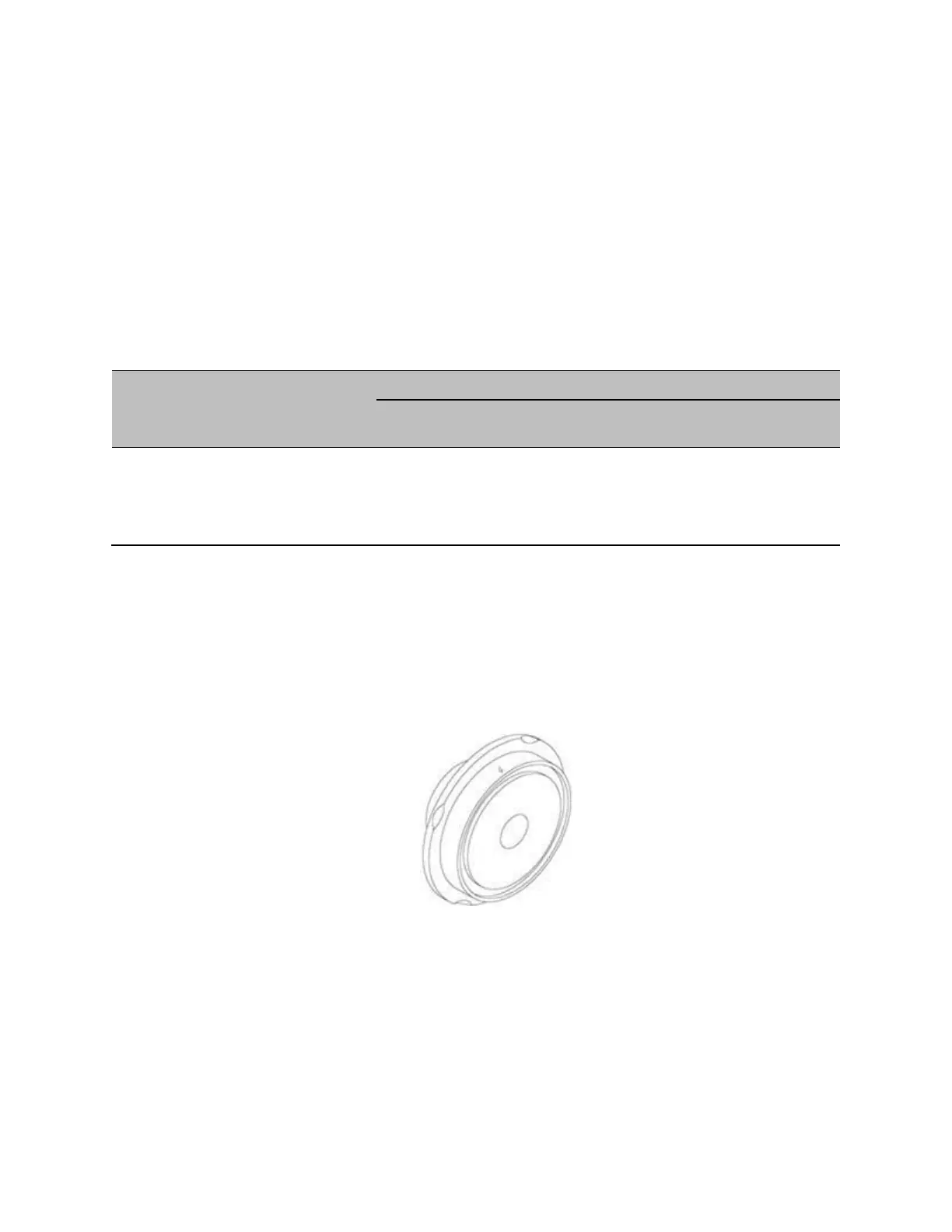

Prior to the installation, follow the antenna manufacturer’s instructions to use the circular
adaptor. (Remove the existing rectangular transition, swap the O-ring, and install the circular
transition instead.)

Cambium Networks PTP 820C Specifications

General

Category	Network Router
Management Interface	Web GUI, SNMP, CLI
Max Range	Up to 120 km
Ethernet Ports / Interfaces	2 x 10/100/1000 Mbps
Security	AES encryption
Operating Temperature	-40°C to +60°C
Ingress Protection	IP67
Frequency Bands	6, 7, 8, 10, 11, 13, 15, 18, 23, 26, 28, 32, 38, 42 GHz
Modulation	QPSK to 4096QAM
