Chapter 6: Installation Procedures per Configuration Type
4x4 LoS MIMO Direct Mount
phn-3962 004v000
Page 6-67
4x4 LoS MIMO Direct Mount

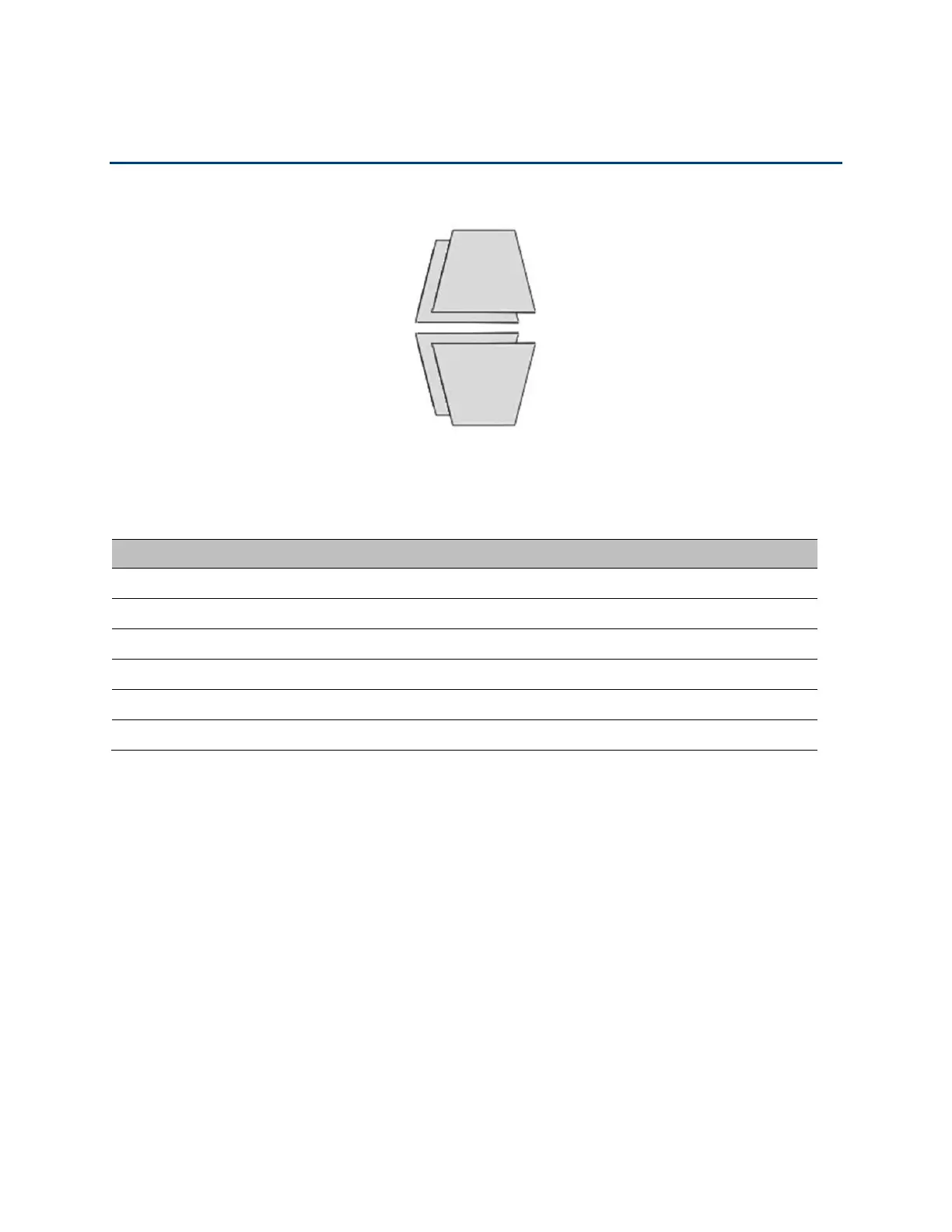

Figure 28 4x4 Los MIMO Direct Mount
List of Items
Table 50 Required items for 4x4 LoS MIMO Direct Mount
Item
Description
Quantity
Remarks
1
PTP 820C RADIO
2
2
PTP 820C OMT KIT
2
3
MIMO DATA CABLE
1
4
SOURCE SHARING CABLE
1
5
CAT5E MIMO SIGNALING CABLE
1
6
CIRC./CIRC. ADAPTOR
2
Per Antenna Vendor
Required Tools
• Metric offset hexagon key set
• Metric wrench key set
