Chapter 6: Installation Procedures per Configuration Type

MultiCore 2+2 HSB Single Polarization Direct

Mount

phn-3962 004v000

Page 6-33

Procedure

121B1

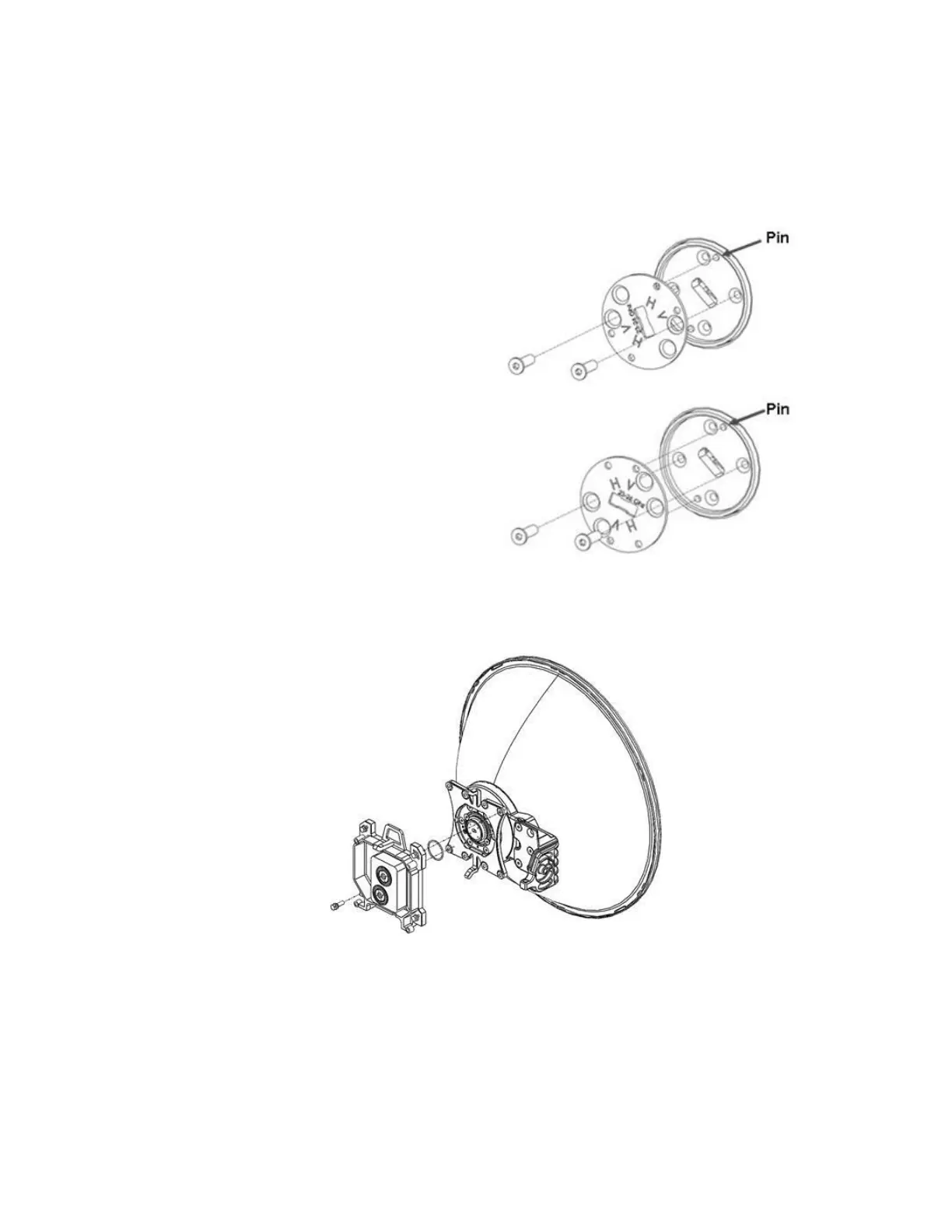

Adjust the twist on the Splitter Kit. Perform one of the following steps, according to the

required polarization (horizontal or vertical).

For horizontal polarization, locate the holes

above and below the letter “H” on the pins

and fasten the two screws.

For vertical polarization, locate the holes

above and below the letter “V” on the pins

and fasten the two screws.

122B2

Mount the Splitter Kit on the antenna using four M8 screws and washers and tighten the

screws.
