PoE Injector
The PoE injector is an outdoor unit which can be mounted on a wall, pole, or indoor rack.
Each PoE Injector kit includes the following items:
• PoE injector
• 2 DC power connectors

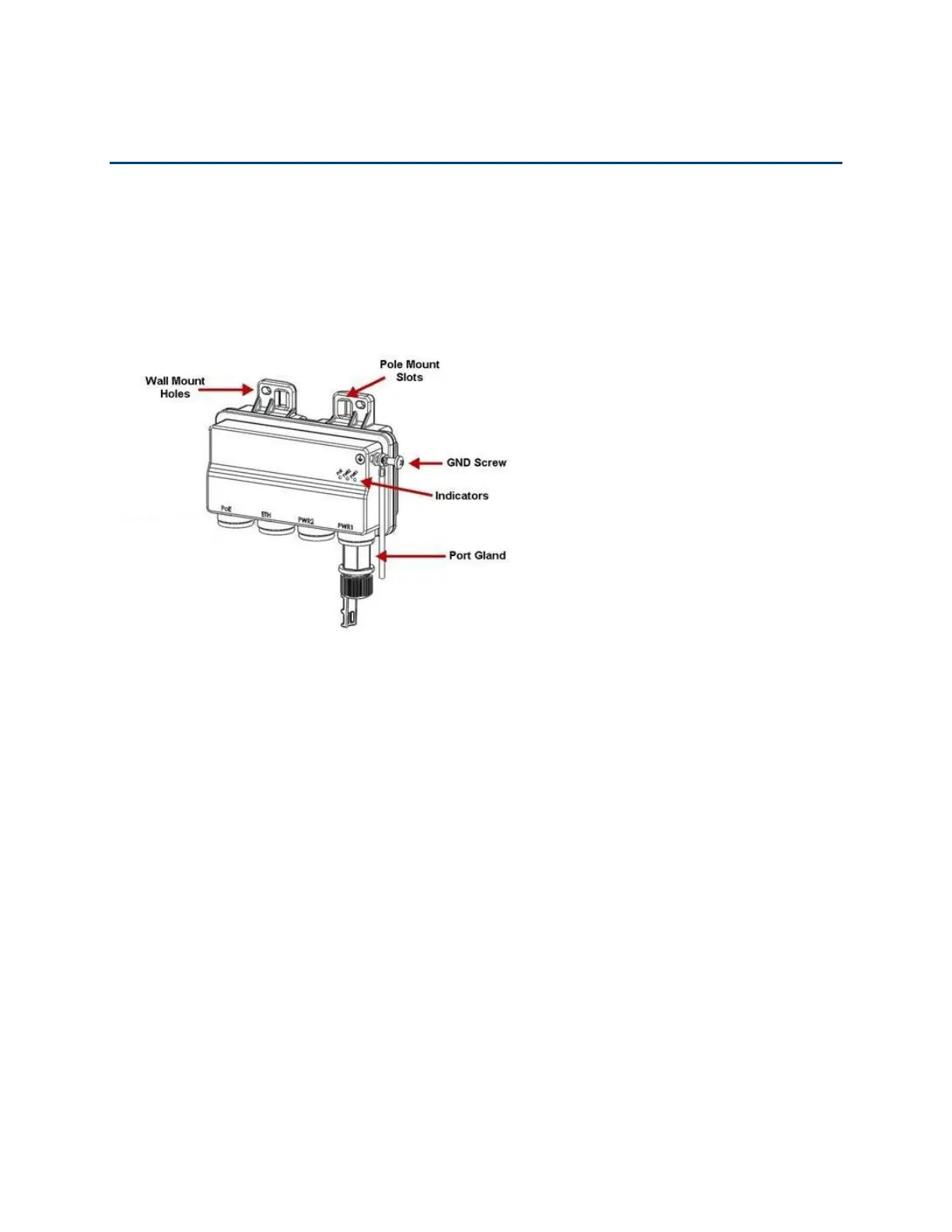

Figure 6 PoE Injector
The PoE Injector model available:
• N000082L022A PTP 820 PoE Injector all outdoor, redundant DC input, +24VDC support –
Includes two DC power ports with power input ranges of ±(18-60)V each.
PoE Injector Interfaces
• Power-Over-Ethernet (PoE) Port
• GbE Data Port supporting 10/100/1000Base-T
• DC Power Port 1 ±(18-60)V or ±(40-60)V
• DC Power Port 2 ±(18-60)V
• Grounding screw
