Chapter 4: PoE Injector Installation and Connection

PoE Injector Cable Connection

phn-3962 004v000

Page 4-2

PoE Injector Cable Connection

The PoE Injector cables are connected similar to the PTP 820C.

• To connect the Ethernet (CAT5E) cable to the PoE or Data port, see Connection of Ethernet

Cable to PTP 820C on page 3-35.

• To connect the DC power cable to the power port or dual feed port, see Connecting a DC

Power Cable on page 3-27.

• The total length of the cable between the PTP 820C port and the Switch/Router the device is

connected to must not exceed 100m/328ft. This length includes the connection between the

PTP 820C and the PoE Injector (X1 + X2 ≤ 100m/328ft in the figure below).

Note

The length of the cable connecting the customer equipment to the PoE injector should

not be longer than 10m (according to ANSI/TIA-568 standard).

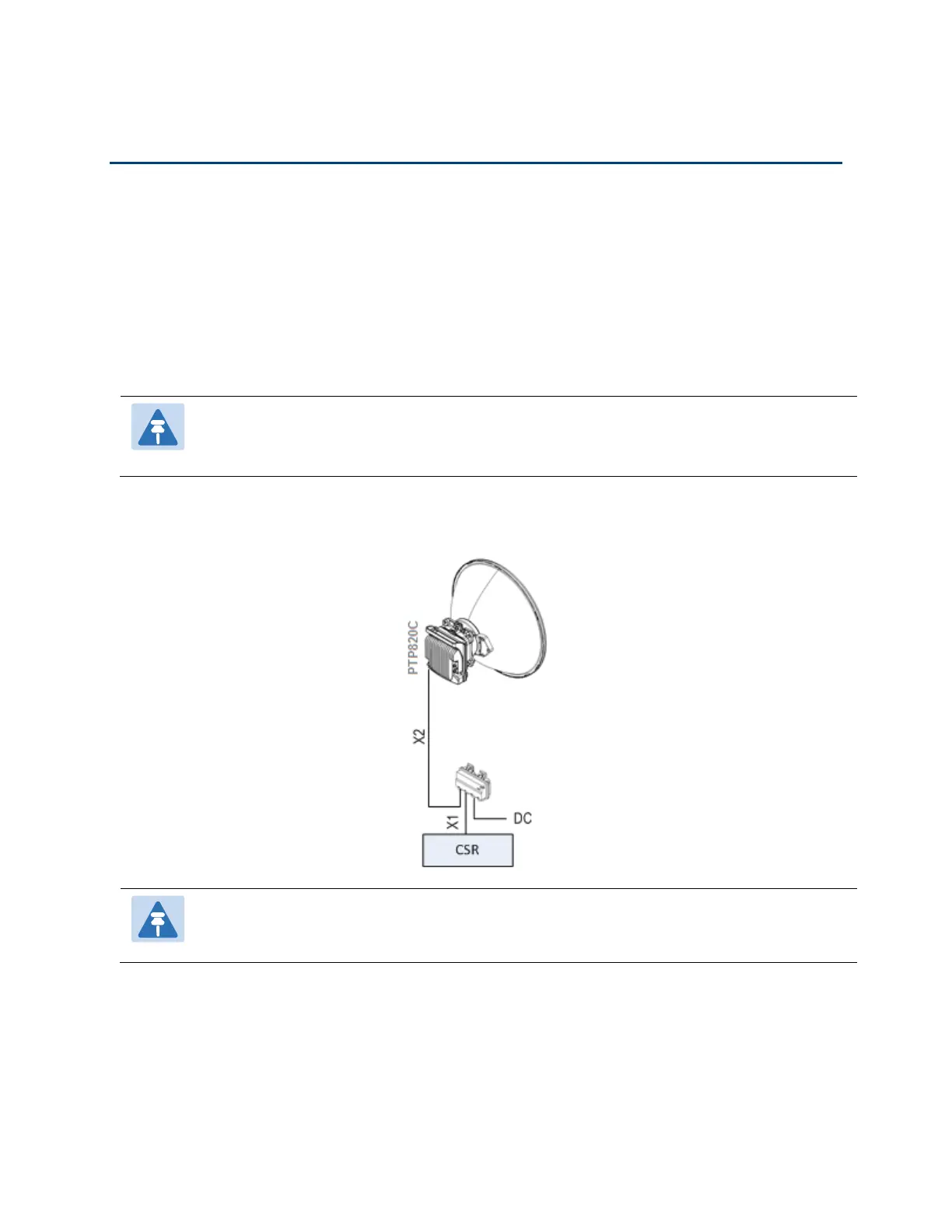

Figure 14 PoE Injector cable connection

Note

For the warranty to be honored, the connection must be through the glands only. Do

not open the PoE injector box cover.
