Cambium Networks PTP 820C Installation Guide

Chapter 6: Installation Procedures per Configuration Type
AFR 1+0 Hub Site
phn-3962 004v000
Page 6-91
15-38 GHz
194B1

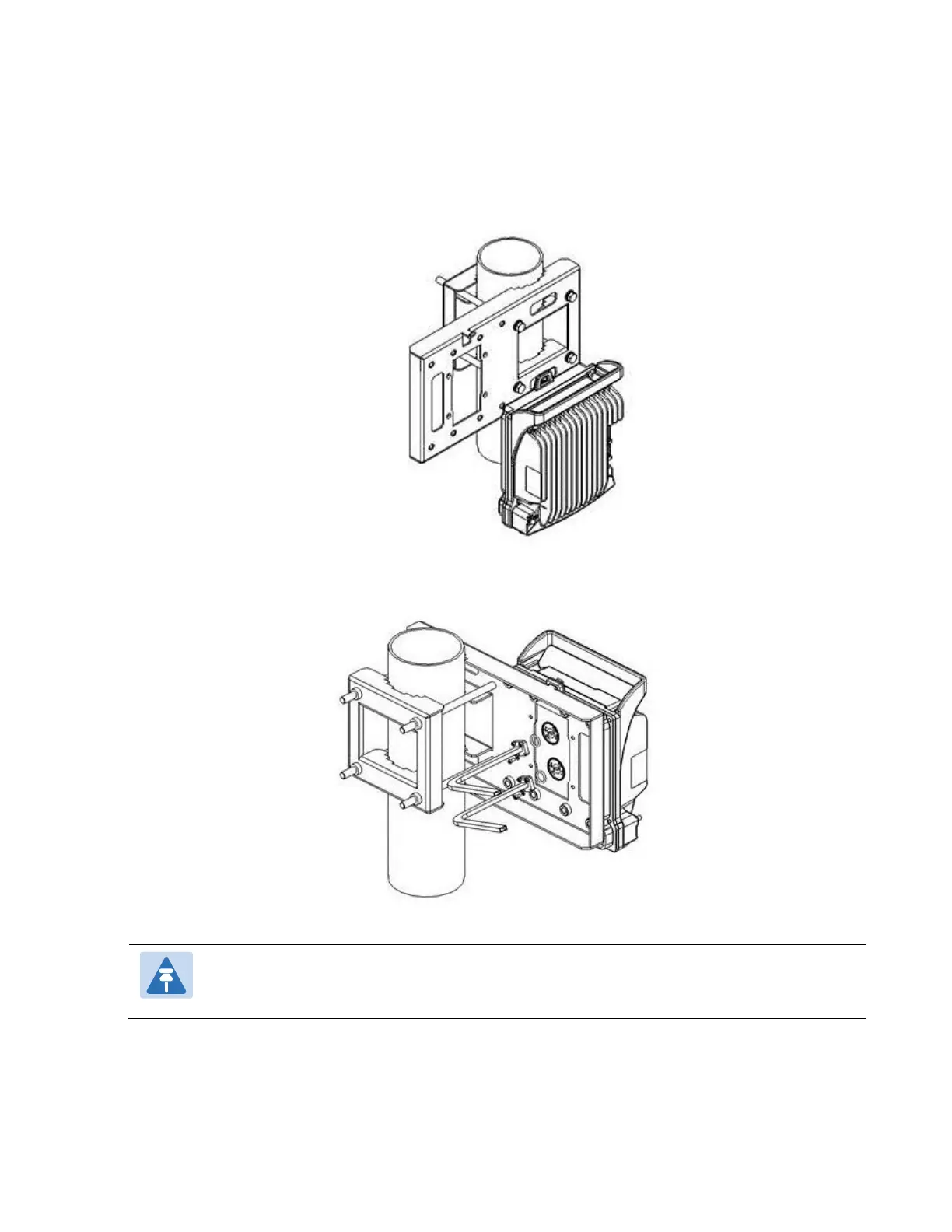

Mount and tighten the PTP 820C to the PTP 820C DC Pole Mount using the four screws
assembled on the PTP 820C.
195B2
Mount and tighten the O-ring and the Flexible WG to PTP 820C radio ports using the four
screws supplied with the Flexible WG kit.
The following figure shows the complete installation
Note
This figure shows an installation with horizontal polarization. Vertical polarization can
also be used. The same polarization must be used for both links.
