Cambium Networks PTP 820C Installation Guide

Chapter 6: Installation Procedures per Configuration Type
4+0 Dual Polarization, 2+2HSB Dual Polarization
Remote Mount
phn-3962 004v000
Page 6-74
6-13GHz
176B1

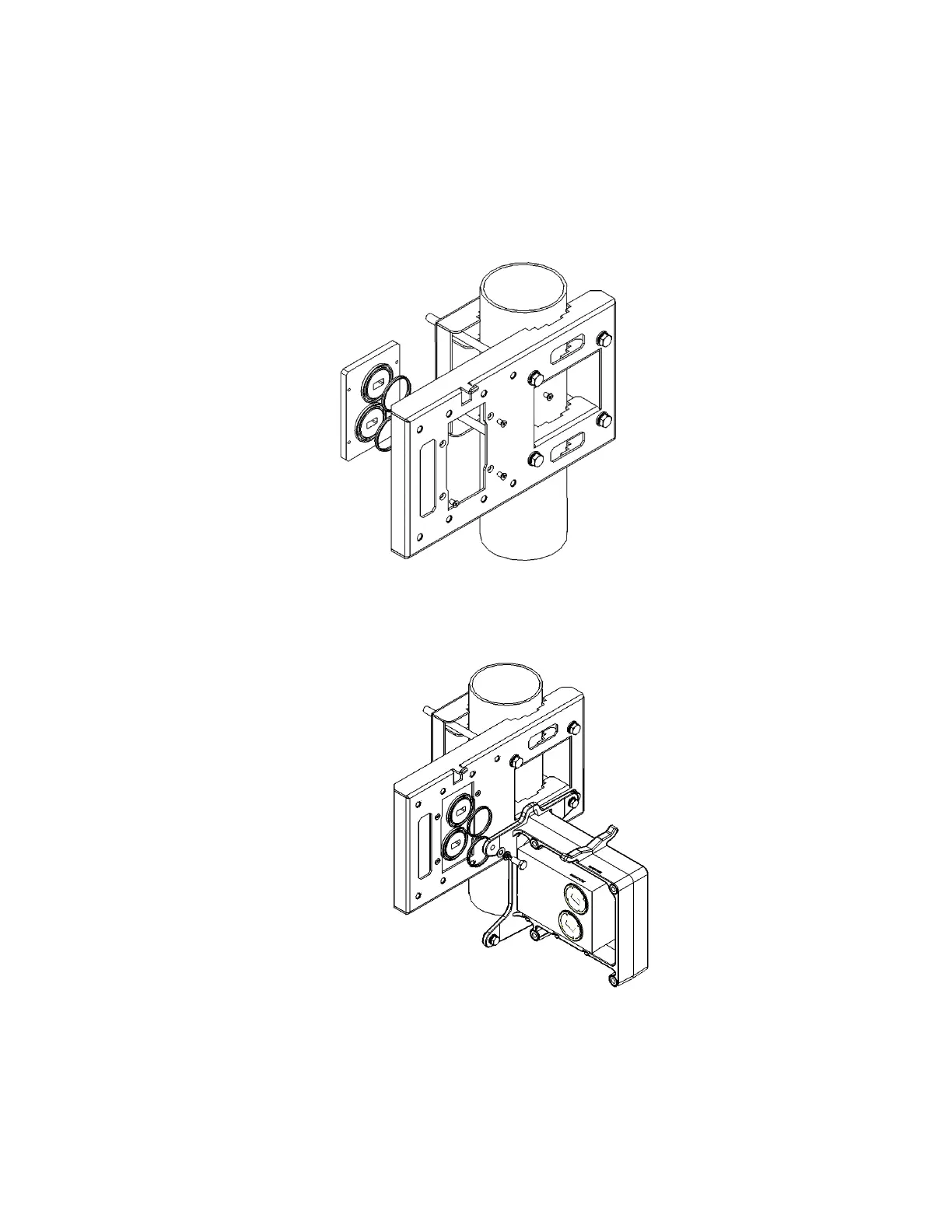

Mount and tighten the PTP 820C Remote Mount Adaptor plate (supplied in PTP 820C Adaptor
Remote Mount kit) to the PTP 820C Pole Mount using the four flat screws supplied with the
PTP 820C Adaptor Remote Mount kit.
177B2
Mount and tighten the PTP 820C Dual Coupler to the PTP 820C Pole Mount using the four
screws and washers that are supplied with the PTP 820C Dual Coupler kit. Pay attention that
the O-rings are mounted on the PTP 820C Remote Mount Adaptor.
