Chapter 6: Installation Procedures per Configuration Type

MultiCore 2+0 Single Polarization Remote

Mount

phn-3962 004v000

Page 6-18

103B3

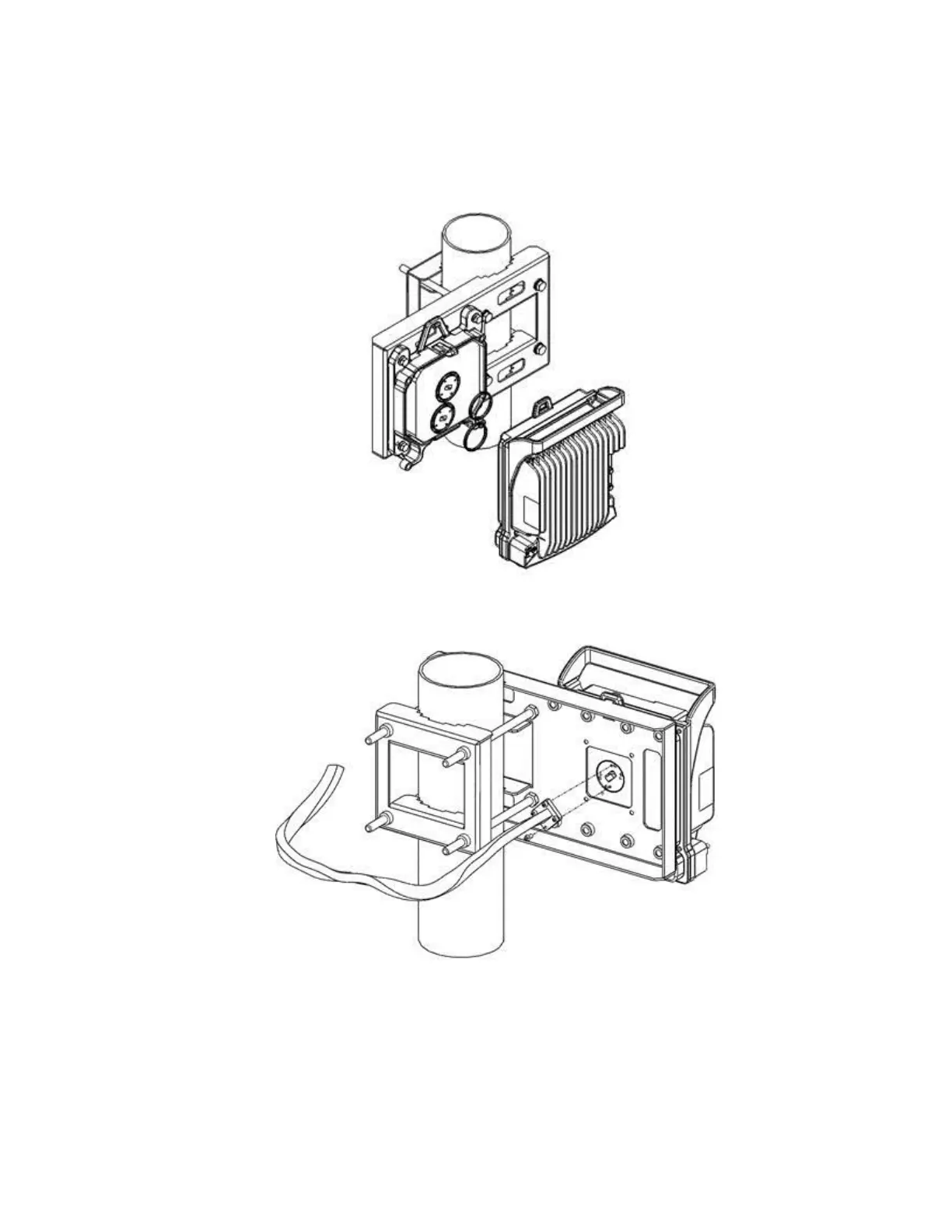

Mount and tighten the PTP 820C to the PTP 820C Splitter using the four captive screws and

washers that are assembled to the PTP 820C. Pay attention that the O-rings are mounted on

the PTP 820C Splitter kit.

104B4

Connect the Flexible Waveguide and Sealing Gasket supplied with the Flexible Waveguide Kit

to the PTP 820C Splitter kit. Tighten the four screws supplied with the Flexible Waveguide kit.
