Cambium Networks PTP 820C Installation Guide

Chapter 6: Installation Procedures per Configuration Type
MultiCore 2+2 HSB Double Polarization Remote
Mount
phn-3962 004v000
Page 6-29
15-38 GHz
118B1

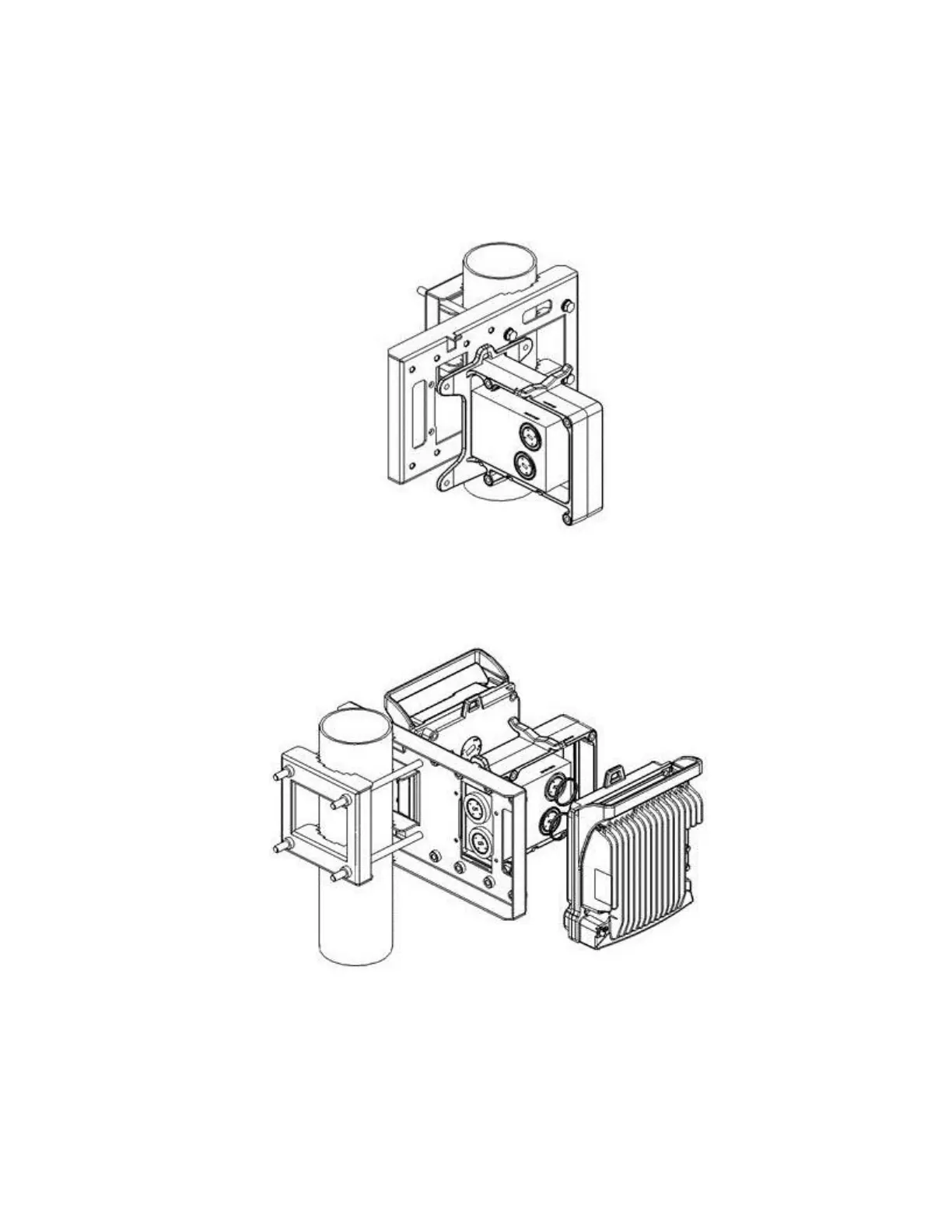

Mount and tighten the PTP 820C Dual Coupler to PTP 820C DC Pole Mount using the four
screws and washers supplied with PTP 820C Dual Coupler kit.
119B2
Mount and tighten the PTP 820C radios on each side of the PTP 820C Dual Coupler using the
screws assembled on PTP 820c radio. Pay attention that the O-rings are correctly assembled
on the radio port of the PTP 820C Dual coupler.
