Cambium Networks PTP 820C Installation Guide

Chapter 6: Installation Procedures per Configuration Type
MultiCore 2+2 HSB Single Polarization Remote
Mount
phn-3962 004v000
Page 6-43
136B5

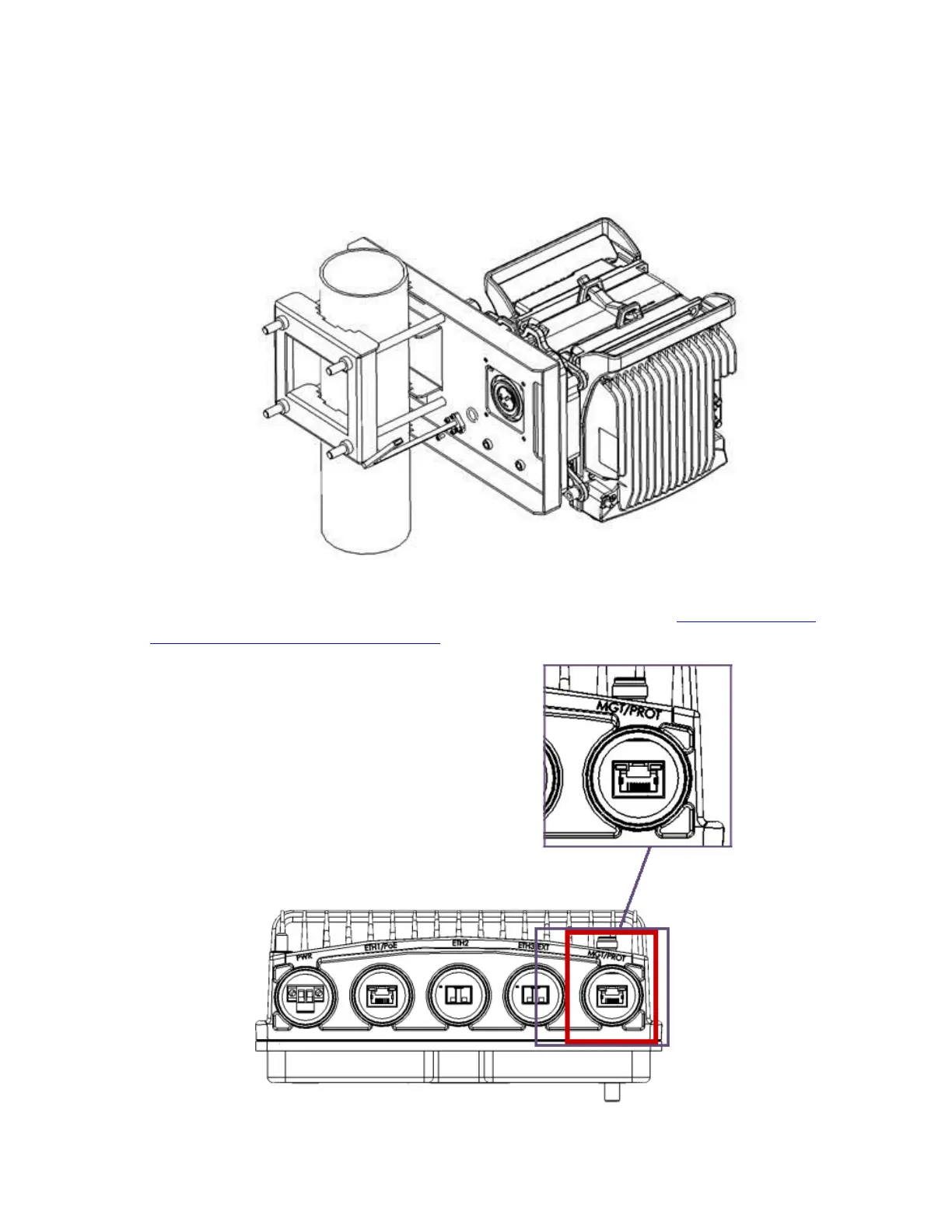

Connect the Flexible Waveguide and Sealing Gasket supplied with the Flexible Waveguide Kit
to the PTP 820C Dual Coupler antenna port. Tighten the four screws supplied with the Flexible
Waveguide kit.
137B6
Connect the protection signaling cable between the management ports of both units. For
additional instructions on preparing and connecting this cable, refer to Preparing a MIMO/
Protection signaling cable on page 3-35
