CAMBRIDGE CXU - Rear panel connections; Digital outputs; HDMI output 2; HDMI output 1 (primary output)

7
CXU
ENGLISH

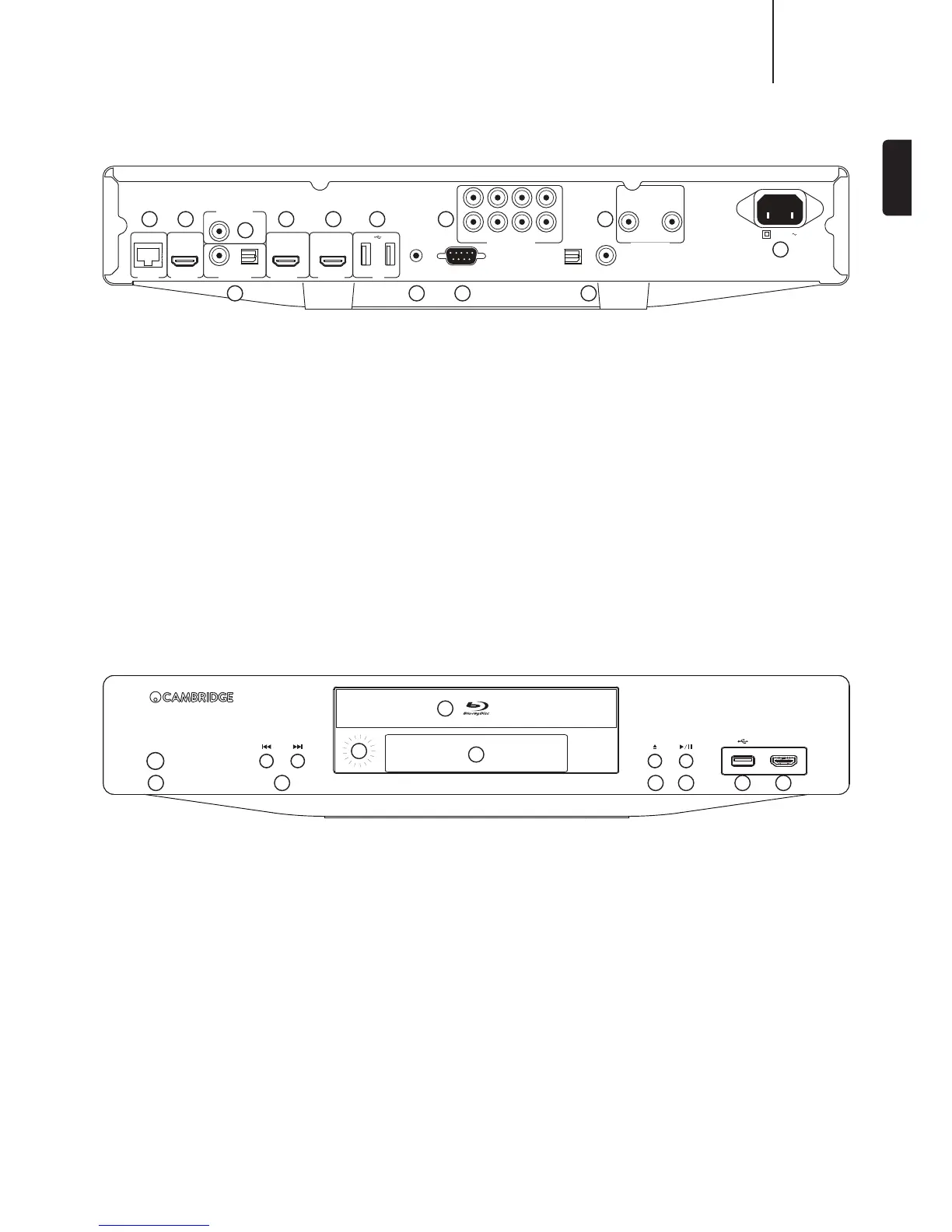

Rear panel connections
1. Ethernet LAN port
2. HDMI input
3. Diagnostic video
Use for diagnostic purposes.
4. Digital outputs
5. HDMI output 2
6. HDMI output 1 (primary output)
;OPZ V\[W\[ PZ [OL WYPTHY` V\[W\[ HUK ILULÄ[Z MYVT [OL +HYILL ]PKLV
processor. Both this output and output 2 are 3D TV compatible.
HDMI 1 and 2 both support Audio Return Channel from TVs that have this
function. See later section.
7. USB port 1 and 2
7VY[MVYPU[LYMHJPUN[VHÅHZOTLTVY`JHYKVY4HZZ:[VYHNL+L]PJL
8. IR (Infra-Red) emitter in
9. RS232C
Custom install control - a full protocol is available for the CXU on our website.
10. 7.1 channel analogue audio output
11. Digital inputs
12. Stereo audio out
Permanent stereo outputs for use with Stereo material.
13. AC power socket
7.1 Channel Audio Out Stereo Audio Out
FL SL C SBL
Right Left
FR SR SW SBR
Digital Outputs
Diagnostic Video
Digital Inputs
HDMI Input HDMI Out 2 HDMI Out 1Ethernet USB
Coax
RS-232C
OpticalCoax
Composite
OpticalIn21
IR Emitter
Power AC
1 2 5 6 7
3
4 8
10 12
13
9 11
Front panel controls
1. Standby/On
2. Skip
3. IR sensor
4. Disc tray
5. Display
1
6. Eject
7. Play/Pause
8. USB port
7VY[MVYPU[LYMHJPUN[VHÅHZOTLTVY`JHYKVY4HZZ:[VYHNL+L]PJLZ
9. MHL/HDMI input
For connection to a HDMI source or MHL compatible device.
CXU
HDMI / MHL
2
3
6 7 8 9
4
5
