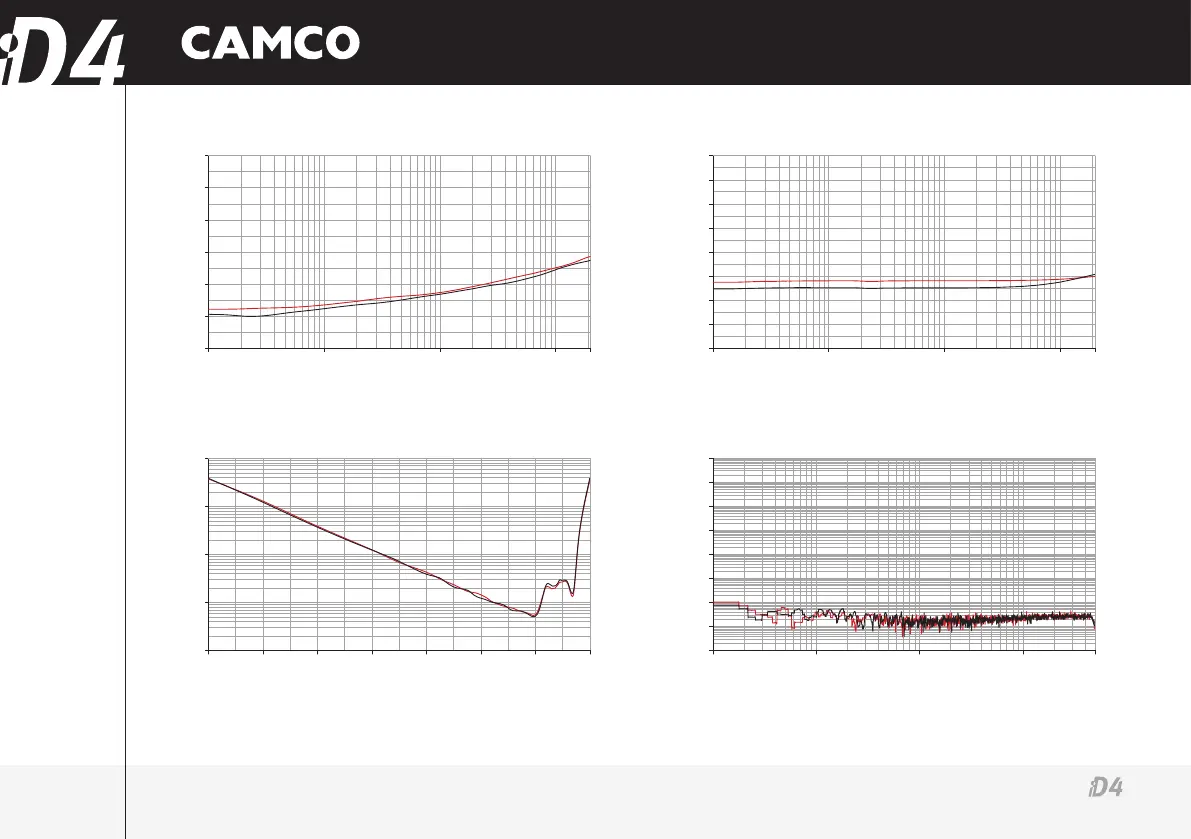

7 TYPICAL PERFORMANCE DIAGRAMS
Figure 7.5
Channelseparationvs.frequency@120W/4Ω
(Measurement of a typical performance of Ch 1
à
Ch 2 & Ch 2
à
Ch 1)
Figure 7.6
DIM100 vs. input level (32 dB amplifier gain)
(Measurement of a typical performance of Ch 1 & Ch 2)
Figure 7.7
Common mode rejection ratio vs. frequency
(Measurement of a typical performance of Ch 1 & Ch 2)
Figure 7.8
FFT of noise level (no input signal applied, analog input, 32 dB amplifier gain)
(Measurement of a typical performance of Ch 1 & Ch 2)
