8 UNIT CONVERSION EQUATIONS

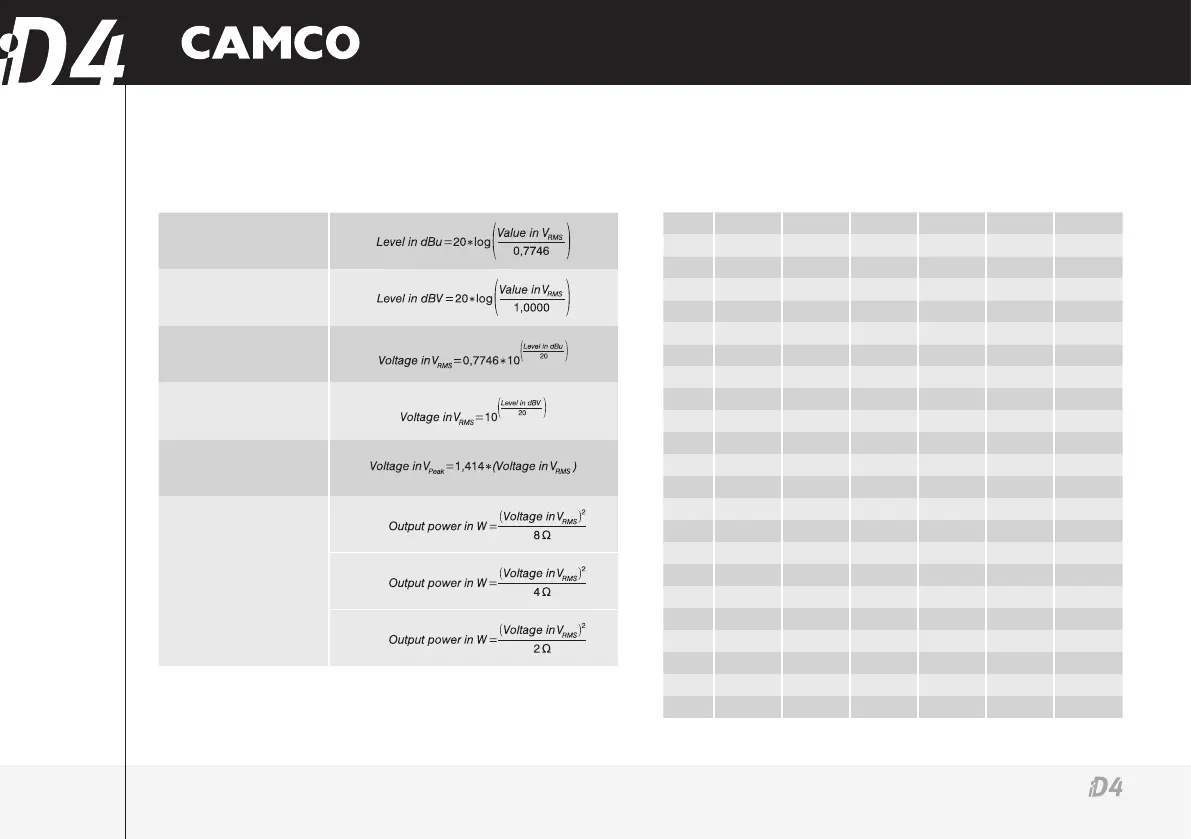

8. Unit Conversion Equations and Lookup Table
8.1 Unit Conversion Equations
Unit conversion Equation
V
RMS
à
dBu
V
RMS
à
dBV
dBu
à
V
RMS
dBV
à
V
RMS
V
RMS
à
V
Peak
V
RMS
à
Output power
8Ω4Ω2Ω
8.2 Lookup Table
V
RMS
V
Peak
dBu dBV
Output
power
in W
(8Ω)
Output
power
in W
(4Ω)
Output
power
in W
(2Ω)
1 2,83 2,22 0,00 0,13 0,25 0,50
2 5,66 8,24 6,02 0,50 1,00 2,00
3 8,49 11,76 9,54 1,13 2,25 4,50
4 11,32 14,26 12,04 2,00 4,00 8,00
5 14,14 16,20 13,98 3,13 6,25 12,5
6 16,97 17,78 15,56 4,50 9,00 18,0
7 19,80 19,12 16,90 6,13 12,3 24,5
8 22,63 20,28 18,06 8,00 16,0 32,0
9 25,46 21,30 19,08 10,1 20,3 40,5
10 28,29 22,22 20,00 12,5 25,0 50,0
12 33,95 23,80 21,58 18,0 36,0 72,0
15 42,43 25,74 23,52 28,1 56,3 112,5
20 56,58 28,24 26,02 50,0 100,0 200,0
30 84,87 31,76 29,54 112,5 225,0 450,0
40 113,15 34,26 32,04 200,0 400,0 800,0
50 141,44 36,20 33,98 312,5 625,0 1 250,0
60 169,73 37,78 35,56 450,0 900,0 1 800,0
70 198,02 39,12 36,90 612,5 1 225,0 2 450,0
80 226,31 40,28 38,06 800,0 1 600,0 3 200,0
90 254,60 41,30 39,08 1 012,5 2 025,0 4 050,0
100 282,89 42,22 40,00 1 250,0 2 500,0 5 000,0
120 339,46 43,80 41,58 1 800,0 3 600,0 7 200,0
150 424,33 45,74 43,52 2 812,5 5 625,0 11250,0
Values in grey are calculated only. The iD4 is not able to deliver these output powers.
