p. 3 - Manual FA01165 -EN - 05/2018 - © CAME S.p.A. - Translated original instructions
DESCRIPTION
AX3024 Irreversible gearmotor for swing gates with leaves of up to 3 m long.
AX5024 Irreversible gearmotor for swing gates with leaves of up to 5 m long.
Intended use
This gearmotor is designed to power and operate swing gates in private homes and apartment blocks.
Any installation and/or use other than that specifi ed in this manual is forbidden.
Limits to use
LEGEND
This symbol shows which parts to read carefully.
⚠
This symbol shows which parts describe safety issues
☞
This symbol shows which parts to tell users about.

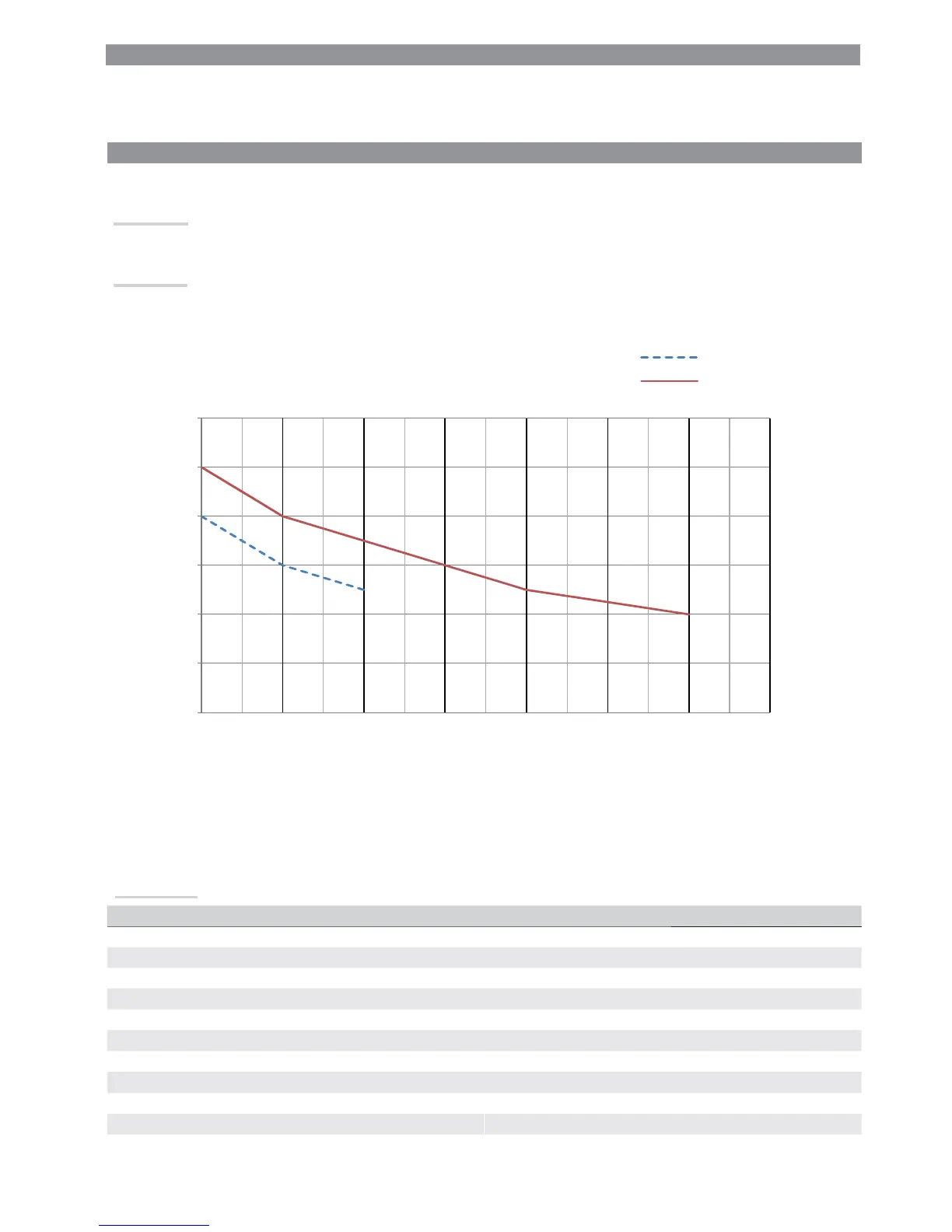

Gate-leaf weight (Kg)
Gate-leaf length (m)
⚠
W
e suggest you always fi t an electrolock onto swing gates for a more reliable closure.
You must install electrolocks onto irreversible operators with gate leaves exceeding 2.5 m.
Technical data
Type AX3024 / AX5024
Protection rating (IP) 44
Power supply (V - 50/60 Hz) 230 AC
Power supply motor (V) 24 DC
Max draw (A) 10
Power (W) 120
Thrust (N) 500 ÷ 4500
Opening time at 90° (s) ADJUSTABLE
Duty cycle (%) INTENSIVE SERVICE
Operating temperature (°C) -20 ÷ +55
Motor’s thermal monitoring (°C) 150
Weight (Kg) -
