3
ENGLISH
The data and information shown in this manual may be changed by CAME cancelli automatici s.p.a. at any time without prior warning.

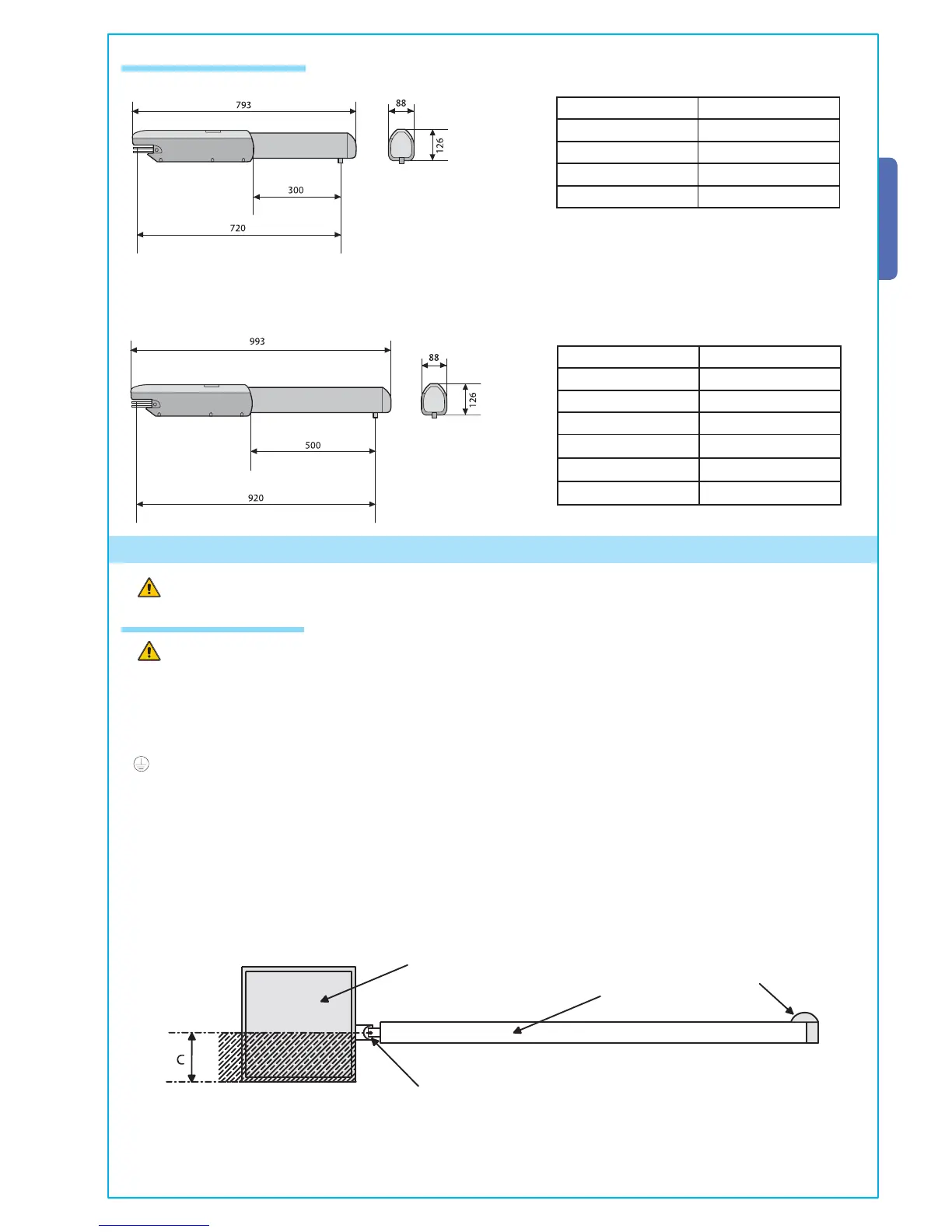

4.4 Overall dimensions
Measurements in mm
Gate leaf width Gate leaf weight
mkg
2.00 800
2.50 600
3.00 400
Gate leaf width Gate leaf weight
mkg
2.00 1000
2.50 800
3.00 600
4.00 500
5.00 400
Before installing, do the following:
• Make sure the structure of the gate is sturdy, the hinges work and that the is no friction between moving and non-moving parts;
• That measurement C is not greater than the value shown in Tab. 3, p. 4. In this case you need to work on the pillar until said measu-
rement is obtained;
• Make sure the path of the electrical cables complies with the command and safety instructions;
• That there is a (soundly secured to the ground) mechanical stop to prevent the gate leaf/gearmotor from over extending.
• Make sure that any connections inside the case (that provide continuance to the protective circuit) be fitted with extra insula-
tion as compared to the other conductive parts inside;
• Make sure you have suitable tubing and conduits for the electrical cables to pass through and be protected against mechanical
damage.
Installation must be carried out by expert qualified personnel and in full compliance with current regulations.
5 Installation
5.1 Preliminary checks
Travel
Travel
Pillar
Gate leaf
End stop
Hinge
A 3024N
A 5024N
