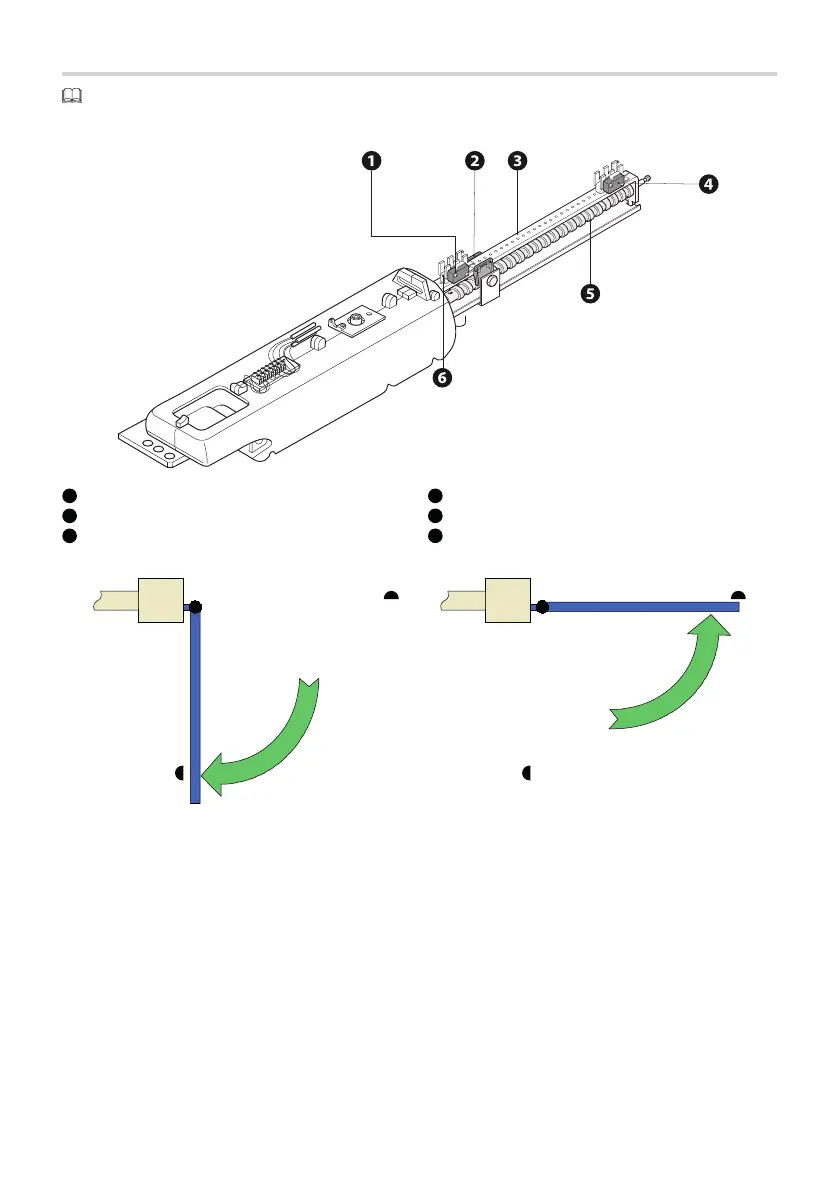

Adjusting the opening and closing micro limit switches
Only the A3000A and A5000A models have both opening and closing micro limit switches. All other models only
have an opening micro limit switch.
1
Opening micro limit switch
2
Microswitch activation slider
3
Microswitch support boom
4
Closing micro limit switch
5
Endless screw
6
Fastening screw
Opening adjustment
Release the gearmotor.
Move the leaf to the maximum desired opening position.
Unscrew the screws in the opening microswitch assembly.
Slide the microswitch assembly along the support boom until
it connects with the microswitch activation slider.
Secure the microswitch assembly using the screws.
Closing adjustment
Release the gearmotor.
Move the leaf to the closed position.
Unscrew the screws in the closing microswitch assembly.
Slide the microswitch assembly along the support boom until
it connects with the microswitch activation slider.
Secure the microswitch assembly using the screws.
