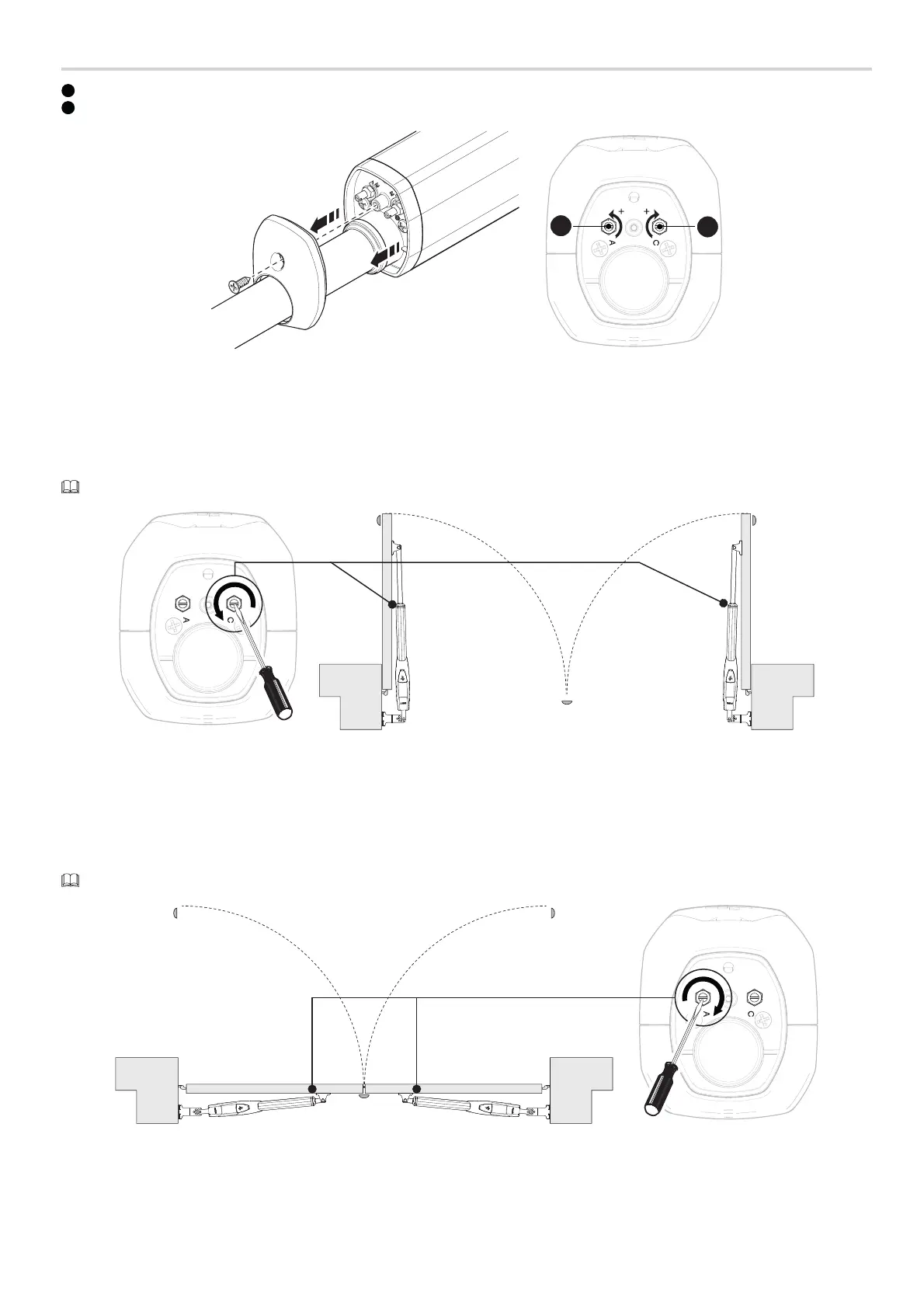

Determining the end-of-travel points with micro limit switches
A
Rod for determining the closing end-of-travel point
C
Rod for determining the opening end-of-travel point
A
C
Determining the opening end-of-travel points
Release the gearmotor.
Open the gate manually.
Send an opening command.
At the same time, turn the rod for determining the opening end-of-travel point ANTICLOCKWISE until the gearmotor stops.
Leave the rod nut loose to determine the end-of-travel points.
Determining the closing end-of-travel points
Release the gearmotor.
Close the gate manually.
Send a closing command.
At the same time, turn the rod for determining the closing end-of-travel point CLOCKWISE until the gearmotor stops.
Leave the rod nut loose to determine the end-of-travel points.
