CAME ATS30DGS

p. 9 - Manual FA01338-EN - 01/2020 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

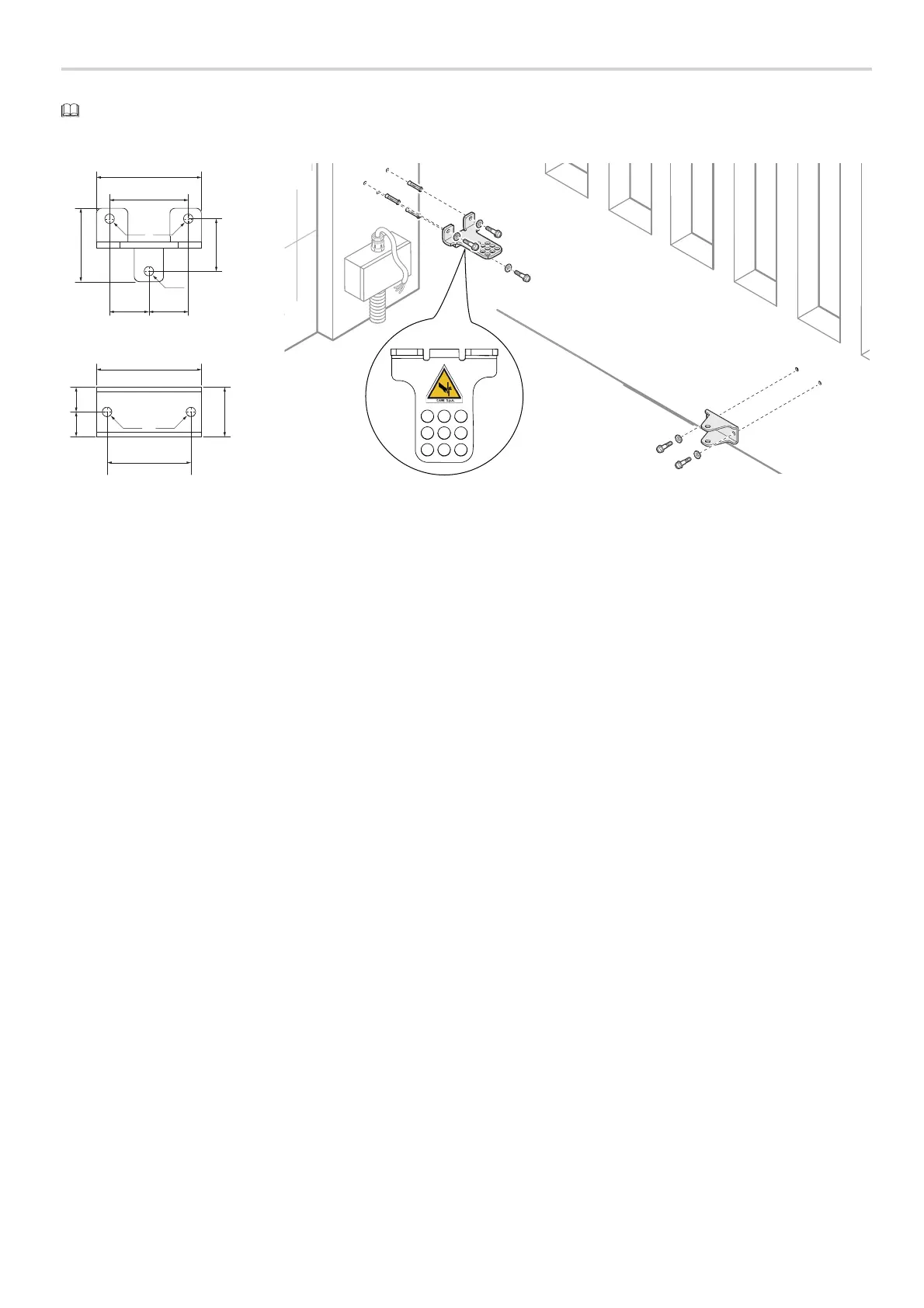

Fastening the brackets
Secure the post bracket with plugs and screws.
The holes on the bracket fixing plate allow you to vary the opening angle of the gate leaf.
Fasten in place with screws or weld the bracket to the gate.
100
100
75
70
==
==
80
ø 9
47
50
ø 9
ø 9
