p. 11 - Manual FA01338-EN - 01/2020 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

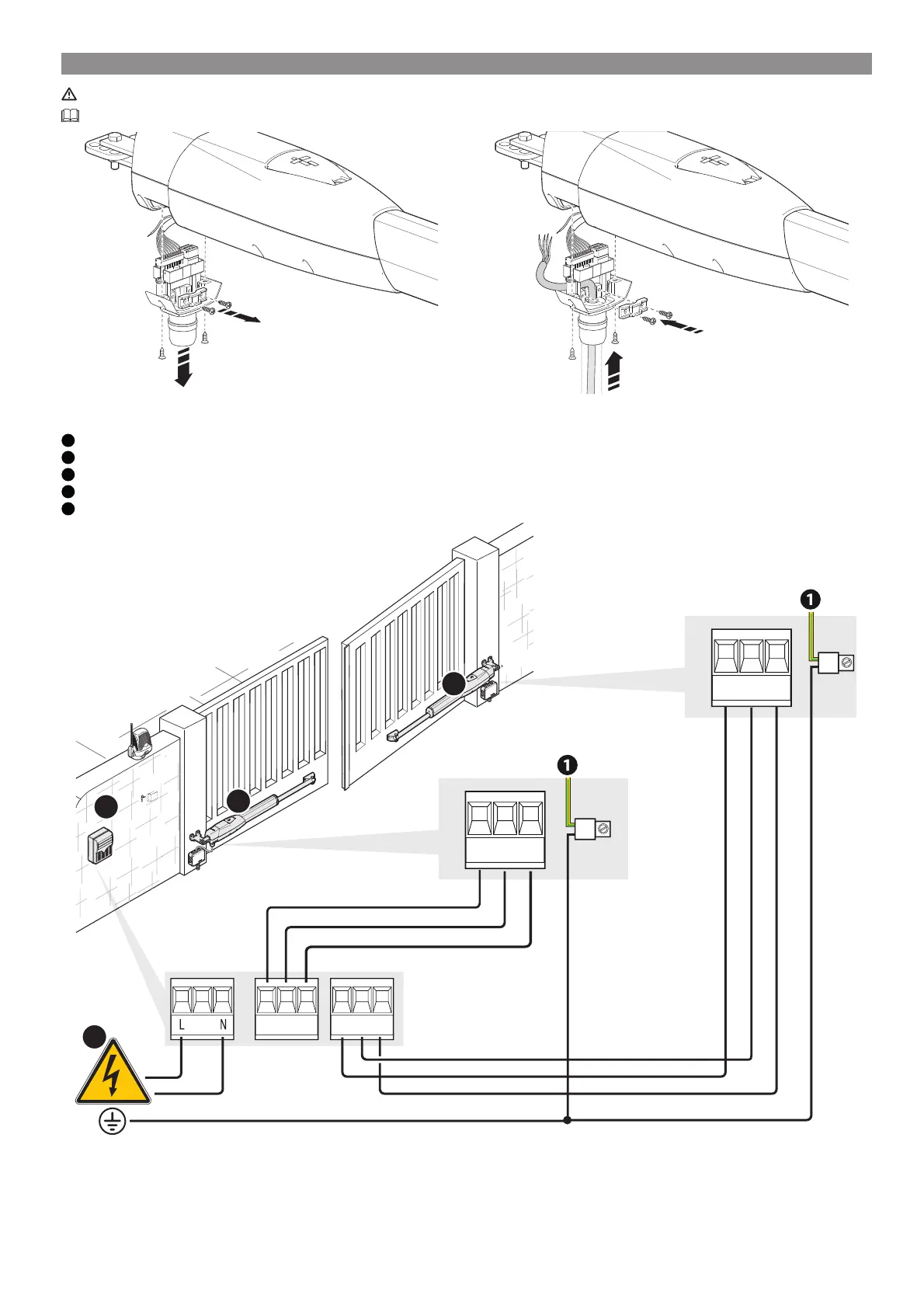

ELECTRICAL CONNECTIONS
Before working on the control panel, disconnect the mains power supply and remove the batteries, if any.
Remove the protective cover to access the terminal board.
A
Control panel
B
Gearmotor delayed while opening
C
Gearmotor delayed while closing
D
230 V AC - 50-60 HZ power supply input
1
Yellow/green cable
M1 N1 ENC1
M N ENC
M N ENC
M2 N2 ENC2
B
C
A
D
