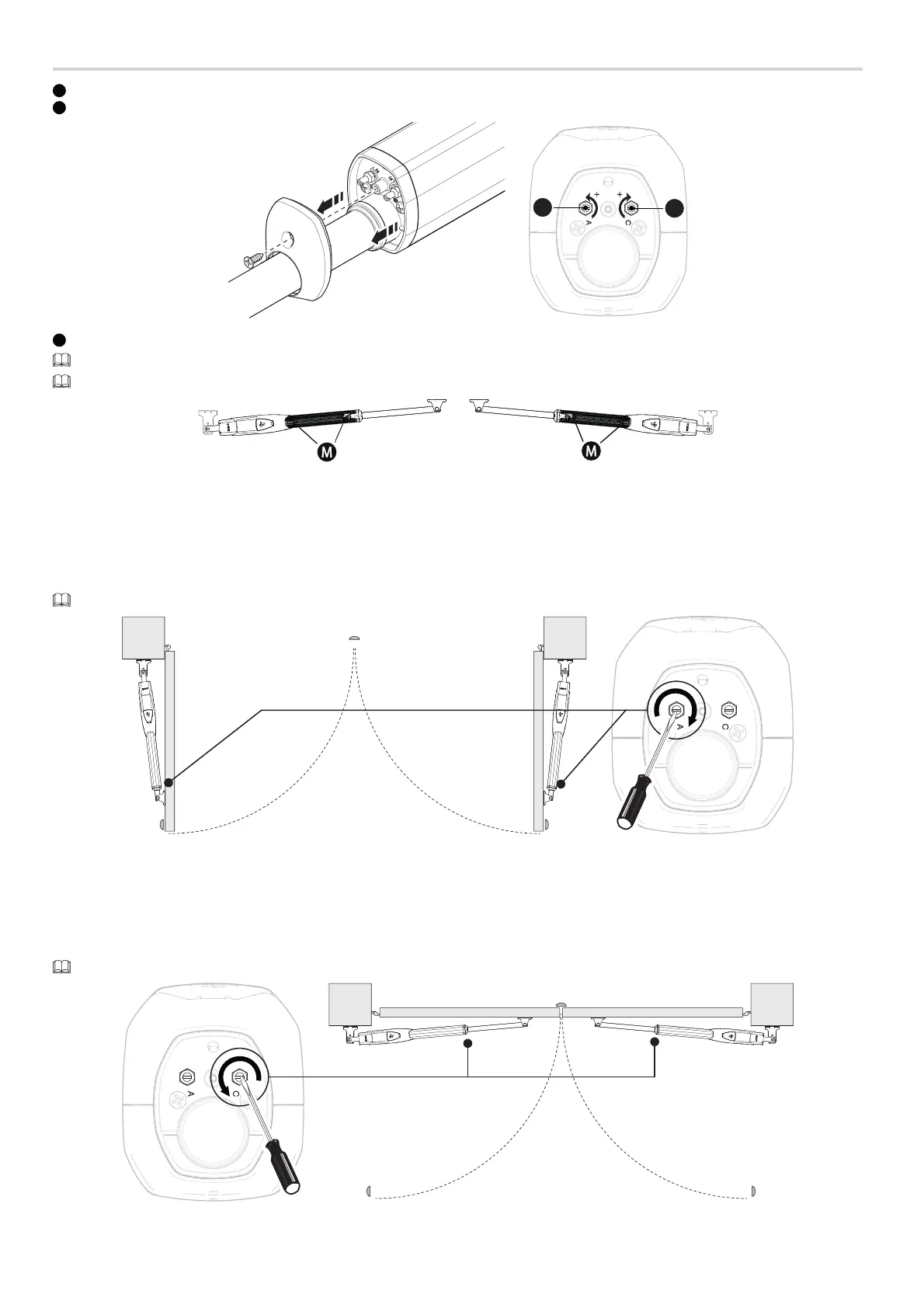

Determining the end-of-travel points with micro limit switches
A
Rod for determining the opening end-of-travel point
C
Rod for determining the closing end-of-travel point
A
C
M
Micro limit switches
The micro switches are positioned at the far ends of the travel range.
To move the microswitch 10 mm in either direction, turn the rod 20 times.
Determining the opening end-of-travel points
Release the gearmotor.
Open the gate manually.
Send an opening command.
At the same time, turn the rod for determining the opening end-of-travel point CLOCKWISE until the gearmotor stops.
Leave the rod nut loose to determine the end-of-travel points.
Determining the closing end-of-travel points
Release the gearmotor.
Close the gate manually.
Send a closing command.
At the same time, turn the rod for determining the closing end-of-travel point ANTICLOCKWISE until the gearmotor stops.
Leave the rod nut loose to determine the end-of-travel points.
