p. 13 - Manual FA01338-EN - 01/2020 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

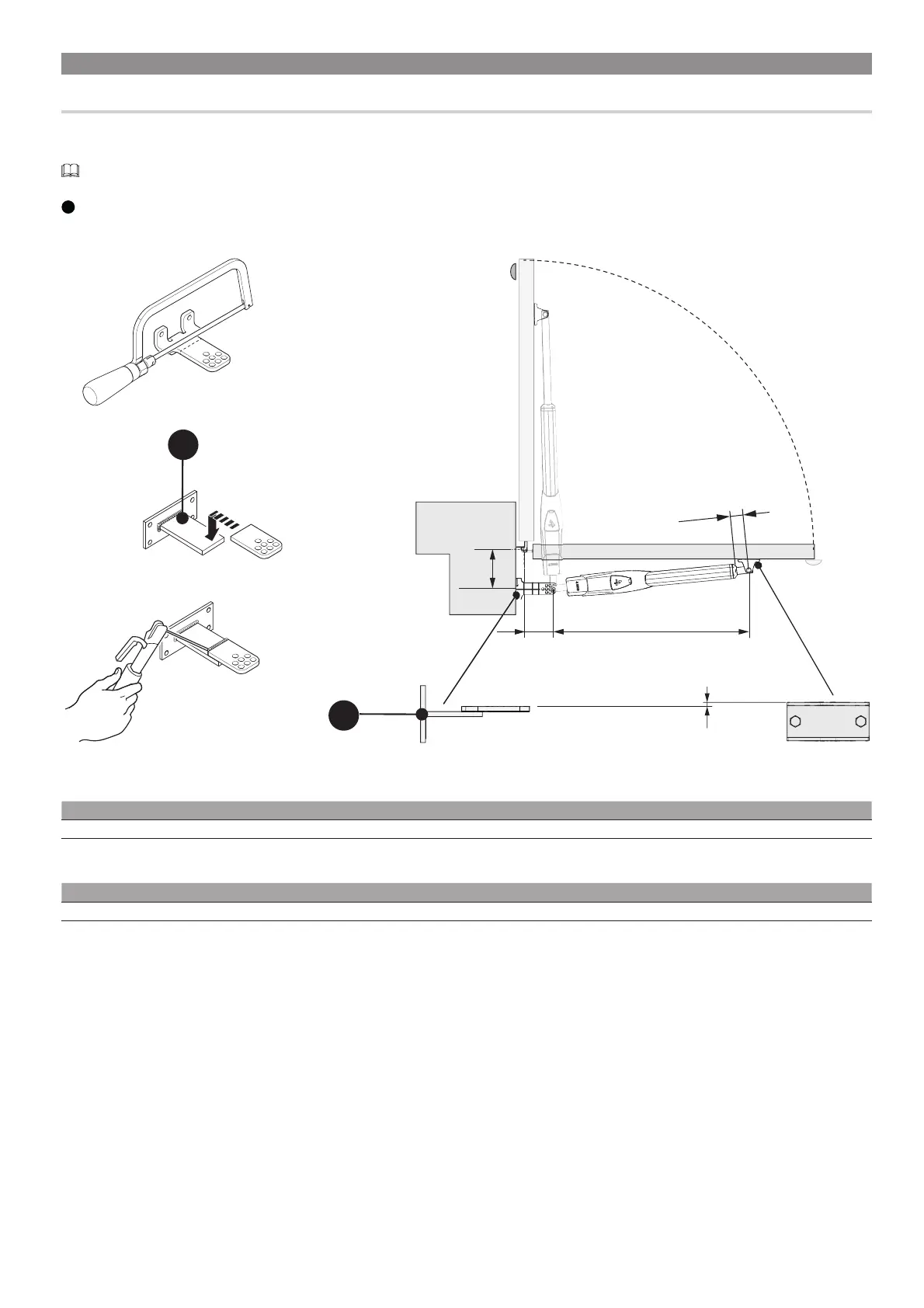

OUTWARDS OPENING
Establishing the bracket fastening points
Close the gate manually.
First determine where the gate bracket needs to be positioned, then where the post bracket needs to be positioned.
Respect the values indicated in the table.
A
Additional bracket (not included)
1
2
3
A
B
E
A
5
60
A
ATS30DGS ATS30DGR
Gate-leaf opening (°) A B E
90° 150 150 910
ATS50DGS
Gate-leaf opening (°) A B E
90° 200 200 1030
