p. 5 - Manual FA01338-EN - 01/2020 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions
PRODUCT DATA AND INFORMATION
Key
This symbol shows which parts to read carefully.
This symbol shows which parts describe safety issues.
This symbol shows what to tell users.
The measurements, unless otherwise stated, are in millimetres.
Description
801MP-0070
ATS30DGS - Irreversible telescopic gearmotor 24 V with encoder for swing gates with Max. C up to 200 mm with leaf up to 3 m and 400 kg. Grey RAL7024.
801MP-0080
ATS50DGS - Irreversible telescopic gearmotor 24 V with encoder for swing gates with Max. C up to 200 mm with leaf up to 5 m and 400 kg. Grey RAL7024.
801MP-0110
ATS30DGR - Irreversible telescopic gearmotor 24 V with encoder for swing gates with Max. C 200 mm, with remote release, for leaves up to 3 m and 400 kg. Grey
RAL7024.
Intended use
Solutions for applications in residential buildings and apartment blocks
Any installation and/or use other than that specified in this manual is forbidden.

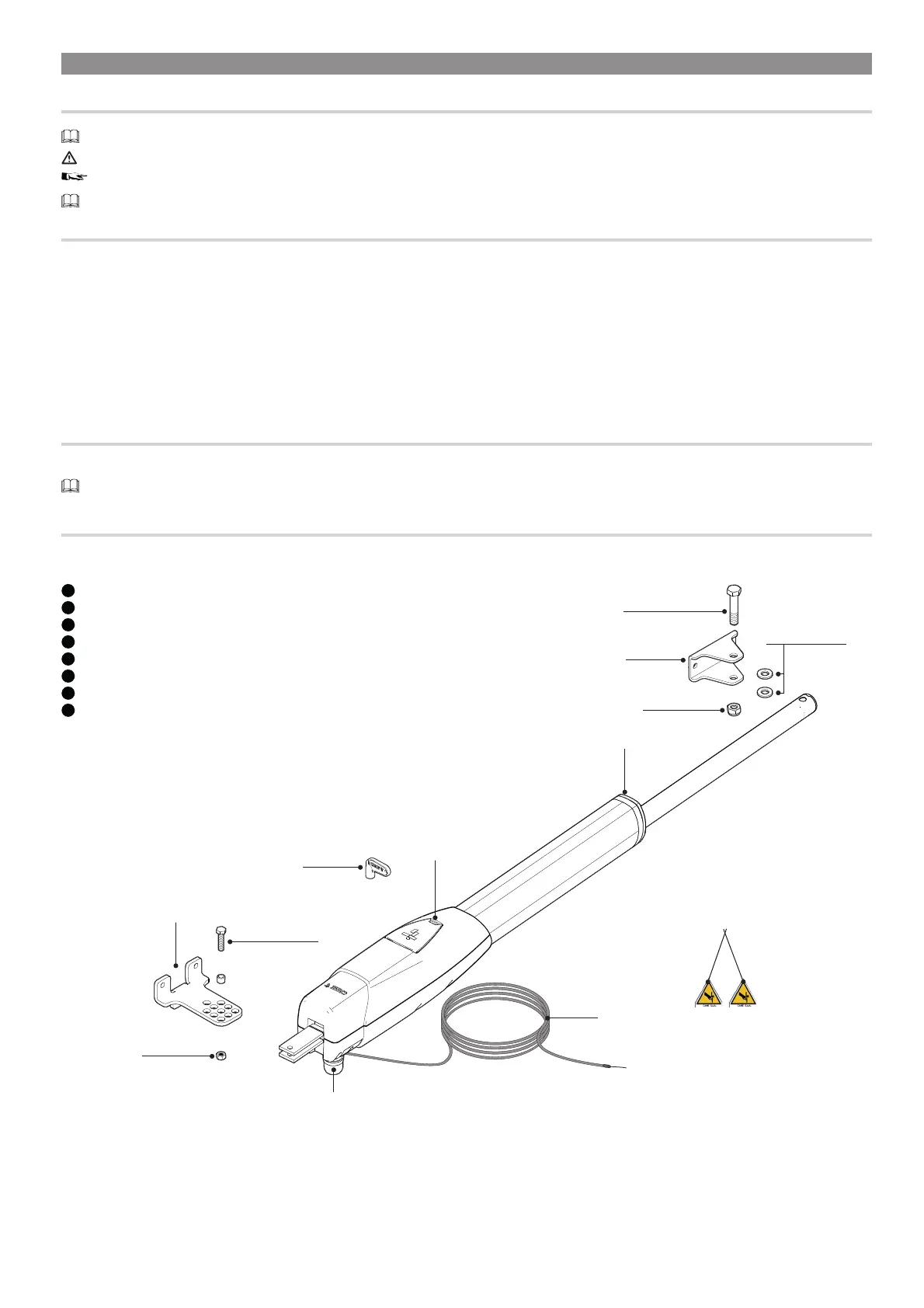

Description of parts
Gearmotor
1
Gate bracket
2
Door to access the end-of-travel adjustment screws
3
Door to access the release mechanism
4
Sheath connector
5
Post bracket
6
Release key
7
Release cord*
8
Cutting hazard labels
* ATS30DGR
3
A
6
2
E
7
8
M8x35 UNI5737
M8 UNI5588
M12x60 UNI5737
M12 UNI7474
M12,1 UNI6592
