p. 6 - Manual FA01338-EN - 01/2020 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

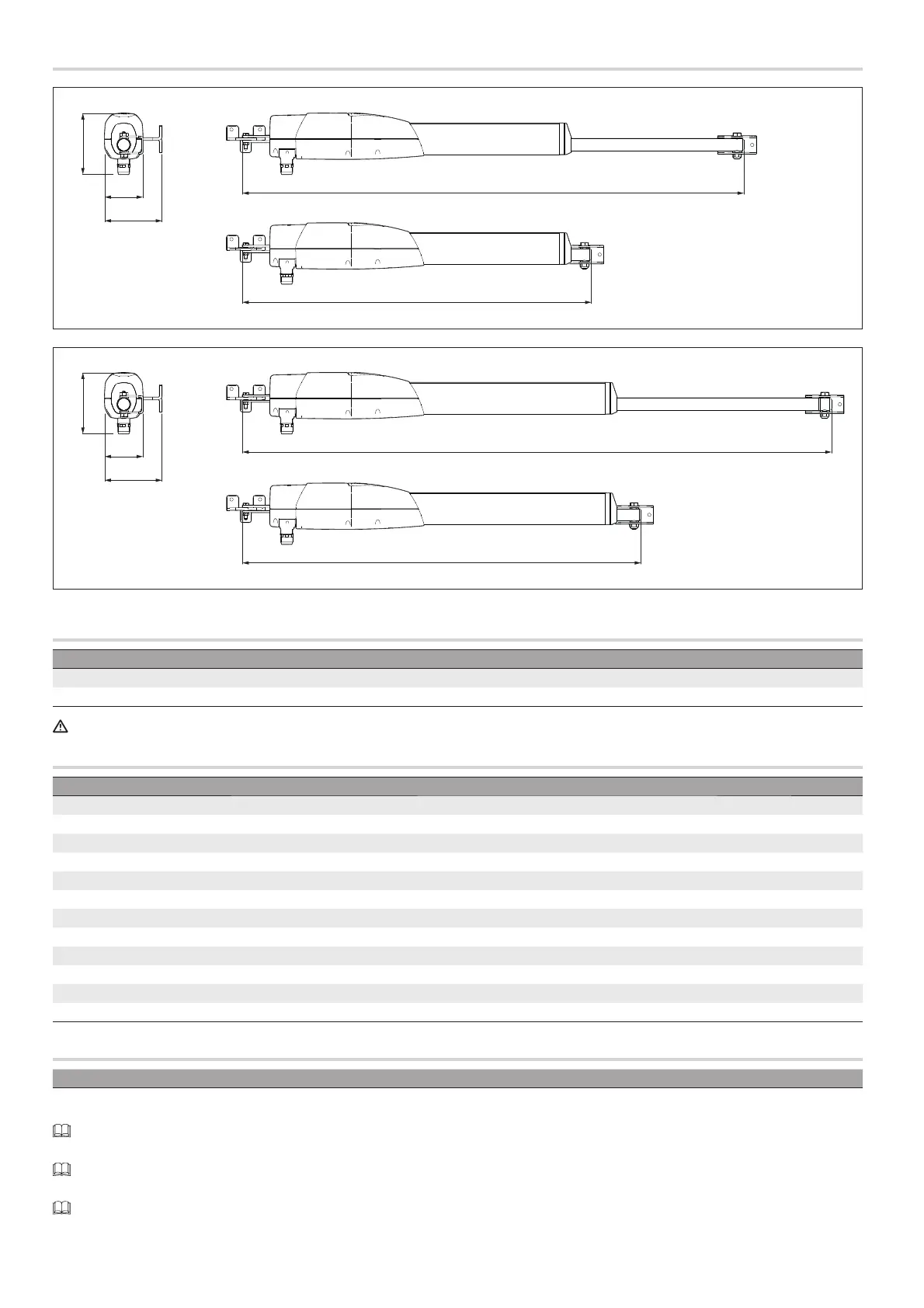

Size
1320
920
160
100
150
ATS30DGS
ATS30DGR
160
100
150
1550
1050
ATS50DGS
Usage limitations
MODELS ATS30DGS ATS50DGS ATS30DGR
Gate-leaf length (m) 3 2,5 2 - 5 4 3 2,5 2 - 3 2,5 2
Gate-leaf weight (Kg) 400 600 800 - 400 500 600 800 1000 - 400 600 800
For leaves longer than 2.5 m, install an electric lock.
Technical data
MODELS ATS30DGS ATS50DGS ATS30DGR
Motor power supply (V) 24 DC 24 DC 24 DC
Power (W) 80 80 80
Current draw (mA) 8 MAX 8 MAX 8 MAX
Operating temperature (°C) -20 ÷ +55 -20 ÷ +55 -20 ÷ +55
Thrust (N) 400 ÷ 3000 400 ÷ 3000 400 ÷ 3000
Opening time at 90° (s) 15 ÷ 30 15 ÷ 30 15 ÷ 30
Cycles/hour CONTINUOUS OPERATION CONTINUOUS OPERATION CONTINUOUS OPERATION
Sound pressure level (dB A) ≤70 ≤70 ≤70
Protection rating (IP) 54 54 54
Insulation class I I I
Reduction ratio (i) 28 28 28
Weight (kg) 7.5 8 7.5
Cable types and minimum thicknesses
Cable length (m) up to 20 from 20 to 30
Motor with encoder power supply 24 V DC 4G x 1.5 mm² 4G x 2.5 mm²
When operating at 230 V and outdoors, use H05RN-F cables compliant with 60245 IEC 57 (IEC); when operating indoors, use H05VV-F cables compliant
with 60227 IEC 53 (IEC). For power supplies up to 48 V, you can use FROR 20-22 II cables compliant with EN 50267-2-1 (CEI).
If the cable lengths differ from those specified in the table, define the cable cross-sections according to the actual power draw of the connected devices
and in line with regulation CEI EN 60204-1.
For multiple, sequential loads along the same line, recalculate the values in the table according to the actual power draw and distances. For information
on connecting products not covered in this manual, please see the documentation accompanying the products themselves.
