2) Press a transmitter key to send the
code; the LED will remain lighted to signal
memorization.
T2
CH2 = Channel for direct commands to an auxiliary device or for the control of two paired motors,
connected to B1-B2.
9.3 Memorizing the code on the command board
CH1 = Channel for direct commands to a function of the ratiomotor control unit (“open only” / “open-clo-
se-invert direction” commands or the “open-stop-close-stop” command, depending on dip-switch 2 - 3
settings).

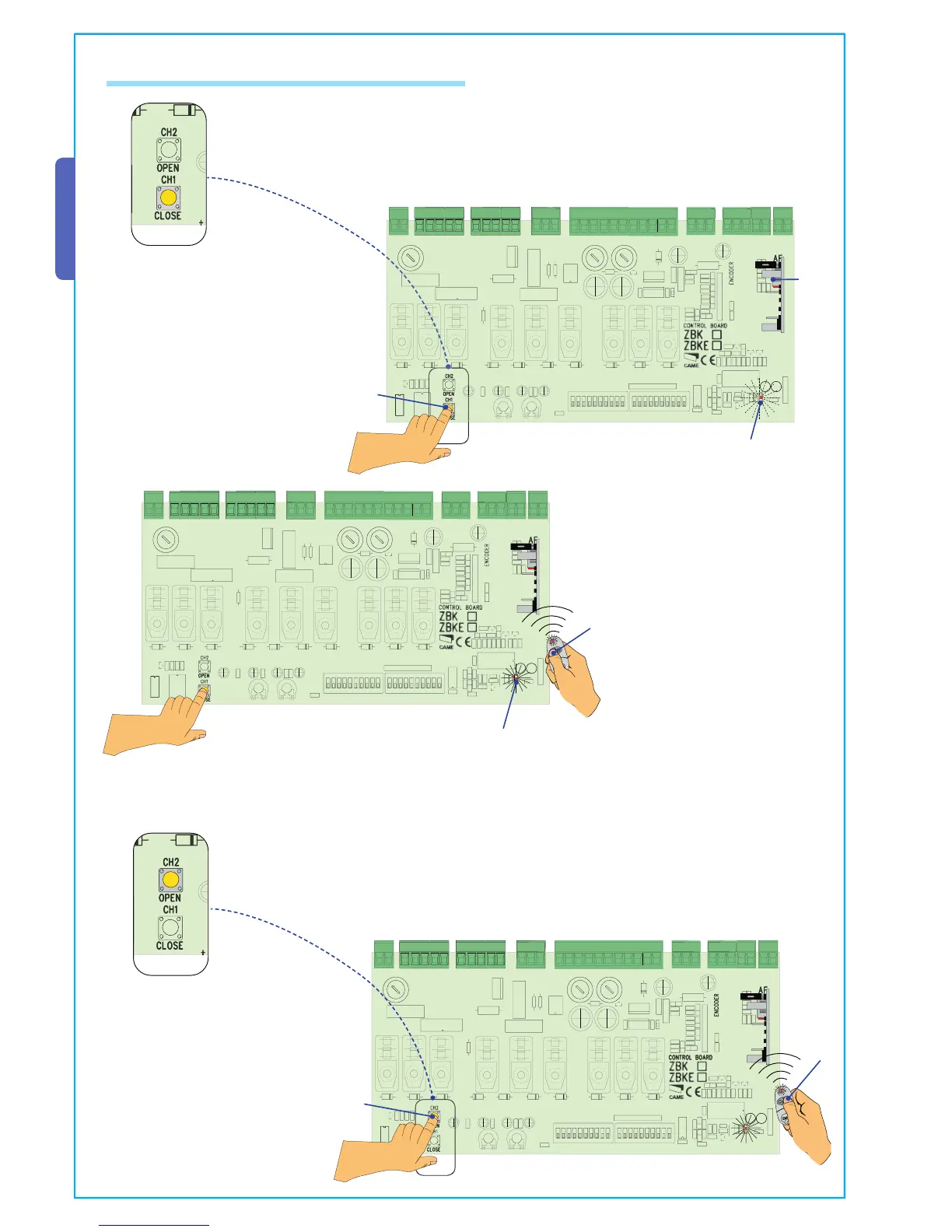

1) Keep the "CH1" key pressed on the base
card (ref. point 11, page 12), the signal LED
will fl ash.
CH1
T1
3) Repeat the procedure of parts 1
and 2 with the “CH2” key, associating
it wit another transmitter key.
N.B.: if the code needs to be chan-
ged, repeat the sequence described
above.
AF
CH2
Flashing LED
Lit LED
