CAME BK 2200

#!-%



MAX






4.4 Overall dimensions
Measurements in mm
7
1
3
2
4
5
6
3
4
2
8
7
1
6
5
8
9
10

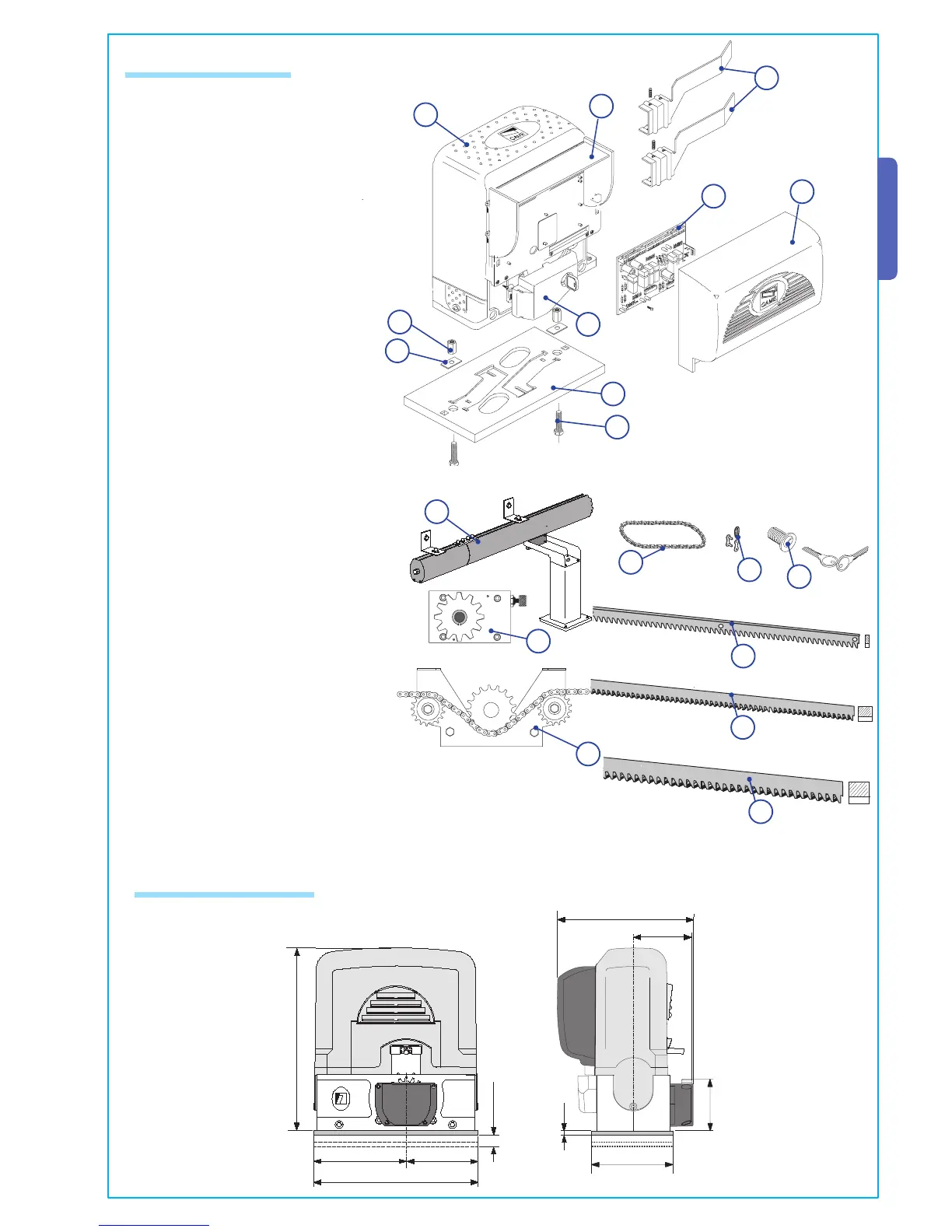

4.3 Parts description
GEARMOTOR UNIT
1 - Gearmotor
2 - Board cover support
3 - End-stop flaps
4 - ZBK-ZBKE basic control board
5 - Electric board front cover
6 - Release door
7 - Base plate
8 - Securing screws
9 - Plates for securing screws
10 - Nuts
ACCESSORIES
1 - R001 - Cylinder lock with DIN keys
2 - BSF - Braking device
3 - BRC - Cable winding device
4 - B4353 - Chain transmission device
5 - CCT - Simple 1/2” chain
6 - CGIU - 1/2” chain joint
7 - CGZ - Galvanized steel 22 x 22 module 4 rack
8 - CGZS - Galvanized steel 30 x 8 module 4 rack
with fastening screws, holes and supports
9 - CGZ6 - 30 x 30 module M6 galvanised
rack made of laminated steel for BK2200 and
BKE2200 automated units;
9
3
All the data and information contained herein is considered subject to change at any time and at our discretion
