To open the access door, insert the key A, push down and rotate clockwise. Then release the ratio motor by using key B on
the threelobed pin and turning it in the direction indicated.
To re-lock the reduction gear, turn key B in the direction indicated until it will move no further, without forcing it: the three-
sid ed pin will settle into place at the fi rst movement.

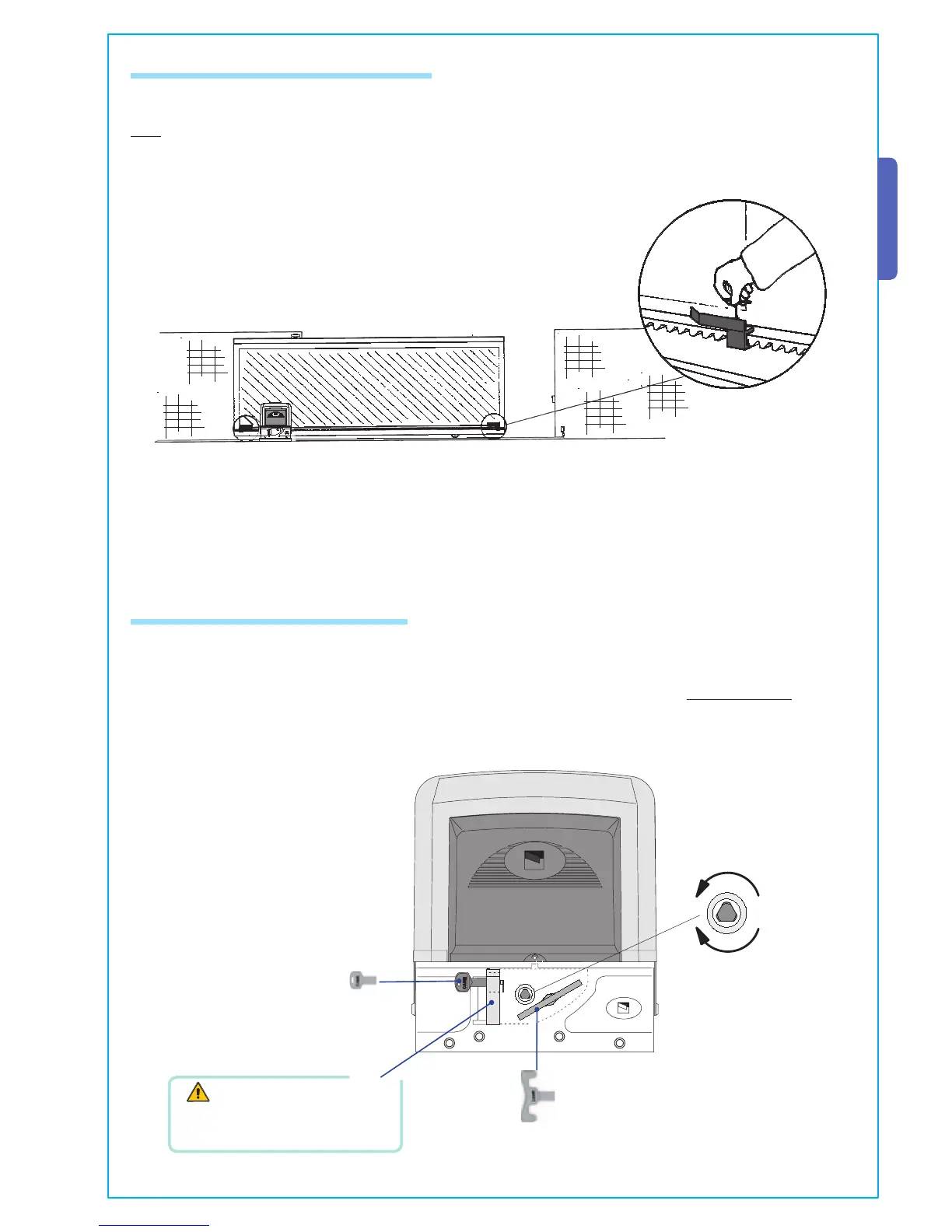

5.7 Attaching the switch tabs (BK series)
Position the limit-switch tabs (whose positions determine the limits of gate travel) on the rack.
Note: do not allow the gate to strike the mechanical stops in the open or closed positions.
5.8 Manual release of the gearmotor
ATTENTION: the opening of the
unblock panel arrests the motor.
