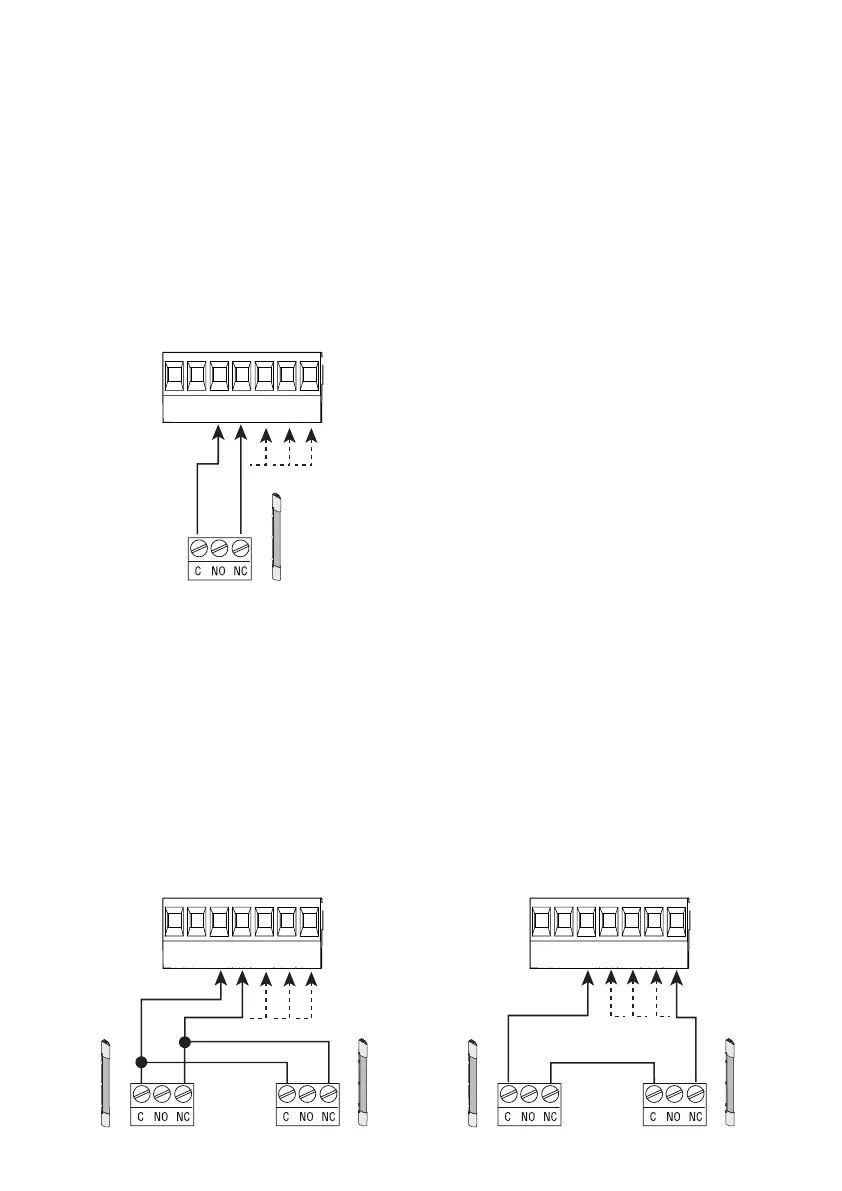

Serial connection of a pairParallel connection of a pair (this is best)
Pair of sensitive safety-edges
Confi gure contact CX, CY, CZ or CK (NC), input for safety devices such as sensitive safety-edges as:
- [r7 (two sensitive safety-edges )]one pair sensitive safety-edges (with 8K2 resistor), reopening when closing.
When the gate is closing, opening the contact triggers the inversion of movement until the gate is fully open again;
(*);- [r8 (two sensitive safety-edges )] , one pair sensitive safety-edges (with 8K2 resistor), reclosing when
opening. When the gate is opening, opening the contact triggers the inversion of movement until the gate is fully
closed again;(*);
(*) If the [Remove obstruction] function is turnedon, opening the contact triggers the inversion of movement
until there is enough space to remove the obstructions.
If unused, contacts CX, CY, CZ or CK (NC) must be turned o when programming.
Sensitive safety-edge
Confi gure contact CX, CY, CZ or CK (NC), input for safety devices such as sensitive safety-edges as:
-edge with clean contact) or [r7] (sensitive safety-edge with 8K2 resistor), reopening when closing. When the gate
is closing, opening the contact triggers the inversion of movement until the gate is fully open again;
- edge with clean contact) or [r7] (sensitive safety-edge with 8K2 resistor), reclosing when opening. When the gate
is opening, opening the contact triggers the inversion of movement until the gate is fully closed again (*);
If the [Remove obstruction] function is turnedon, opening the contact triggers the inversion of movement until
there is enough space to remove the obstruction.
If unused, contacts CX, CY, CZ or CK (NC) must be turned o when programming.
