INSTALLING
⚠
The following illustrations are mere examples. Consider that the space available where to fi t the barrier and
accessories will vary depending on the area where it is installed. It is up to the installer to fi nd the most suitable
solution.

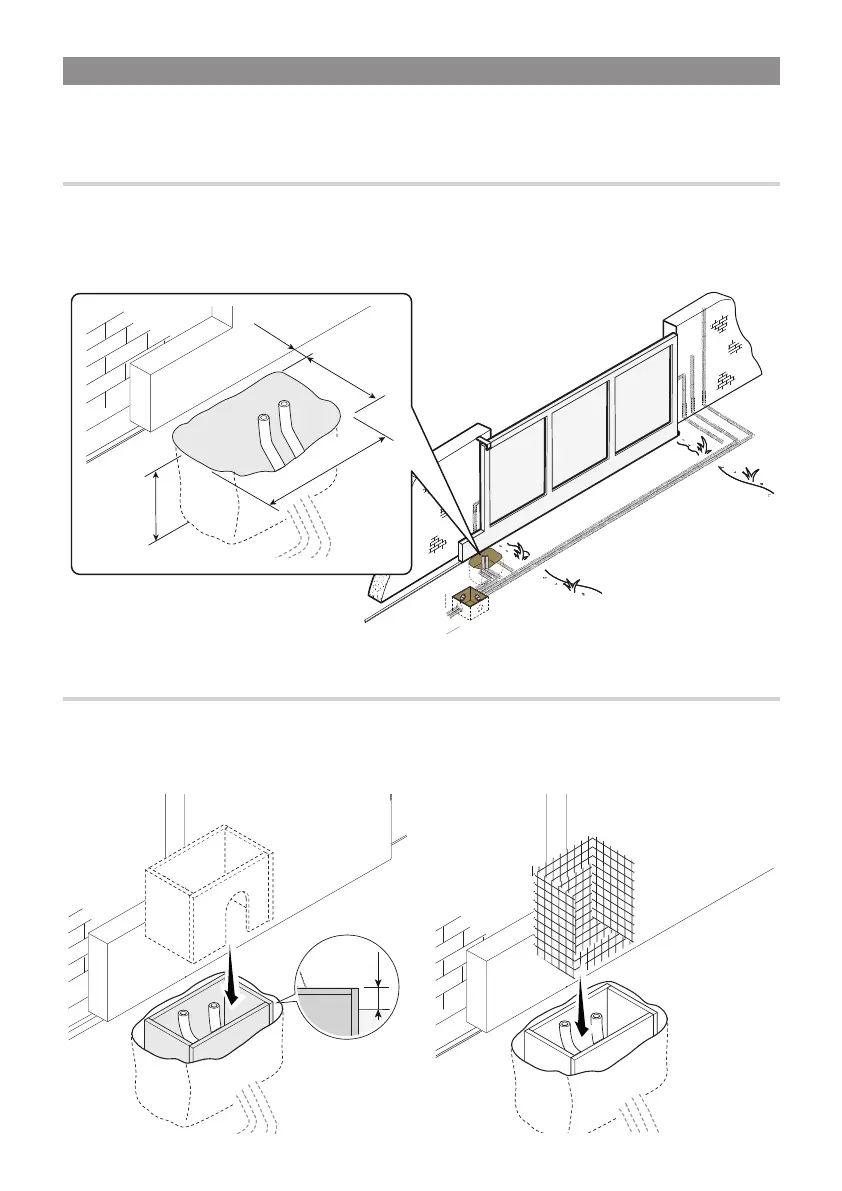

Corrugated tube laying
Dig a hole for the foundation frame.
Set up the corrugated tubes needed for the wiring coming out of the junction pit.
Use Ø 40 mm corrugated tubes to connect the gearmotor to the accessories.
The number of tubes depends on the type of system and the accessories you are going to fi t.
Laying the anchoring plate
Set up a foundation frame that is larger than the anchoring plate and sink it into the dug hole. The foundation frame
must jut out by 50 mm above ground level.
Fit an iron cage into the foundation frame to reinforce the concrete.
