CAME BX-74 User Manual

3
1
8
2
6
6
7
9
10
10
4
5
11
p.
5
- Manual code:
FA00127-EN
FA00127-EN v.
1
- 05/2015 - © Came S.p.A. - The manual's contents may be edited at any time without notice.

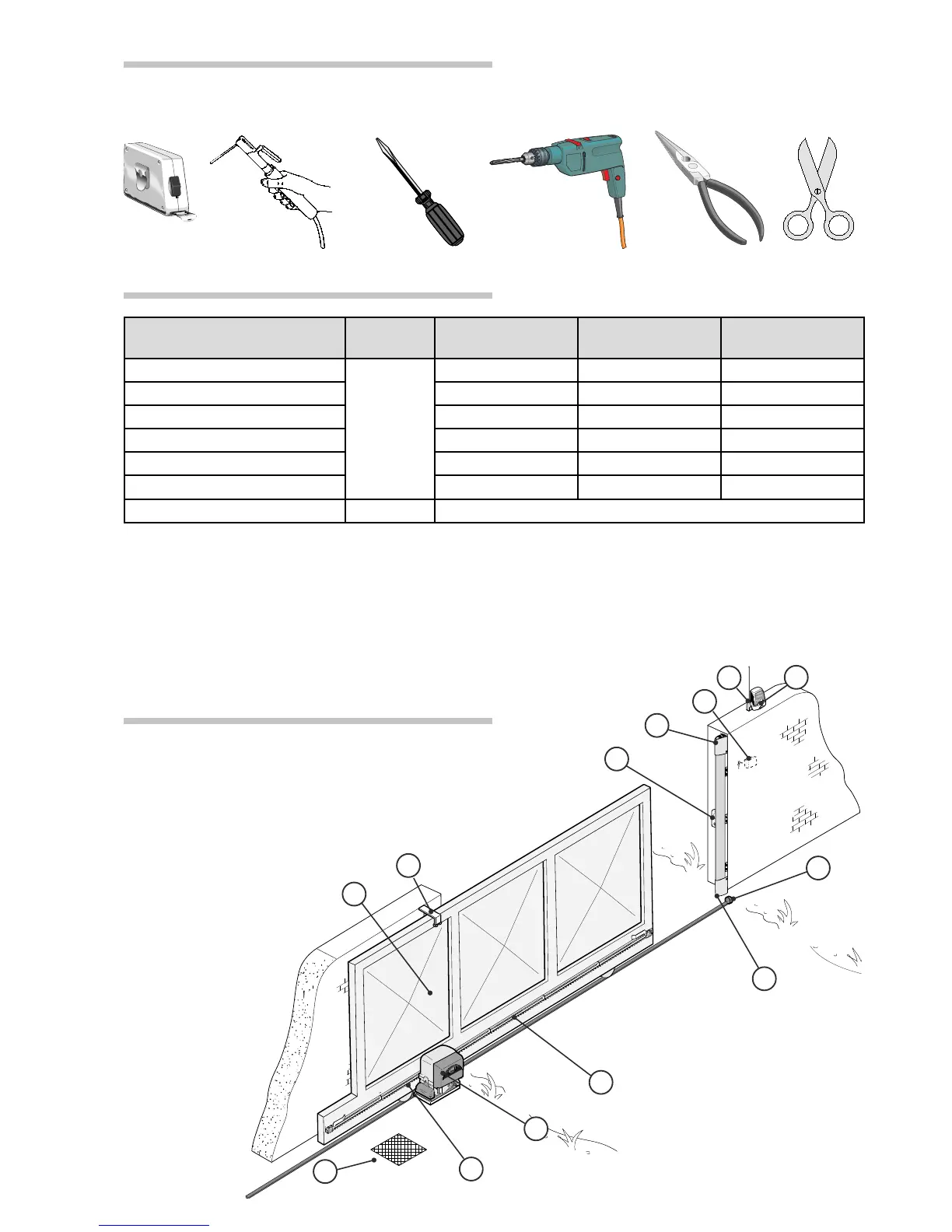

Make sure you have all the tools and materials you will need for the installation at hand to work in total safety and compliance with the
current standards and regulations. The following figure illustrates the minimum equipment needed by the installer.
N.B.: If the cable length differs from that specified in the table, then you must determine the proper cable diameter in the basis of the
actual power draw by the connected devices and depending on the standards specified in CEI EN 60204-1.
For connections that require several, sequential loads, the sizes given on the table must be re-evaluated based on actual power draw
and distances. When connecting products that are not specified in this manual, please follow the documentation provided with said
products.
5.3 Cable list and minimum thickness
Connection Type of cable
Length of cable
1 < 10 m
Length of cable
10 < 20 m
Length of cable
20 < 30 m
Control panel power supply 230V
FROR CEI
20-22
CEI EN
50267-2-1
3G x 1,5 mm
2
3G x 2,5 mm
2
3G x 4 mm
2
Flashing light 2 x 0,5 mm
2
2 x 1 mm
2
2 x 1,5 mm
2
Photocell transmitter 2 x 0,5 mm
2
2 x 0.5 mm
2
2 x 0,5 mm
2
Photocell receiver 4 x 0,5 mm
2
4 x 0,5 mm
2
4 x 0,5 mm
2
Accessories power supply 2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 1 mm
2
Safety and control devices 2 x 0,5 mm
2
2 x 0,5 mm
2
2 x 0,5 mm
2
Antenna connection RG58 max. 10 m
5.2 Tools and materials
1) BX74-78 assembly
2) Rack
3) Reception Antenna
4) Flashing light
5) Keyswitch selector
6) Safety photocells
7) Electric cable junction box
8) Mechanical endstops
9) Guide rails
10) Endstop fi ns
11) Sensitive edge
5.4 Standard installation

CAME BX-74 Specifications

General

Operating Temperature	-20°C to +55°C
Motor Voltage	230 V AC
Power Supply	230V AC
Safety Features	Obstacle detection
Remote Control	Yes
Manual Operation	Yes
