CAME BX-74 User Manual

H
p.
7
- Manual code:
FA00127-EN
FA00127-EN v.
1
- 05/2015 - © Came S.p.A. - The manual's contents may be edited at any time without notice.

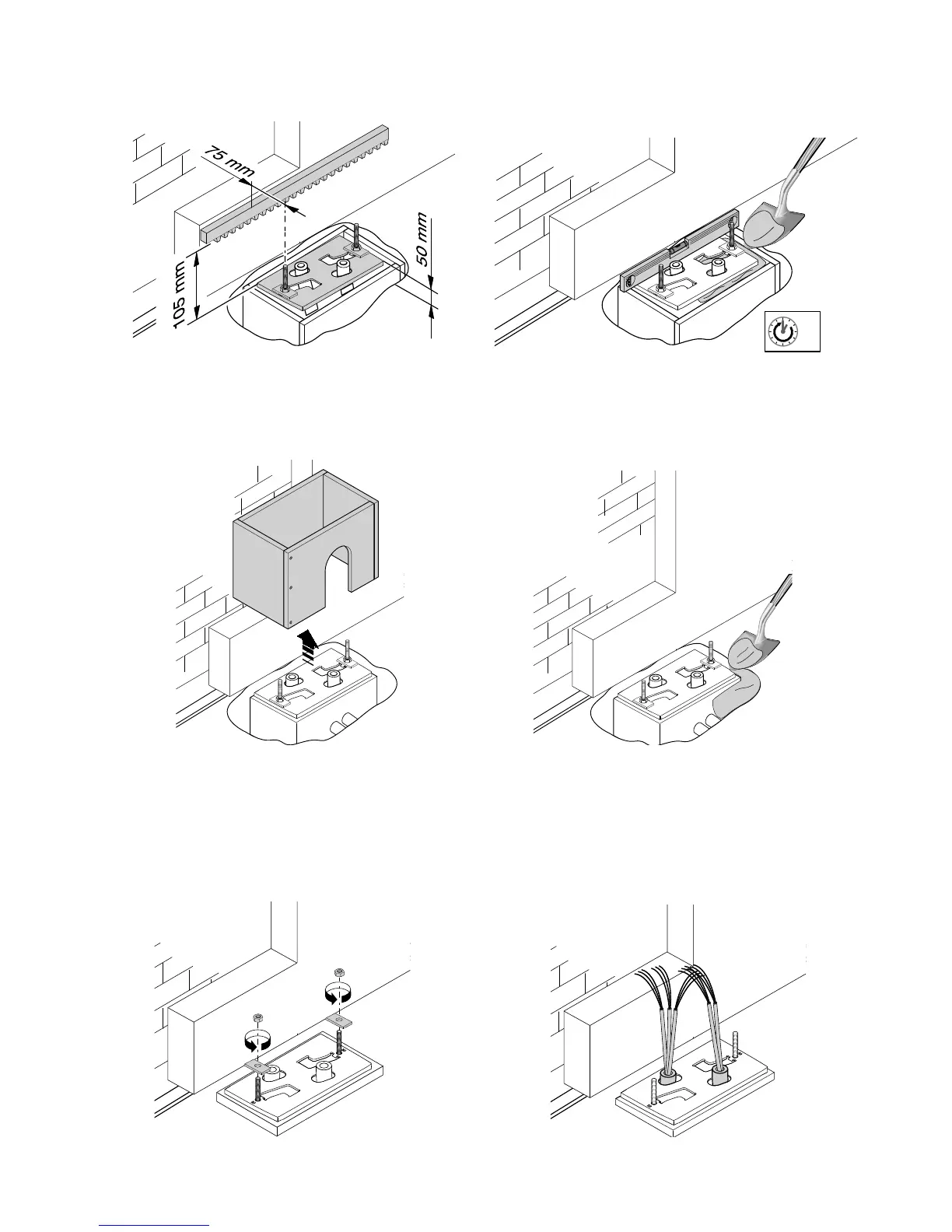

- To position the plate in relation to the rack please see the measurements on the diagram.
Fill the form box with cement and wait for at least 24 hours for it to solidify.
- Remove the form box, fi ll the pit around the cement block with soil.
- Unbolt the nuts and washers from the bolts. The securing plate must be clean, perfectly aligned and with the bolt threads completely
on the surface.
Insert the electric cables into the tubes until they exit about 400mm.

CAME BX-74 Specifications

General

Operating Temperature	-20°C to +55°C
Motor Voltage	230 V AC
Power Supply	230V AC
Safety Features	Obstacle detection
Remote Control	Yes
Manual Operation	Yes
