3 12/2016 © CAME S.p.A. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME S.p.A. to notify users.
MALFUNCTIONS POSSIBLE CAUSES CHECK AND REMEDIES
The gate will not
open nor close
• There is no power
• The gearmotor is released
• The transmitter’s batteries are run down
• The transmitter is broken
• The stop button is either stuck or broken
• The opening/closing button or the keyswitch are stuck
• Check that the power is up
• Lock gearmotor (Chapt. 5.8)
• Replace batteries
• Call assistance
• Call assistance
• Call assistance
The gate opens but
will not close
• The photocells are engaged • Check that photocells are cle-
an and in good working order
• Call assistance
The flashing light
does not work
• The bulb is burnt • Call assistance

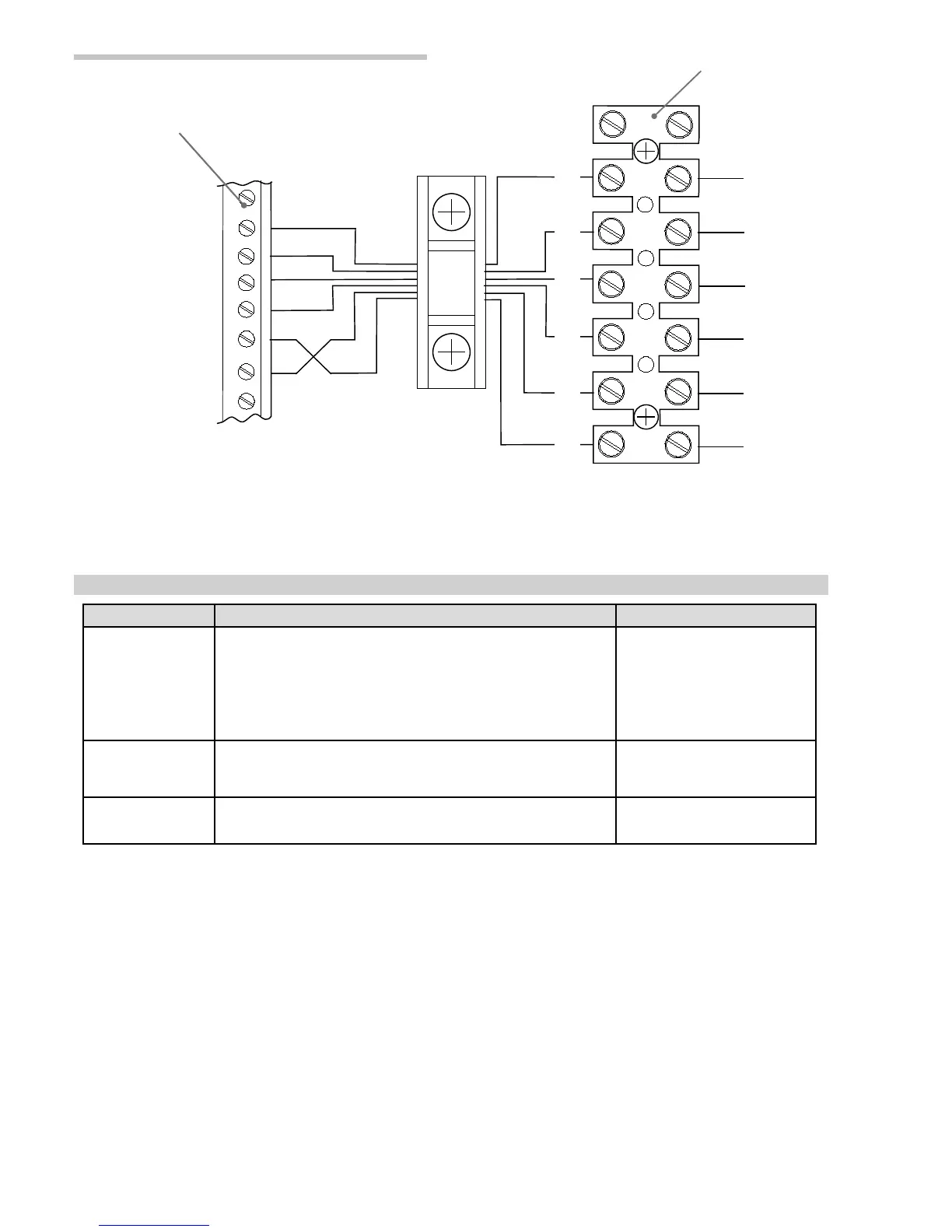

Connecting to the ZL19N/ZL170N control panel
M -N
Connecting the motor
F -Fa
Opening endstop microswitch
R -Rc
Closing-speed brake microswitch
Motor 1: C-Rc1-Fa1-C-M1-N1
Motor 2: C-Rc2-Fa2-C-M2-N2
Motor terminals
Control panel terminal board
TROUBLESHOOTING
