3 12/2016 © CAME S.p.A. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME S.p.A. to notify users.

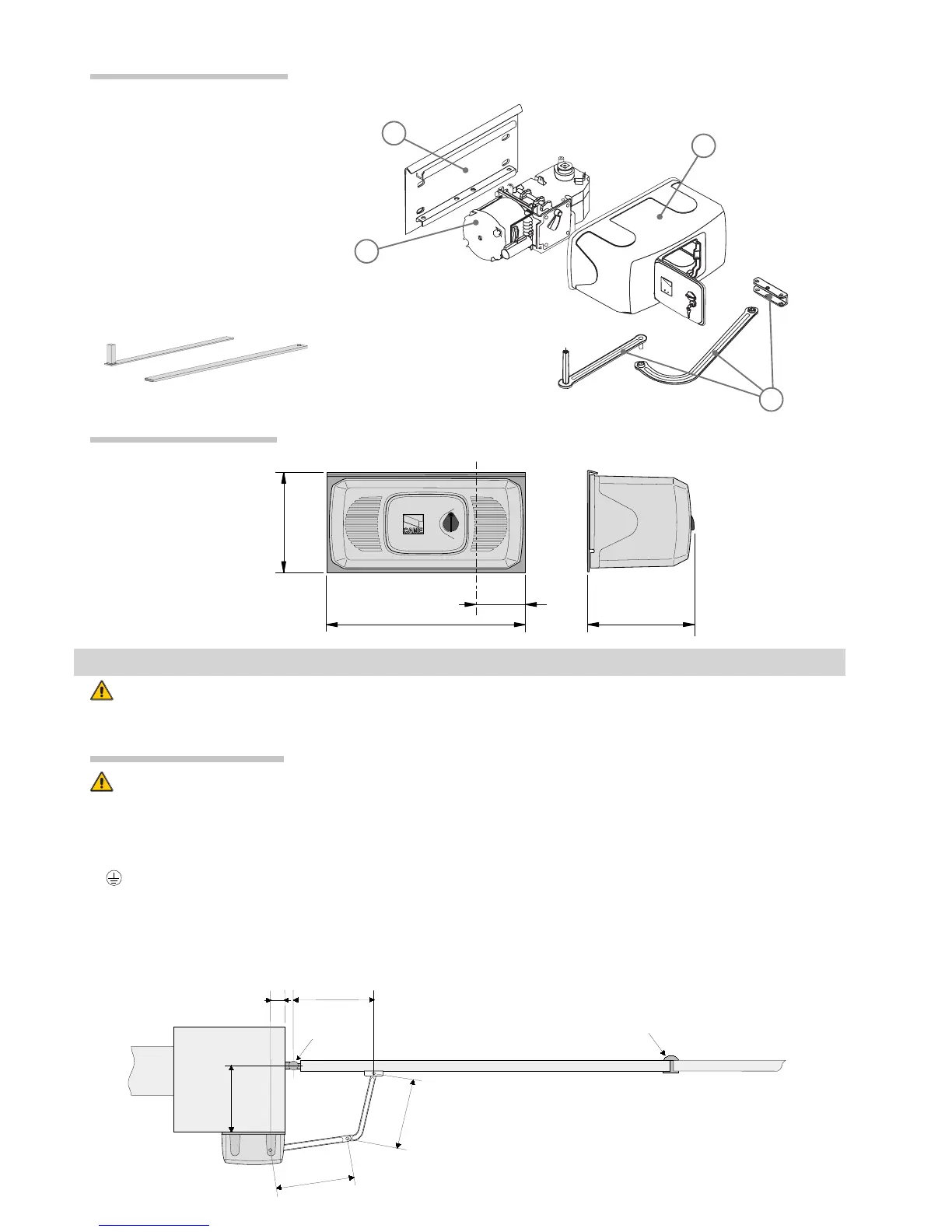

Description of parts
Overall dimensions
Before installing, do the following:
• Make sure the structure of the gate is sturdy, the hinges work and that the is no friction between moving and non-moving parts;
• Make sure the path of the electrical cables complies with the command and safety instructions;
• That there is a (soundly secured to the ground) mechanical stop to prevent the gate leaf/gearmotor from over extending
.
• You may perform internal back up circuit connections, provided you use additional insulation when compared to the other
internal live parts;
• Make sure you have suitable tubing and conduits for the electrical cables to pass through and be protected against mechanical
damage.
Installation must be carried out by expert qualified personnel and in full compliance with current regulations.
INSTALLATION
Preliminary checks
Pillar
Gate leaf
End stop
* If distance B is 0 to 300 mm, distance A
must be at least 110 mm
If distance B is 300 to 380 mm, distance A
must be at least 150 mm
Hinge
1) Base plate
2) Gearmotor assembly
3) Motor cover
4) Articulated transmission arm
