CAME FA4024CB User Manual

24V 17V 0
L1T L2T L N
10 11 E ES R
x
THERMAL
MOTOR 1
M N
MOTOR 2
M N
+ -
L2T L1T
1 2 3 4
0 12 24
10 11 E ES Rx Tx 1 2 3 3P 4 5 7 CX CY
THERMAL
Page 15 - Manual code: 119DW01EN vers. 5 2016/05 © CAME S.p.A. - The data and information provided in this manual are subject to change at any time without prior notice by CAME S.p.A.

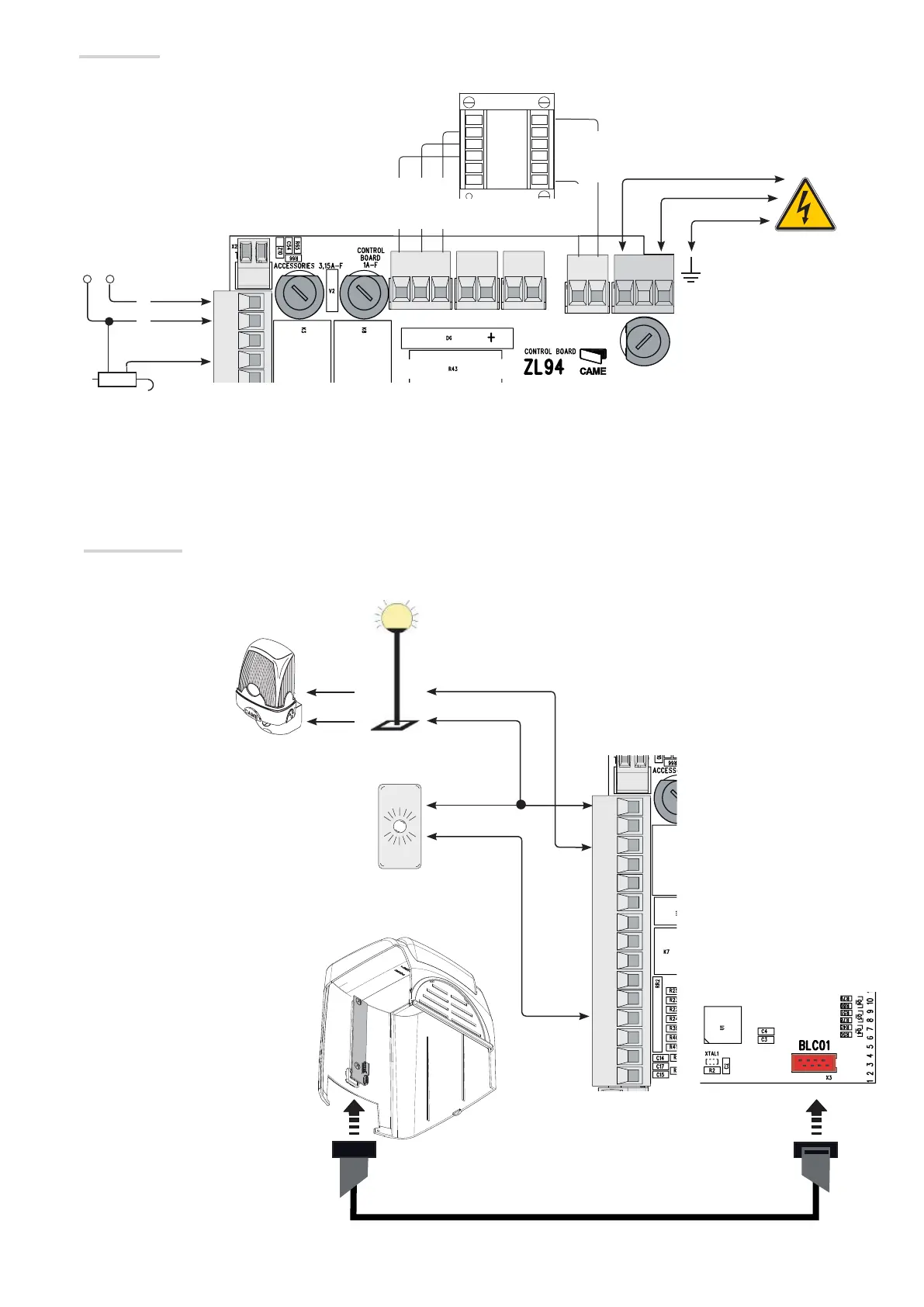

Power supply
Warning devices
Power supply 230 VAC
frequency 50/60 Hz
Electric lock 12 V - 15 W max
FA001 - LED control board. Indicates the stages
of movement of the gate and anomalies.
Gate open indicator light (contact capacity: 24 V - 3 W
max.). Indicates the status of the gate, see F 10 function.
Cycle lamp (contact capacity: 24 V - 25 W max.). Lights the area of operation. It remains on
from the start of leaf opening to complete closing (including the automatic closing time).
Terminals for powering the
accessories at 24 V AC.
Transformer
Orange
Purple
Blue
Red
White
Flashing light (contact
capacity: 24 V - 25 W max.).
Flashes during gate opening
and closing.
