GENERAL INSTALLATION INSTRUCTIONS
⚠
Installation must be carried out by qualified and experienced personnel in compliance with applicable regulations.
Preliminary checks
⚠
Before starting installation:
• Any emergency cut off devices must be built into the fixed hard-wiring circuits and compliant with the cabling regulations
• Means for disconnections must be incorporated in the fixed wiring in accordance with the wiring rules;
• Prepare suitable piping and ducts for routing the electrical cables, ensuring protection against mechanical damage;
• Prepare a drain pipe to prevent stagnation that may cause oxidation;
•
Make sure that any connections within the container (made to ensure the continuity of the protection circuit) are fitted with additional insulation compared to
the other internal conductor parts;
• Make sure the gate structure is sturdy enough, that the hinges are in proper working order and that there is no friction between the moving and fixed parts;
• Make sure there are opening and closing mechanical stops.
Tools and materials
Make sure you have all the tools and materials you will need for the installation at hand to work in total safety and compliance with current standards and regulations.

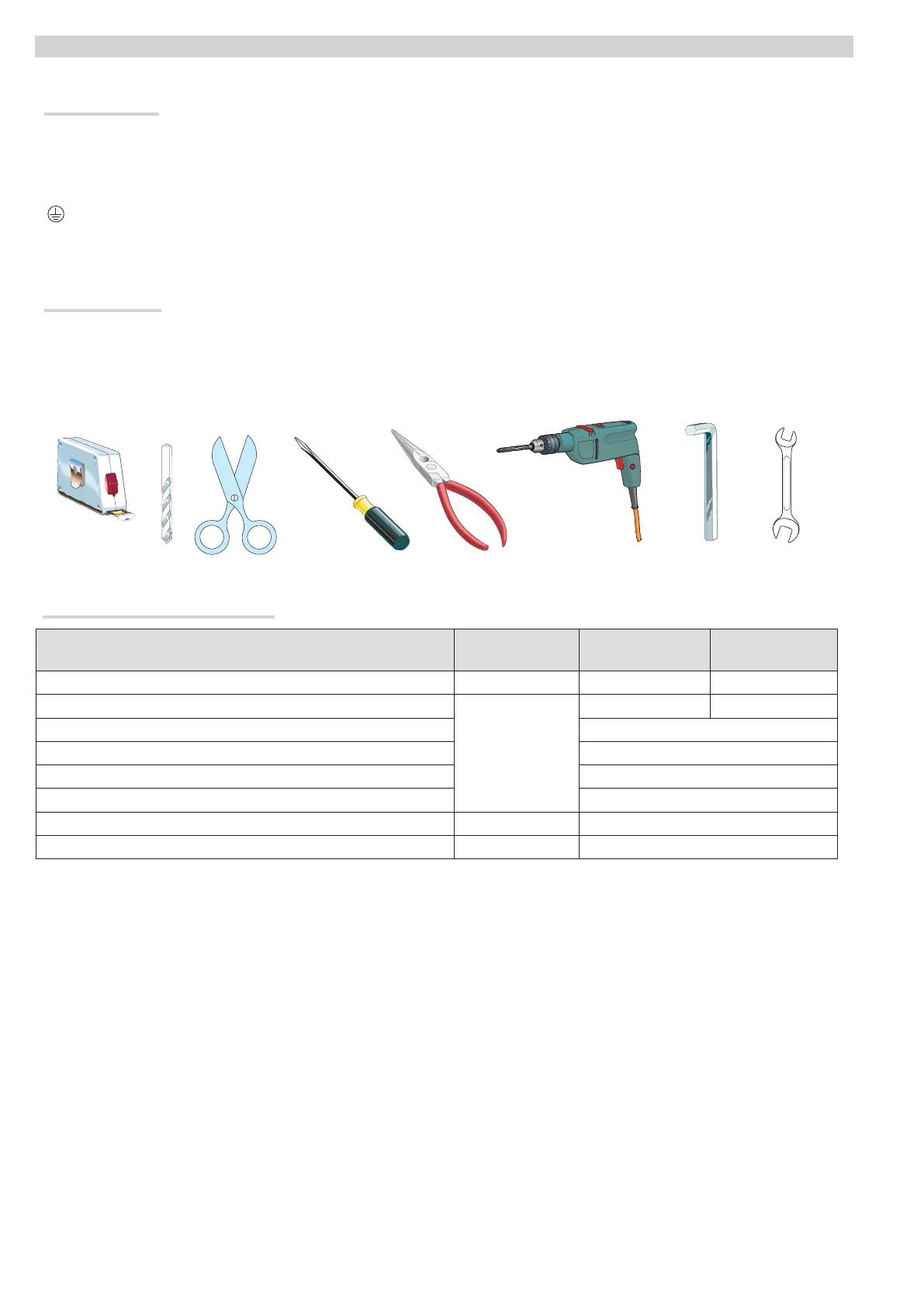

The figure shows some examples of installer’s tools.
Cable types and minimum thicknesses
Connection Tipo cavo
Cable length
1 < 15 m
Cable length
15 < 30 m
Control panel power supply 230 V AC H05RN-F 3G x 1,5 mm
2
3G x 2,5 mm
2
Motor/encoder power supply 24 V DC
FROR CEI 20-22
CEI EN
50267-2-1
3 x 1,5 mm
2
3 x 2,5 mm
2
Flashing light 2 x 0,5 mm
2
Photocell transmitters 2 x 0,5 mm
2
Photocell receivers 4 x 0,5 mm
2
Command and safety device 2 x 0,5 mm
2
Antenna the RG58 antenna max 10 m
Came Remote Protocol (CRP) UTP CAT5 max 1000 m
If cable lengths di er from those specifi ed in the table, establish the cable sections depending on the actual power draw of the connected
devices and according to the provisions of regulation CEI EN 60204-1.
For multiple, sequential loads along the same line, the dimensions on the table need to be recalculated according to the actual power draw and
distances. For connecting products that are not contemplated in this manual, see the literature accompanying said products.
