DESCRIPTION
The operator consists of die cast aluminium casing with an irreversible worm screw inside and a plastic ABS cover which houses the control board. With arms,
brackets and mechanical end stops.
Intended use
The operator has been designed and built by CAME S.p.A. in compliance with current safety standards to motorise swing gates for residential or condominium use.
Any installation and operation that differs from what is set out in this manual is prohibited.
Limits of use
Type FA4024CB
Max. leaf length (m) 2,3 2 1,5 1
Max. leaf weight (kg) 200 215 250 300
Technical data
Type FA4024CB
Protection rating (IP) 54
Power supply (V - 50/60 Hz) 230 AC
Motor power supply (V - 50/60 Hz) 24 DC
Power draw (A) 11 max.
Power (W) 140
Torque (Nm) 180 max.
Opening time to 90° (sec) ADJUSTABLE
Duty cycle INTENSIVE USE
Operating temperature (°C) -20 - +55
Insulation class I
Weight (kg) 13,5

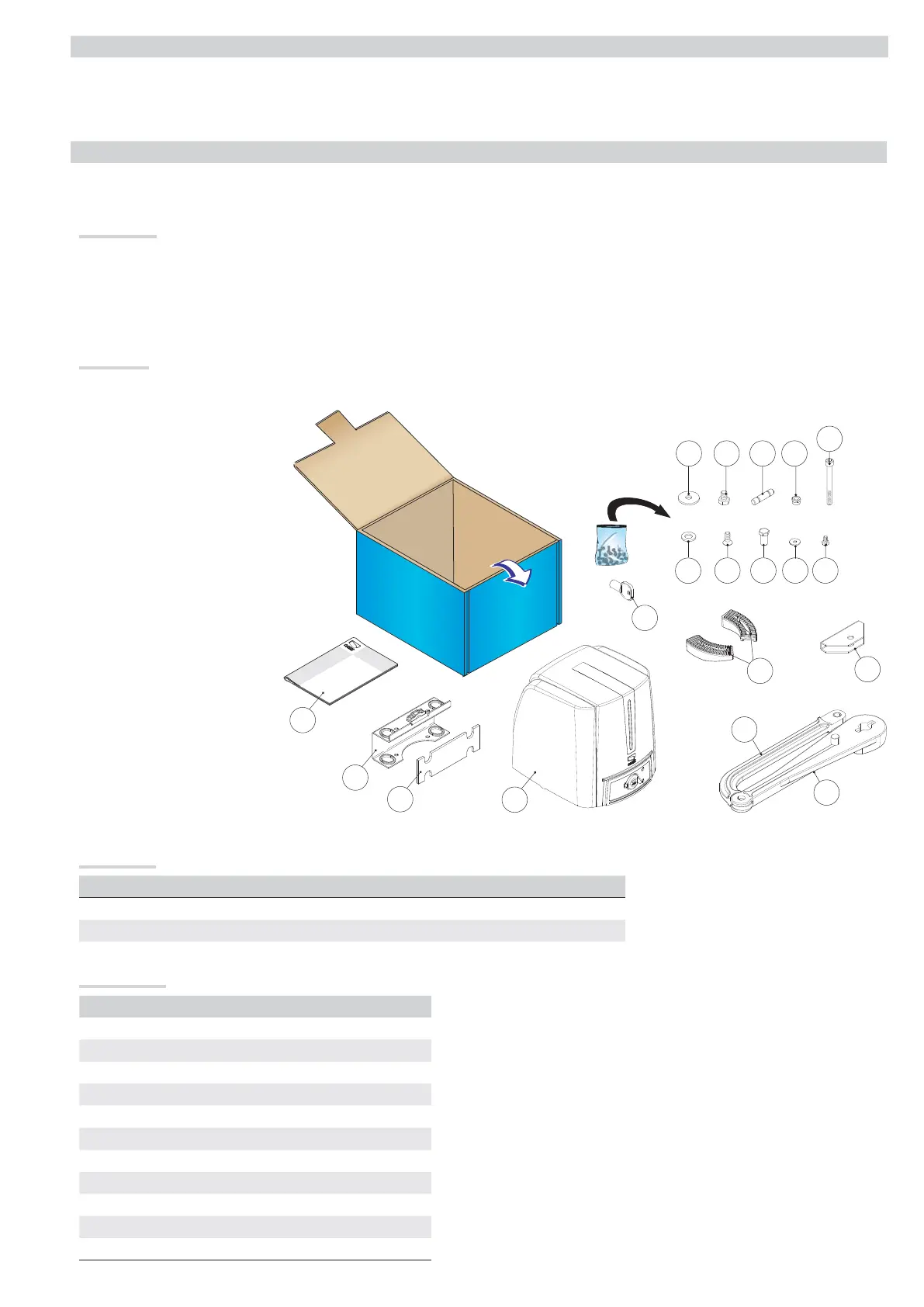

Packing list
1. 1 x operator
2. 1 x pillar bracket
3. 1 x rubber shim
4. 1 x transmission arm
5. 1 x driven arm
6. 1 x gate bracket
7. 2 x mechanical end runs
8. 1 x installation manual
9. 1 x washer for slow shaft
10. 1 x UNI5739 M10x14 screw
11. 1 x Ø10 plug
12. 2 x UNI7474 M8 nuts
13. 2 x UNI5739 M6x10 screws
14. 2 x UNI6957 2.9x19 screws
15. 2 x UNI6593 Ø6 washers
16. 2 x pins for arms
17. 2 x UNI5933 M8x20 screws
18. 1 x UNI6592 Ø12 washer
19. 2 x release keys
⚠
We suggest you always fi t an electrolock
onto swing gates for a more reliable closure.
