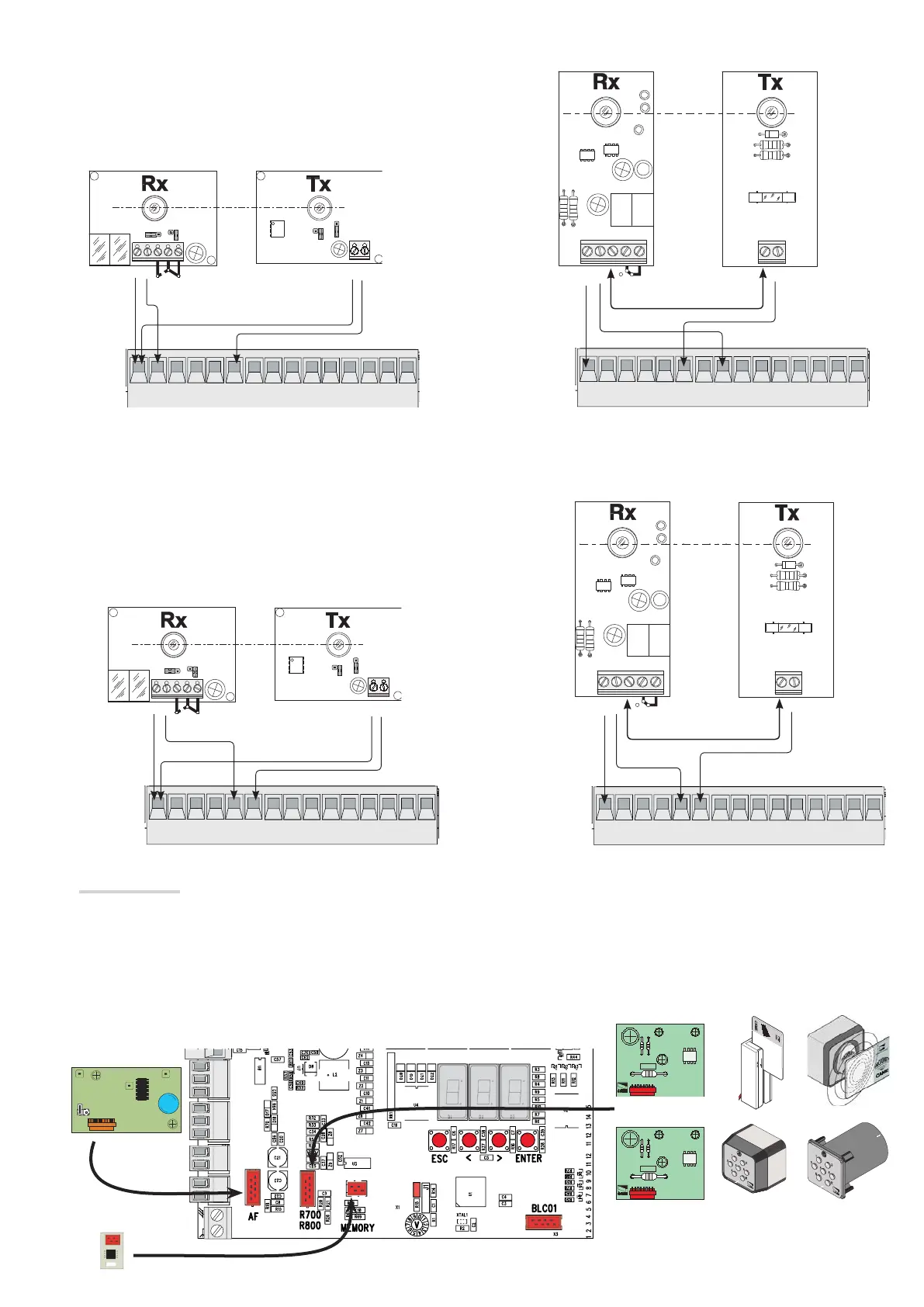

Photocell safety connection
With each opening or closing command, the panel checks that the photocells work. Any
anomaly inhibits any command.
Use the F 5 function to select on which inputs to activate the link.
Sleep Mode
The Sleep Mode function enables a reduction in photocell power in standby.
Select 1 using function F 60.
Memorising data
To enter, modify, and remove users or control the operator via radio, insert the AF card.
If using the transponder or the card reader, insert the R700 card. If using the keypad, on the other hand, insert the R800 card.
The memory roll is used to memorise user data and system configuration, which can then be used in another control board.
