CAME G4000 Installation Manual

Page 10 - Manual FA01560-EN - 02/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

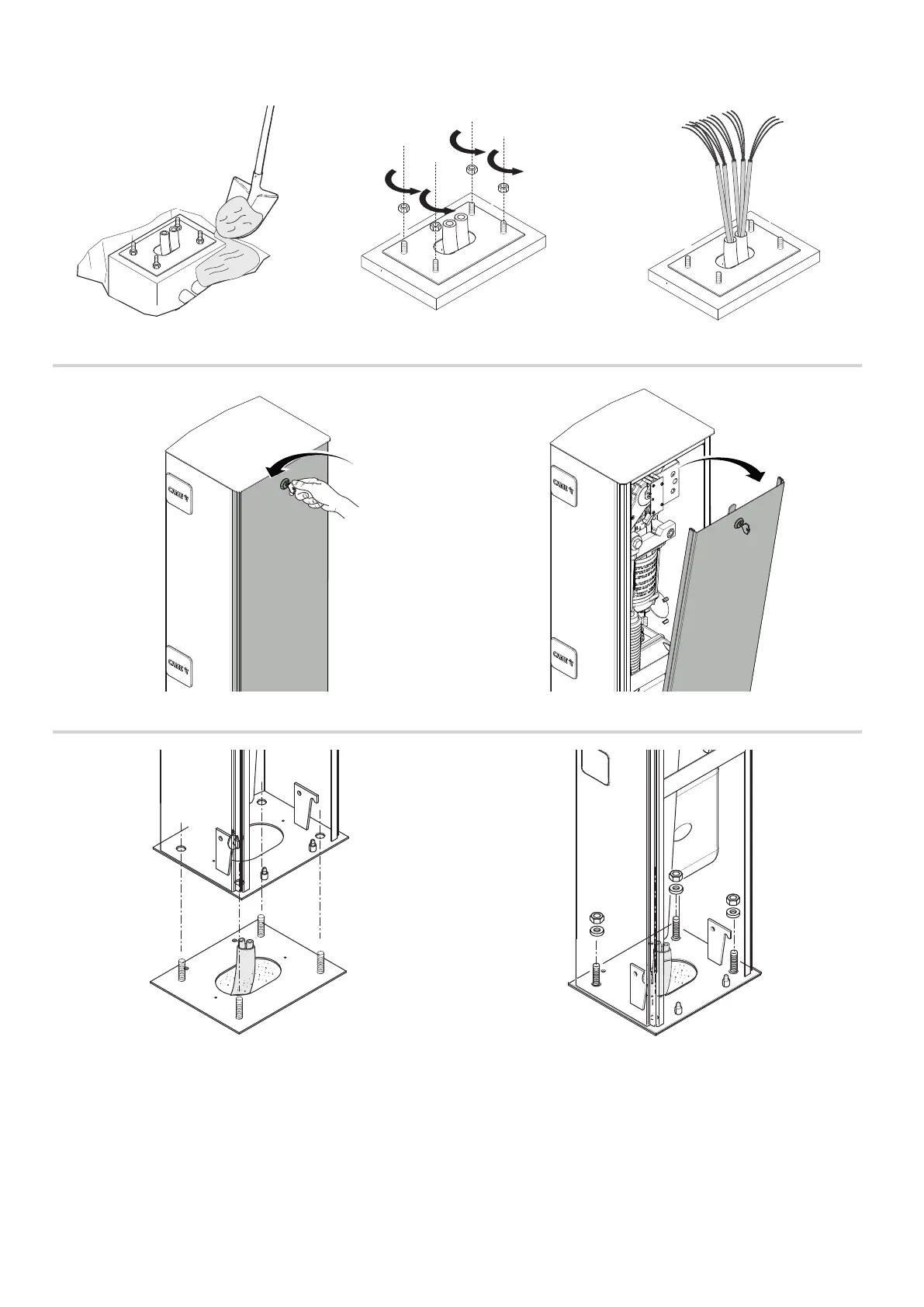

Fill the hole with soil around the concrete block.
Remove the nuts from the screws.
Insert the electrical cables into the tubes until they protrude by about 600 mm.
Preparing the barrier
Fastening the barrier

CAME G4000 Specifications

General

Model	G4000
Category	Control Systems
Max Gate Leaf Length	4 m
Power Supply	230 V AC
Motor Voltage	230 V AC
Protection Rating	IP54
Operating Voltage	230 V AC
Output Current	5 A
Operating Temperature	-20°C to +55°C
Weight	8.5 kg
Max Opening Angle	120°
