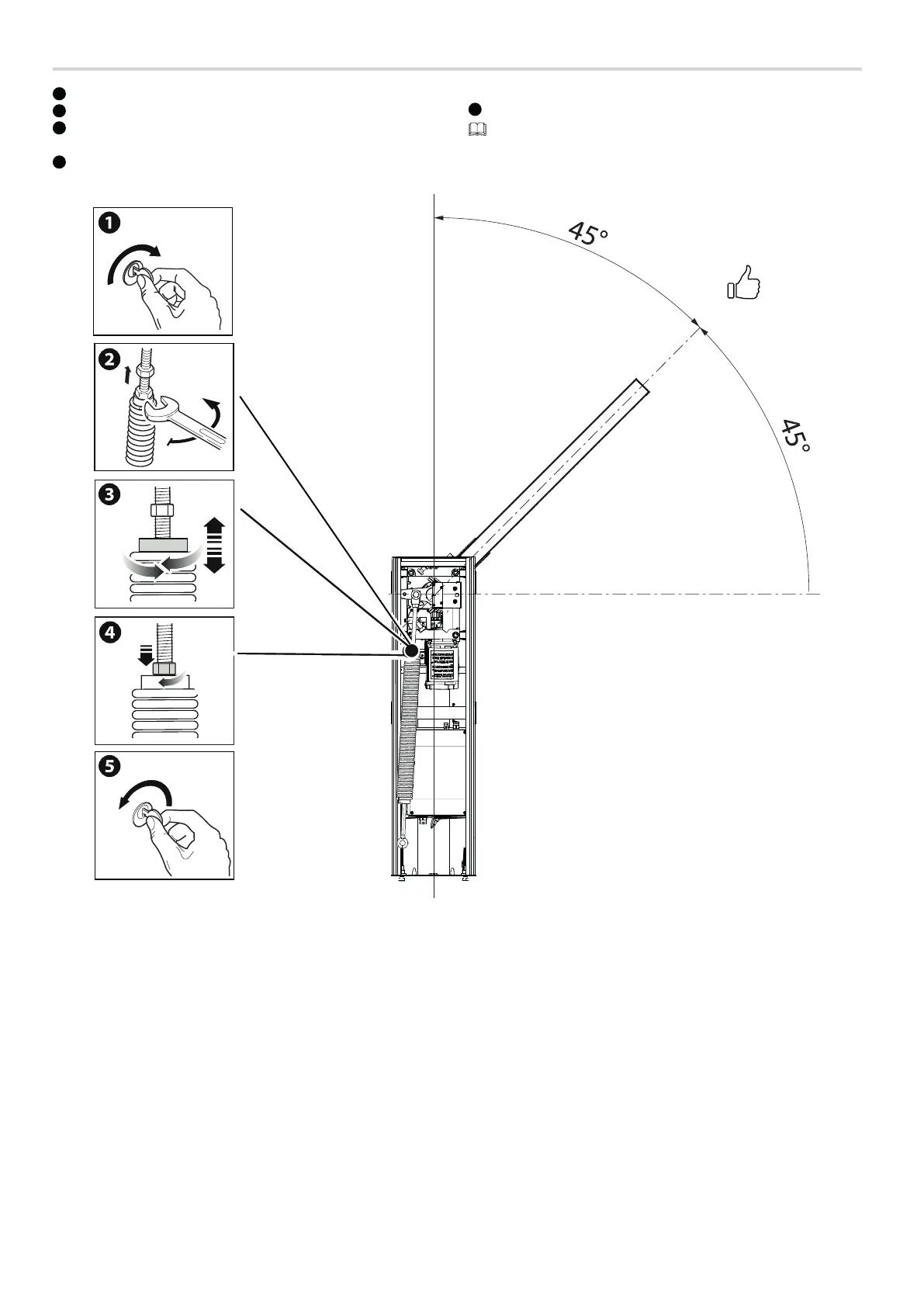

Balancing the boom
1
Release the gearmotor.
2
Loosen the clamping nut on the rod.
3
Manually turn the spring to increase or reduce the traction. The boom should
stabilise at 45°.
4
Fasten the locknut.
Position the boom vertically.
5
Lock the gearmotor
Check the proper working state of the spring. When the boom is vertical, the
spring is not taut. When the boom is horizontal, the spring is taut.
4
