CAME G4000 Installation Manual

Page 13 - Manual FA01560-EN - 02/2023 - © CAME S.p.A. - The contents of this manual may be changed at any time and without notice. - Translation of the original instructions

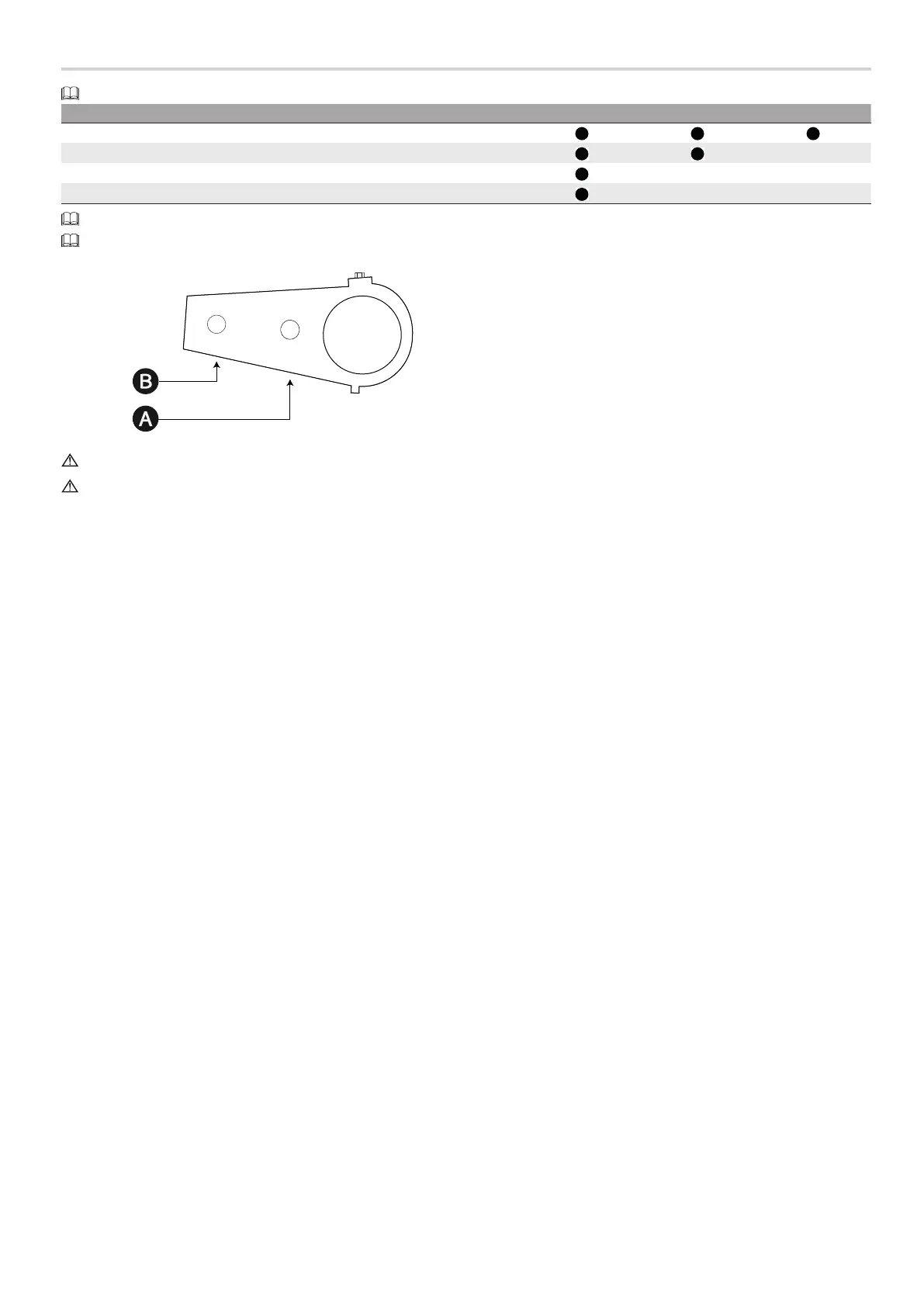

Choosing the hole for fixing the balance spring
The barrier is supplied as standard with the spring fitted in position B.
Passage width clearance (m) < 2,5 2,5 < 3,5 3,75 < 4,00
Boom
A A B
Boom with warning lights (001G0460)
A B
-
Boom with warning lights and skirt (001G0460)
B
--
Boom with warning lights and swing rest (001G02808)
B
--
Simple boom means the boom complete with slot cover, cap and rubber profile.
If the passage is wider than 3 m, you must use a support for the boom (fixed or mobile).
The fixed rest (001G02807) must be used for passage clearance widths exceeding 3 metres.
The swing rest 001G02808 and the skirt 001G0465 cannot be used together.
