Boom installation

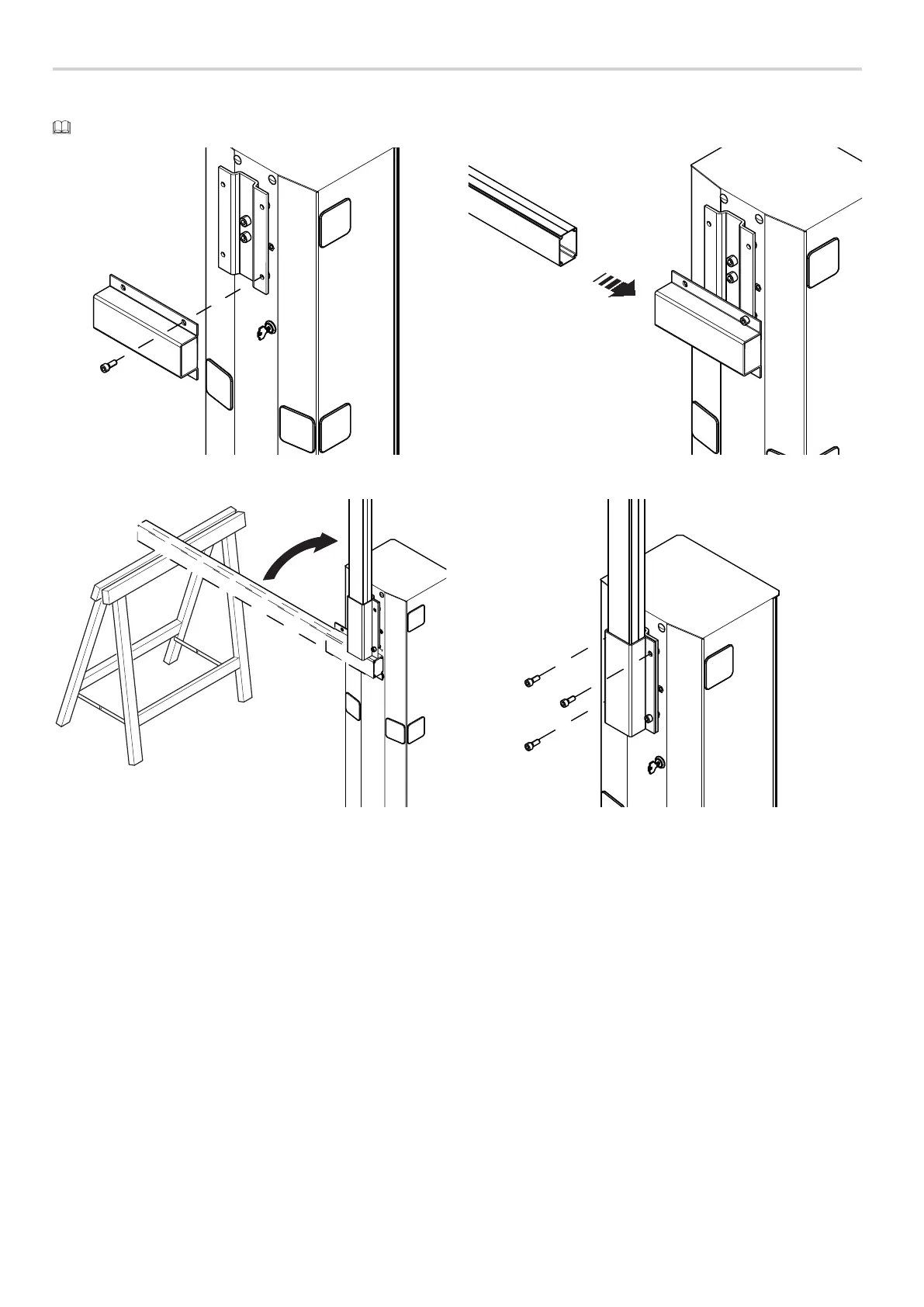

Install the boom-attachment cover on the anchoring plate with one screw only.
Leave the screw slightly loose to make it easier to fit the boom later.
First install the LED strip (where applicable), ONLY THEN fix the flange and the intermediate plate.
Position the boom vertically and fix it in place using the remaining screws.
