0.2 03/2010 © CAME cancelli automatici s.p.a. - The data and information reported in this installation manual are susceptible to change at any time and without obligation on CAME cancelli automatici s.p.a. to notify users.
ENGLISH

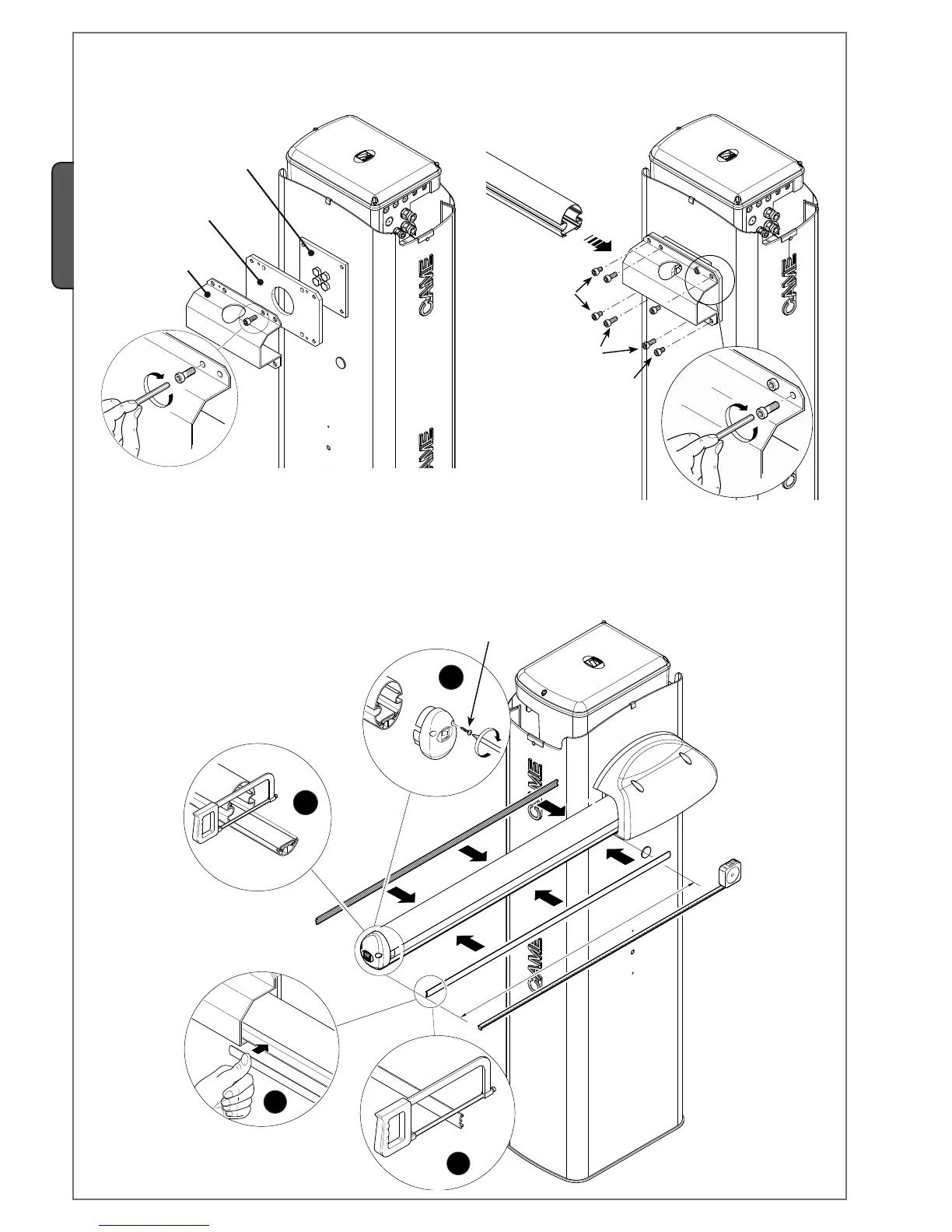

- Measure the length of the bar, cut the bar slot to the same length and insert it in the bar’s conduit, a procedure that should be carried out on both sides.
Insert the shock-resistant profile and cut excess length. Lastly, secure the bar end plug with the screws provided.
- Position the middle plate between the fitting plate and the bar-fitting cover,
and put in one UNI 5931 M8x20 screw without tightening it to facilitate bar
assembly.
- Insert the bar in the fitting cover and secure it with UNI 5931 M8x20 and
M8x12 screws.
Bar beam plate
Bar fi tting intermediate plate
Bar fi tting cover
